Rear Cross Traffic Alert (UFG) and Side Object Detection (UFT)

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

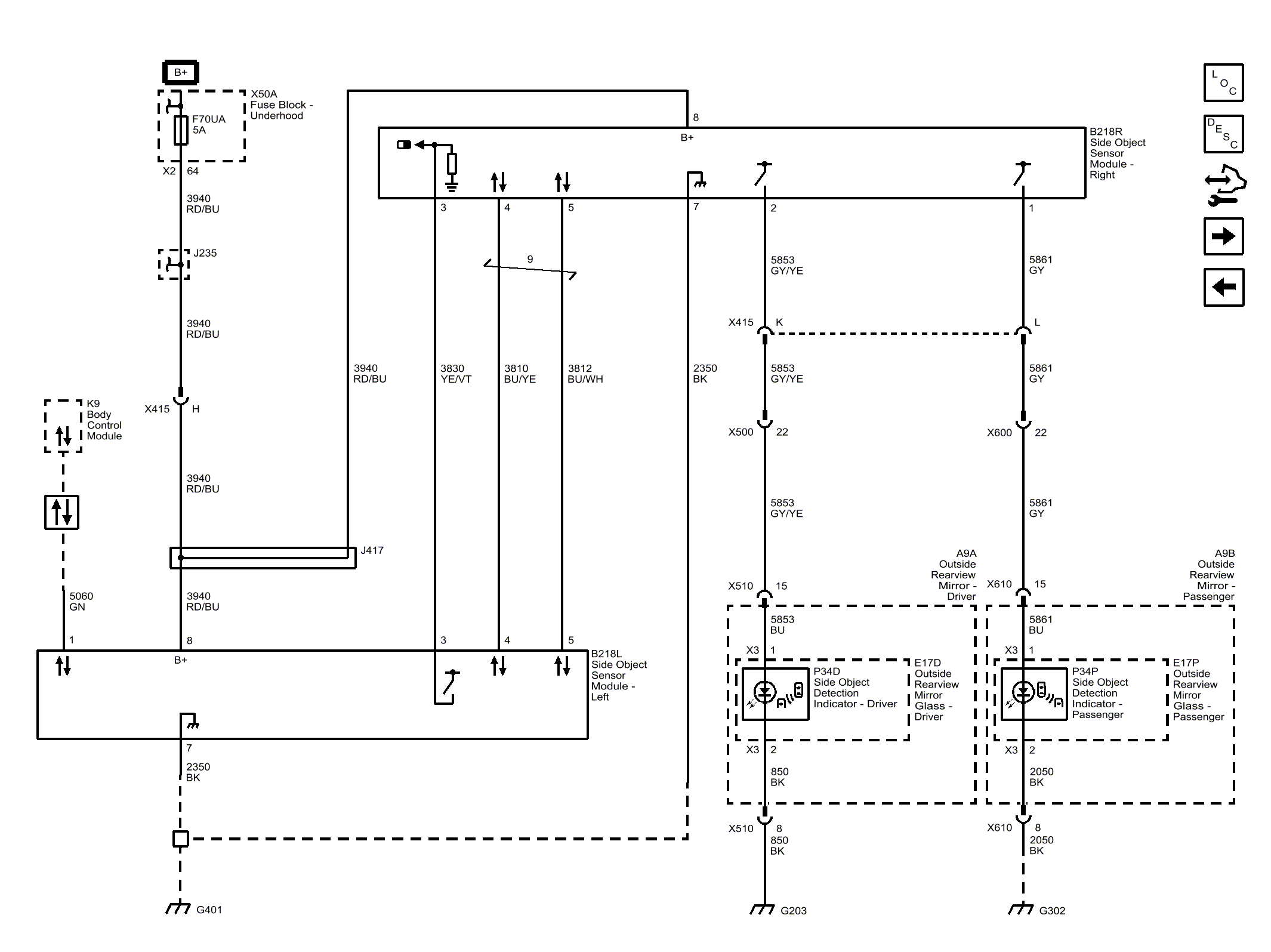

Fig 1: Rear Cross Traffic Alert (UFG) and Side Object Detection (UFT)
GM4080174Courtesy of GENERAL MOTORS COMPANY
