Steering Column Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

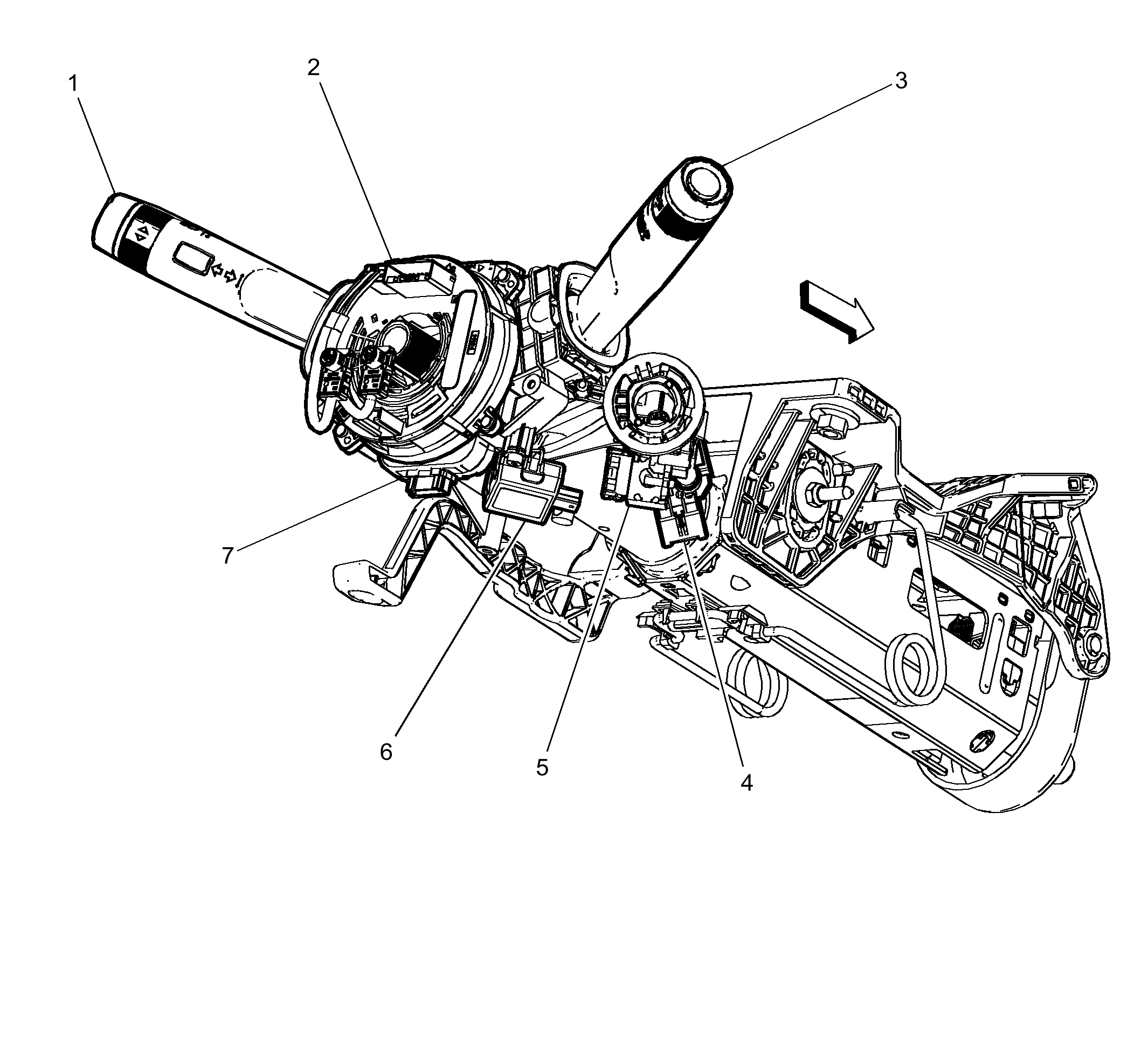

Steering Column Components
| Items |
|---|
| 1. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 2. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3 |
| 3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 4. S39 Ignition Switch S39 Ignition Switch |
| 5. M93 Key Capture Solenoid Actuator M93 Key Capture Solenoid Actuator (VRI) |
| 6. K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 7. B99 Steering Wheel Angle Sensor (FX3) B99 Steering Wheel Angle Sensor |
