Rear of Instrument Panel Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

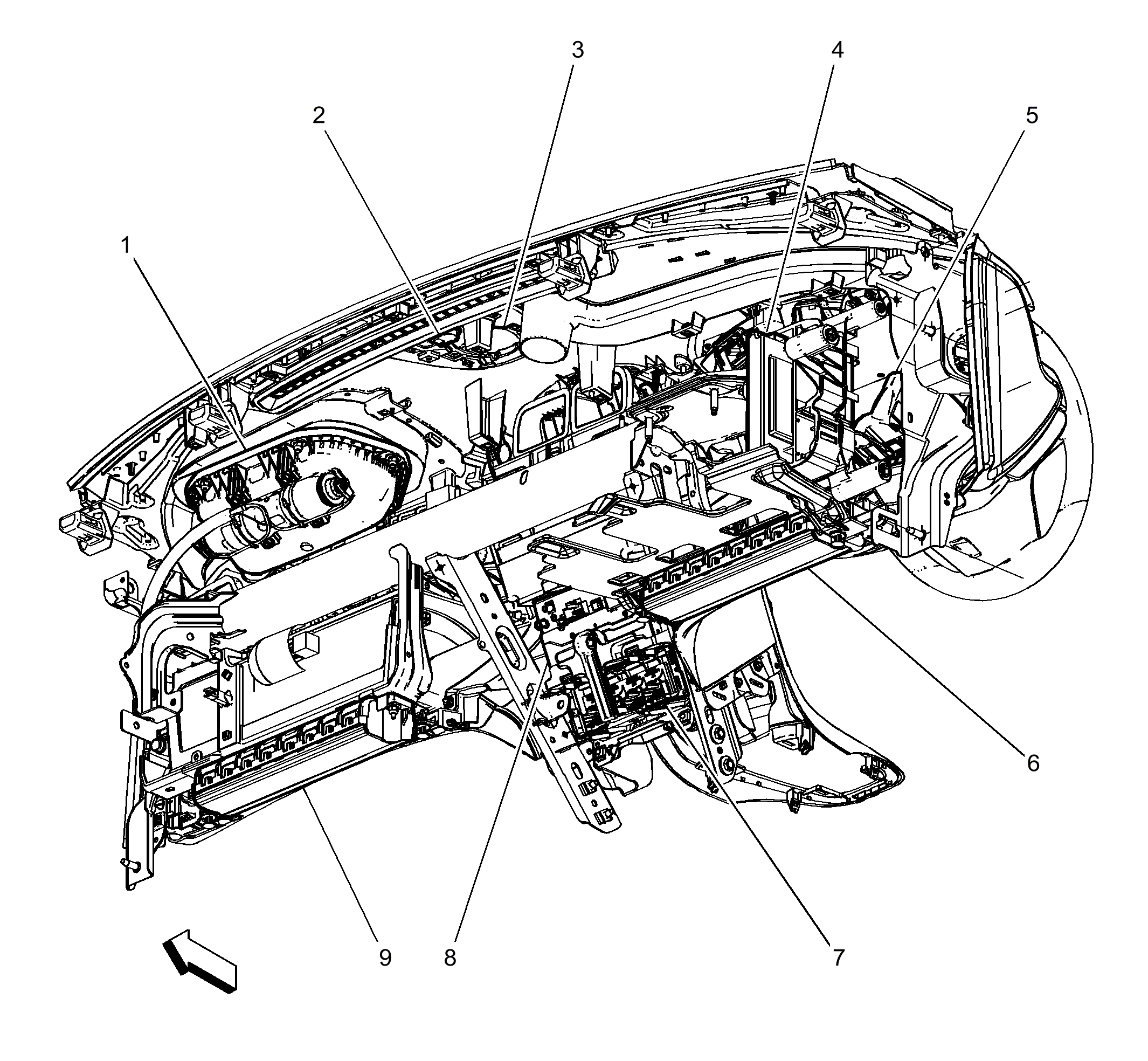

Rear of Instrument Panel Components
| Items |
|---|
| 1. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 2. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 3. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA) |
| 4. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 5. X51A Fuse Block - Instrument Panel |
| 6. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver |
| 7. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3K33 HVAC Control Module X4 (CJ2) |
| 8. A11 Radio A11 Radio X1A11 Radio X10A11 Radio X4A11 Radio X5 (UFU or UHQ)A11 Radio X7A11 Radio X8 |
| 9. F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger |
