HVAC Module Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

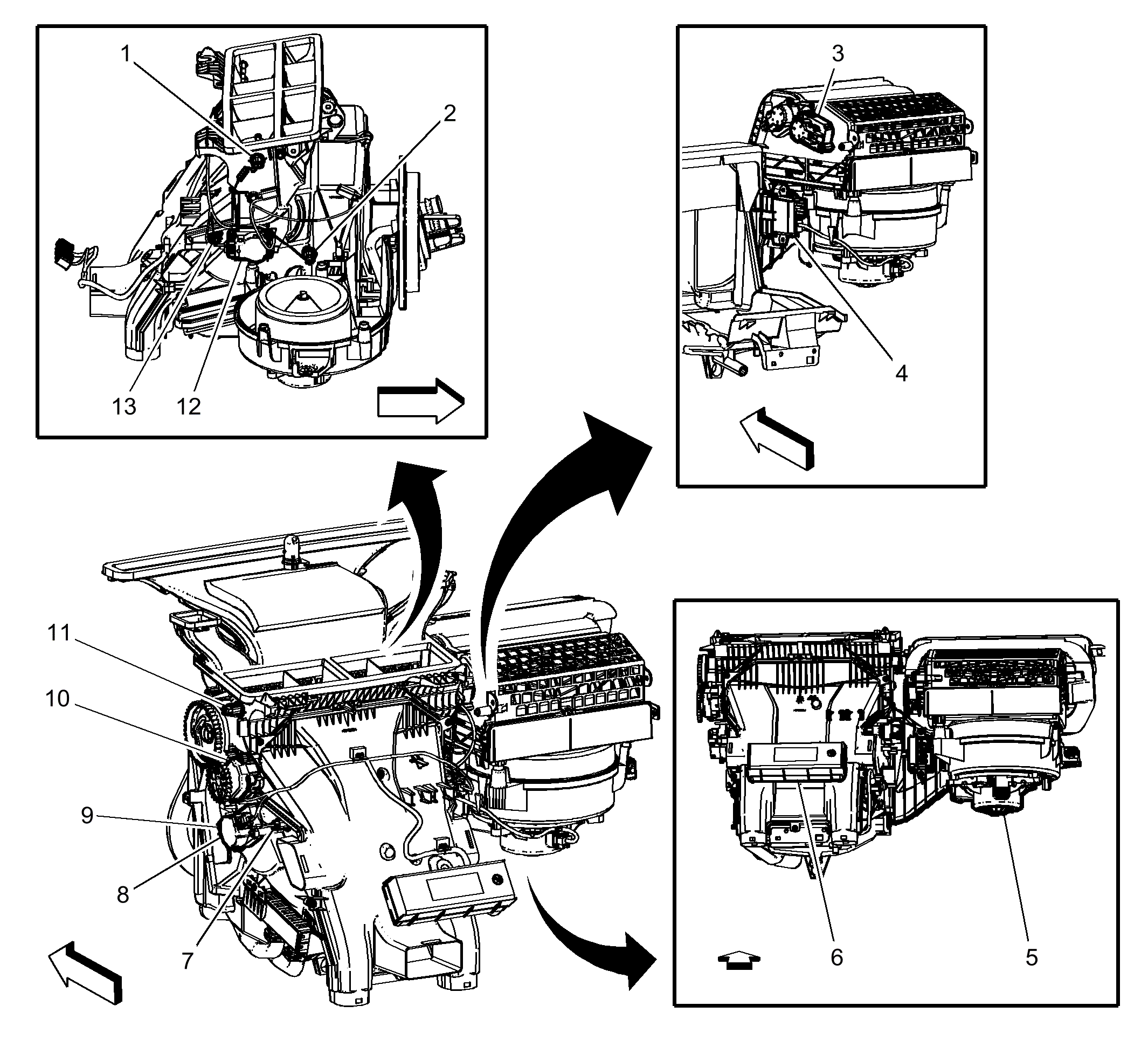

HVAC Module Components
| Items |
|---|
| 1. B7J Air Temperature Sensor - Duct Right Upper (CJ2) B7J Air Temperature Sensor - Duct Right Upper (CJ2) |
| 2. B39 A/C Evaporator Temperature Sensor (C4P or CJ2) B39 A/C Evaporator Temperature Sensor |
| 3. M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 4. K8 Blower Motor Control Module K8 Blower Motor Control ModuleK8 Blower Motor Control Module X2 |
| 5. M8 Blower Motor M8 Blower Motor |
| 6. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3K33 HVAC Control Module X4 (CJ2) |
| 7. B7D Air Temperature Sensor - Duct Left Lower (C4P or CJ2) B7D Air Temperature Sensor - Duct Left Lower |
| 8. M6L Air Temperature Door Actuator - Left (CJ2) M6L Air Temperature Door Actuator - Left (CJ2) |
| 9. M6 Air Temperature Door Actuator (C4P) |
| 10. M37 Mode Door Actuator M37 Mode Door Actuator |
| 11. B7H Air Temperature Sensor - Duct Left Upper (C4P or CJ2) B7H Air Temperature Sensor - Duct Left Upper |
| 12. M6R Air Temperature Door Actuator - Right (CJ2) M6R Air Temperature Door Actuator - Right (CJ2) |
| 13. B7E Air Temperature Sensor - Duct Right Lower (CJ2) B7E Air Temperature Sensor - Duct Right Lower (CJ2) |
