Front of Instrument Panel Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

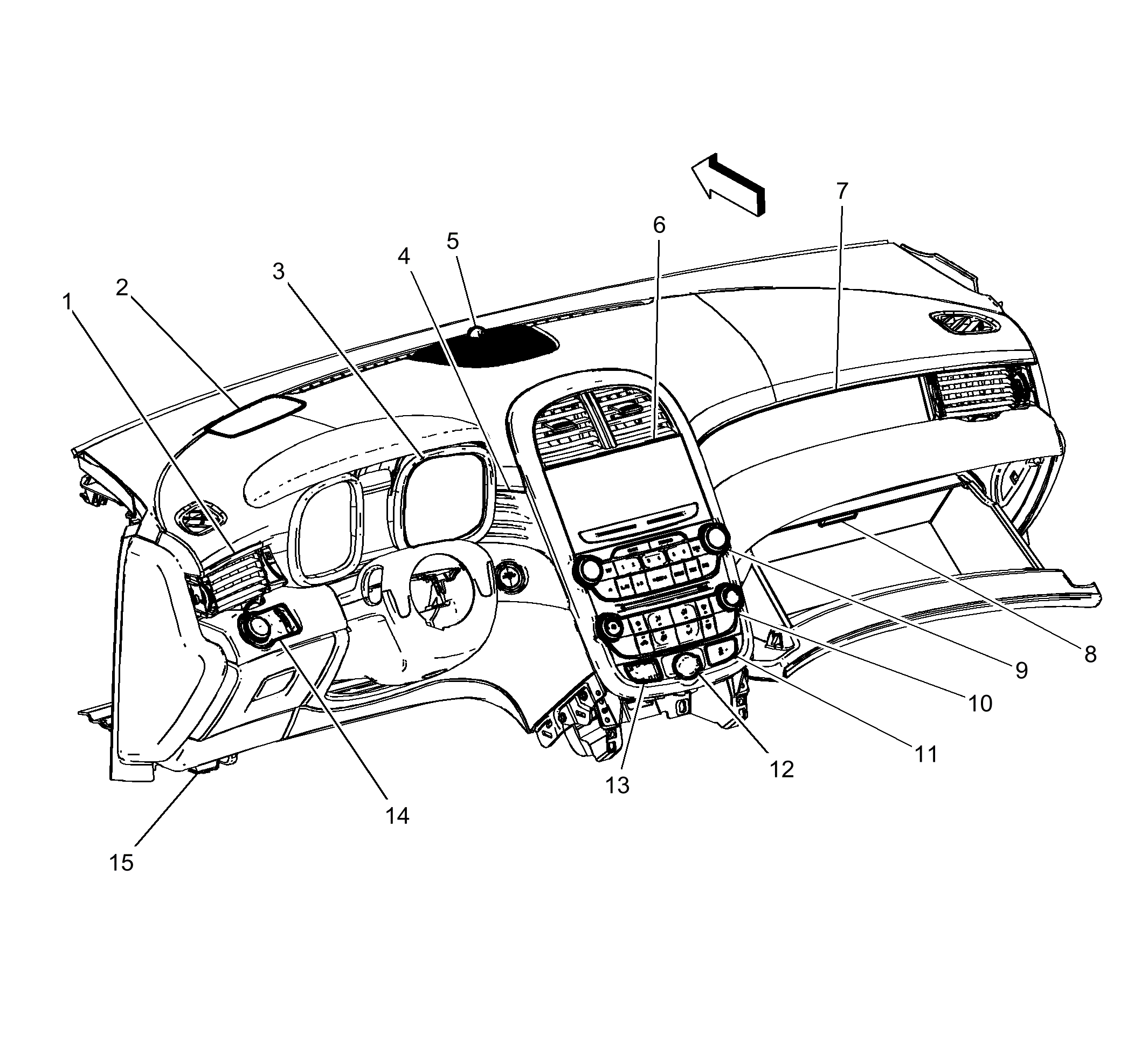

Front of Instrument Panel Components
| Items |
|---|
| 1. E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel |
| 2. P43 Collision Alert Indicators P43 Collision Alert Indicators (UEC) |
| 3. P16 Instrument Cluster P16 Instrument Cluster |
| 4. E1GA Accent Lamp - Left Middle Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel |
| 5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 6. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2 (UFU/UHQ) |
| 7. E1H Accent Lamp - Right Instrument Panel E1H Accent Lamp - Right Instrument Panel |
| 8. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 9. A22 Radio Controls A22 Radio Controls |
| 10. A26 HVAC Controls A26 HVAC Controls |
| 11. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 12. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 13. S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 14. S30 Headlamp Switch S30 Headlamp Switch |
| 15. X84 Data Link Connector X84 Data Link Connector |
