Floor Console Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Floor Console Components

Items
1. X83 Auxiliary Audio Input X83 Auxiliary Audio Input
2. B80 Park Brake Switch B80 Park Brake Switch
3. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator
4. S2 Transmission Manual Shift Switch S2 Transmission Manual Shift Switch
5. S3 Transmission Shift Lever S3 Transmission Shift Lever
6. T1 Accessory DC/AC Power Inverter Module (KI6) T1 Accessory DC/AC Power Inverter Module (KI6)
7. X80H Accessory Power Receptacle - Center Console (KPA) X80H Accessory Power Receptacle - Center Console
8. X81 Accessory Power Receptacle - 110V AC X81 Accessory Power Receptacle - 110V AC X1X81 Accessory Power Receptacle - 110V AC X2

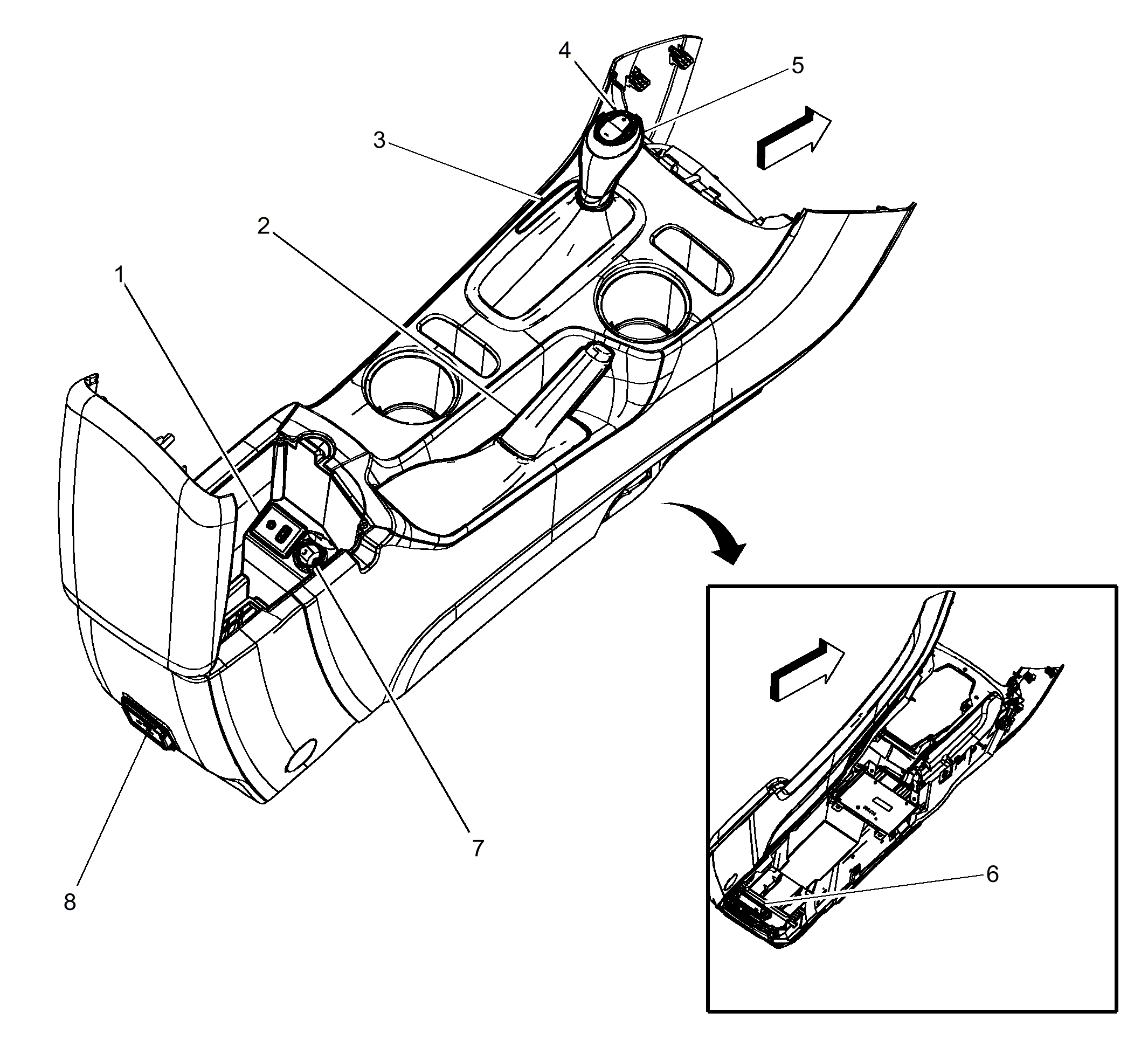

Fig 1: Floor Console Components
GM4224348Courtesy of GENERAL MOTORS COMPANY
