Behind Left Side of Instrument Panel Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

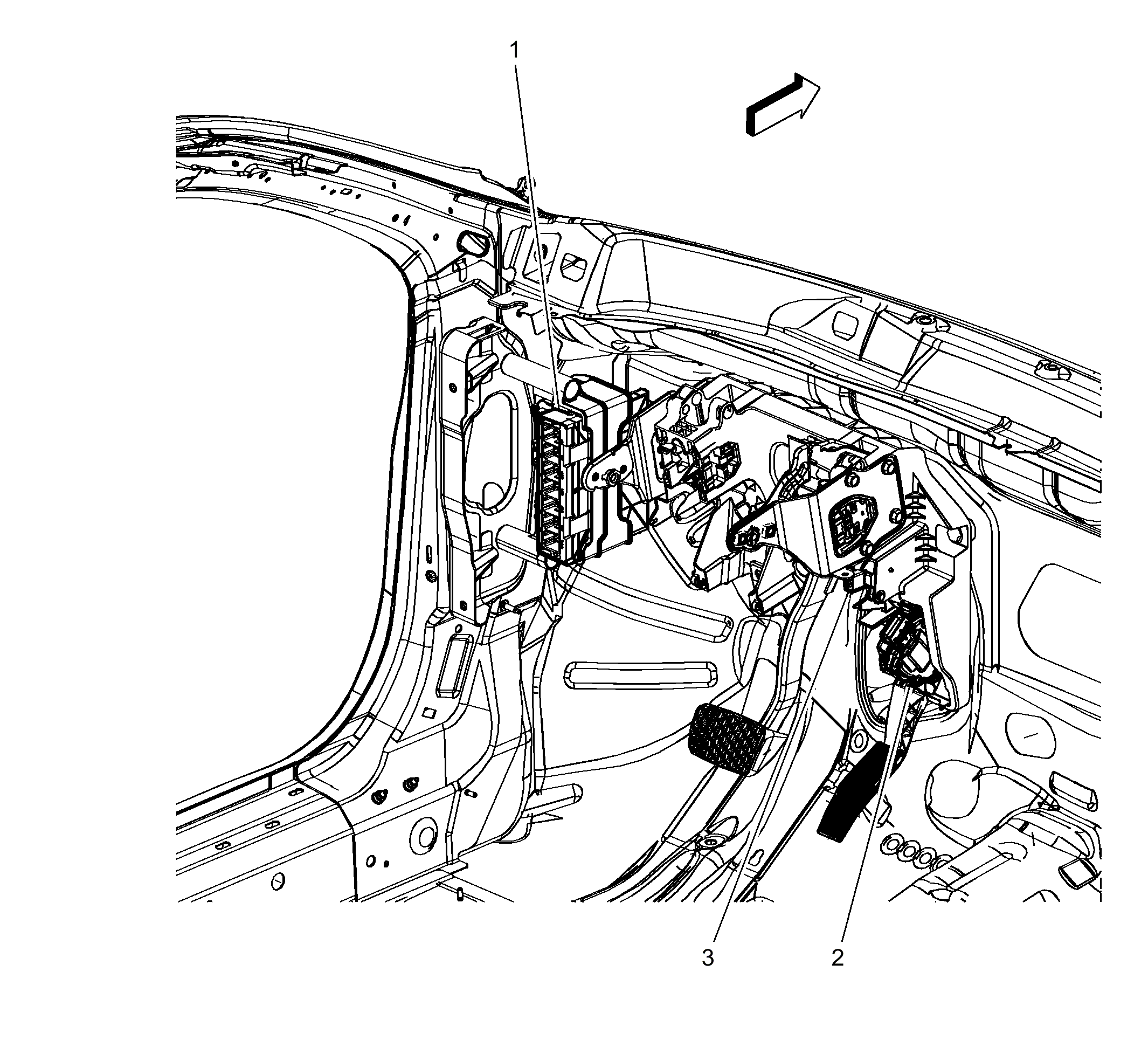

Behind Left Side of Instrument Panel Components
| Items |
|---|
| 1. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 3. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
