Rear Camber Adjustment

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

Remove and DISCARD the rear lower control arm bolt (1).
CAUTION: This bolt is designed to permanently stretch when tightened and therefore MUST be replaced anytime it is removed. The correct part number fastener must be used to replace this type of fastener. Do not use a bolt that is stronger in this application. If the correct bolt is not used, the parts will not be tightened correctly. The system or the components may be damaged.

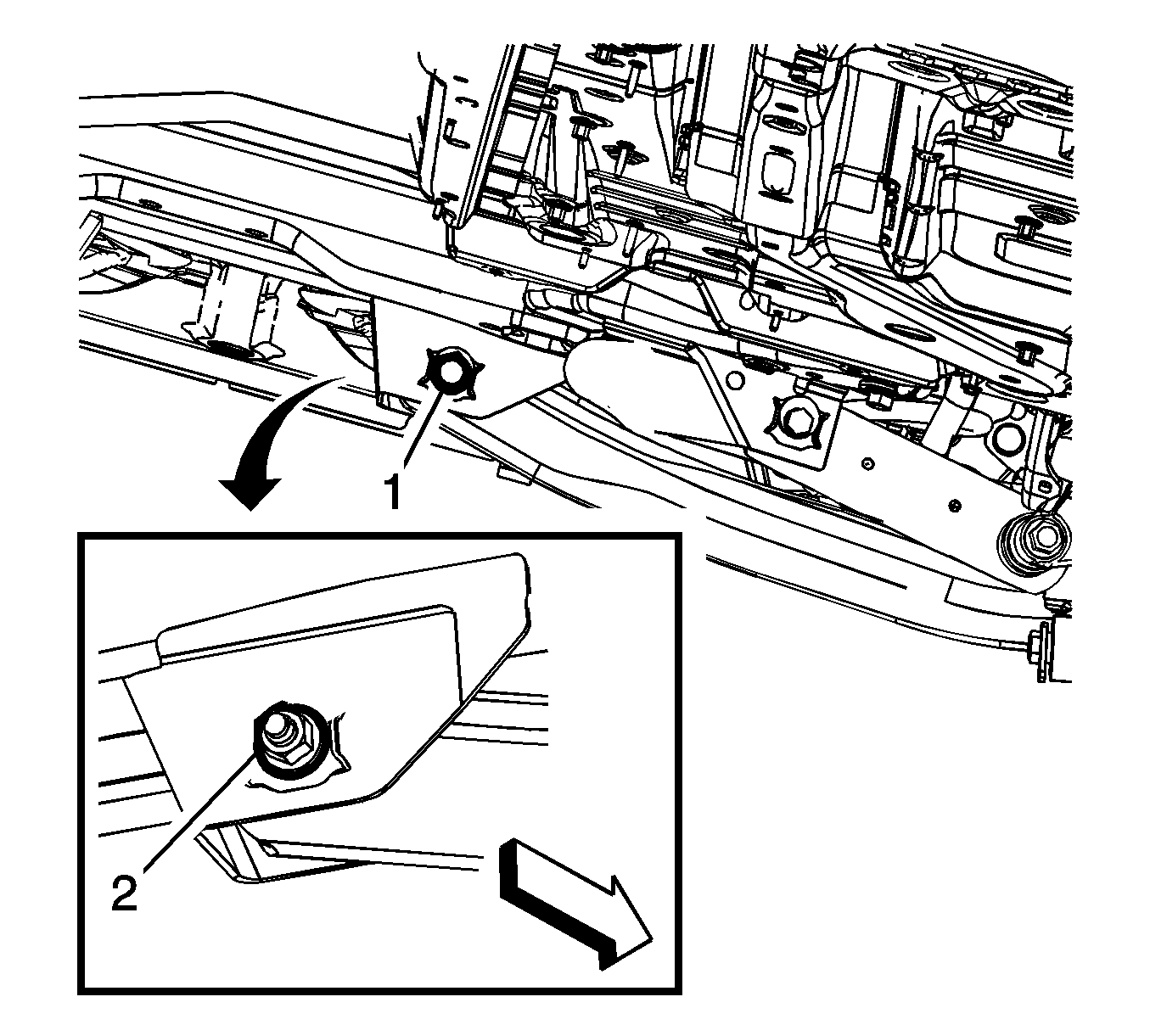

Fig 1: Rear Lower Control Arm Bolt
Courtesy of GENERAL MOTORS COMPANY
With the NEW rear lower control arm bolt (1) in place, rotate the rear lower control arm bolt (1) until the proper camber setting is achieved. Wheel Alignment Specifications
Verify the rear camber specifications and adjust as necessary.
Tighten the rear suspension link inner fastener. Refer to Lower Control Arm Replacement
CAUTION: Refer to Fastener Caution .

NOTE: Hold the rear suspension link inner fastener bolt while tightening the rear suspension link inner fastener nut.
