Instrument Panel Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

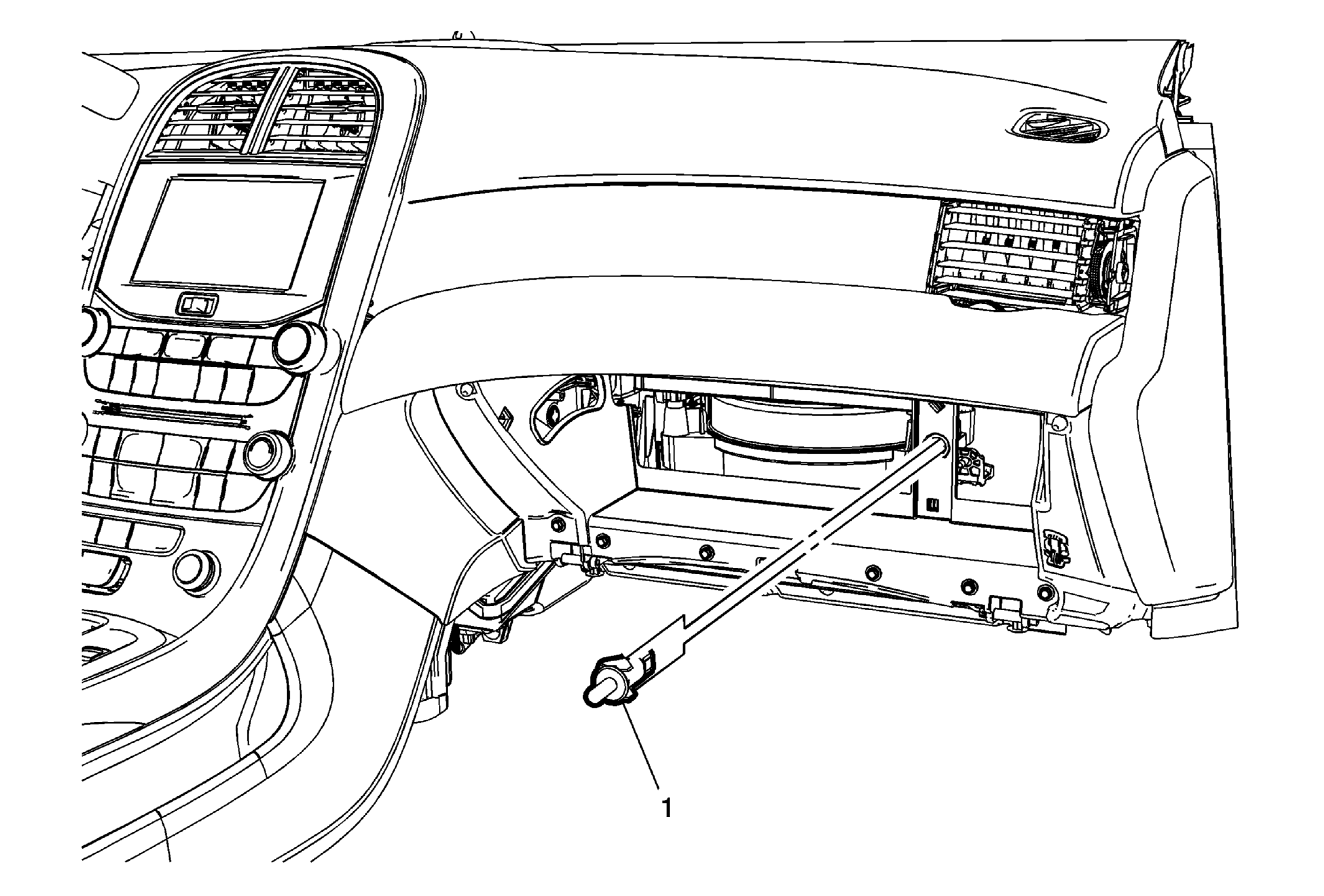

Fig 1: Instrument Panel Compartment Lamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment door. Refer to Instrument Panel Compartment Door Replacement .
1	Instrument Panel Compartment Lamp Switch Procedure Disconnect the electrical connector. Depress tabs to remove switch from the instrument panel compartment door opening frame.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel compartment door. Refer to Instrument Panel Compartment Door Replacement .

Instrument Panel Compartment Lamp Switch

Procedure

Disconnect the electrical connector.
Depress tabs to remove switch from the instrument panel compartment door opening frame.
