Headlamp Switch Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

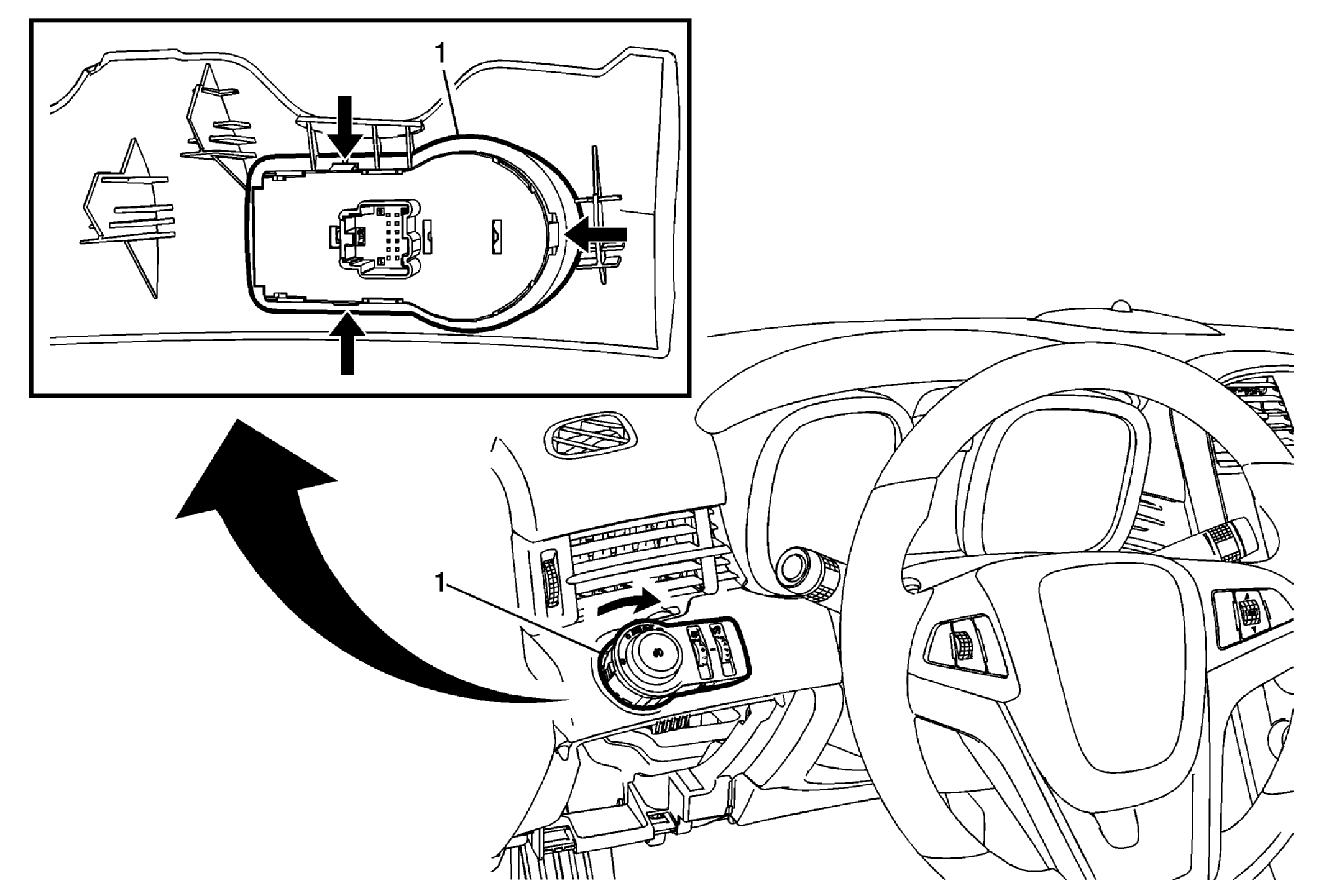

Fig 1: Headlamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel driver knee bolster pad. Refer to Instrument Panel Driver Knee Bolster Pad Replacement .
1	Headlamp Switch Assembly Procedure Disconnect the electrical connections. Release tabs on switch to remove from the panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel driver knee bolster pad. Refer to Instrument Panel Driver Knee Bolster Pad Replacement .

Headlamp Switch Assembly

Procedure

Disconnect the electrical connections.
Release tabs on switch to remove from the panel.
