Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

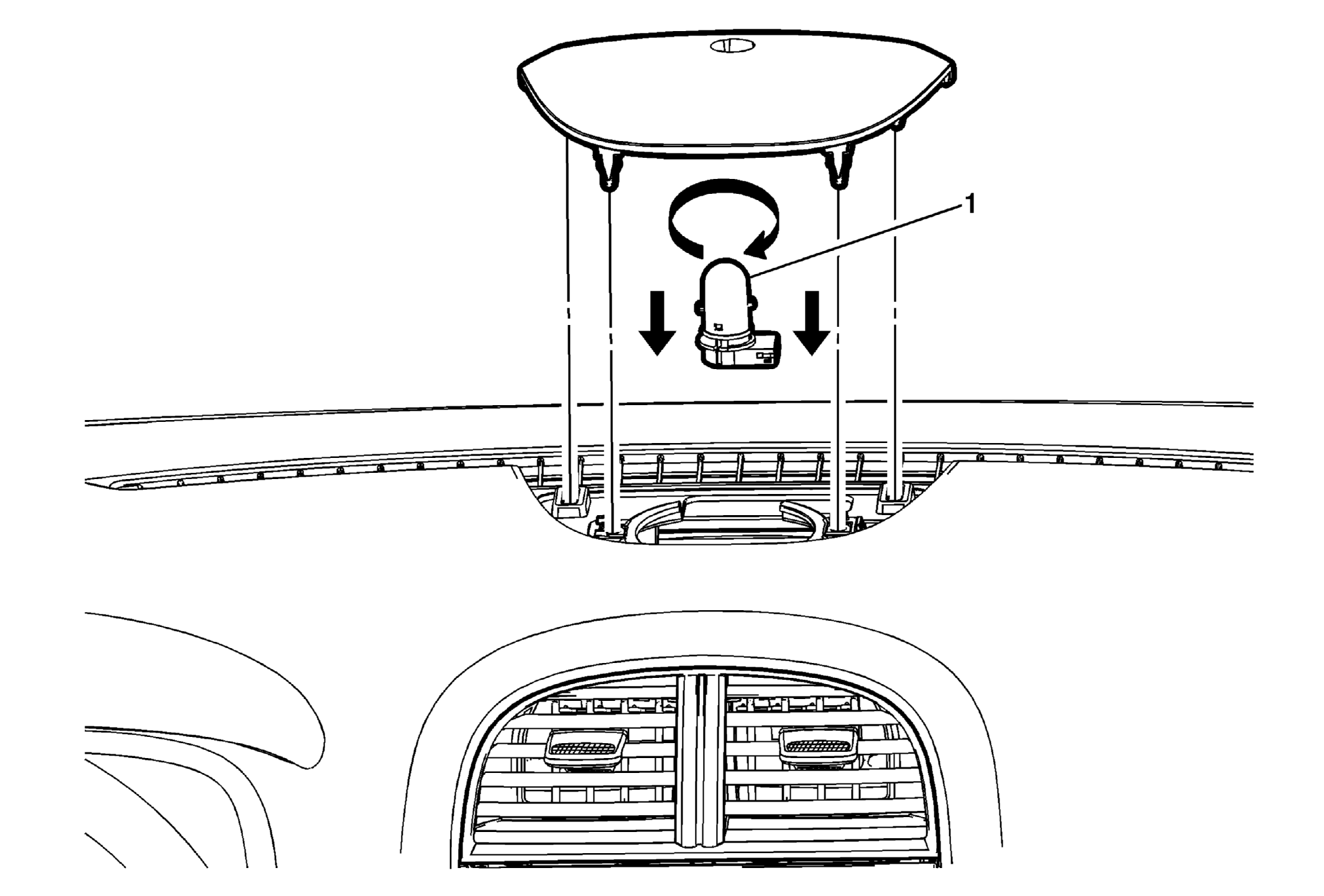

Fig 1: Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front radio speaker grille. Refer to Radio Front Speaker Grille Replacement .
1	Headlamp Automatic Control Ambient Light Sensor Procedure Disconnect the electrical connector. Twist the sensor counterclockwise to remove.

Callout

Component Name

Preliminary Procedure
Remove the front radio speaker grille. Refer to Radio Front Speaker Grille Replacement .

Headlamp Automatic Control Ambient Light Sensor

Procedure

Disconnect the electrical connector.
Twist the sensor counterclockwise to remove.
