Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Brake system does not use a brake switch, stoplight switch or brakelight switch. System uses a Brake Pedal Position Sensor to control these functions.

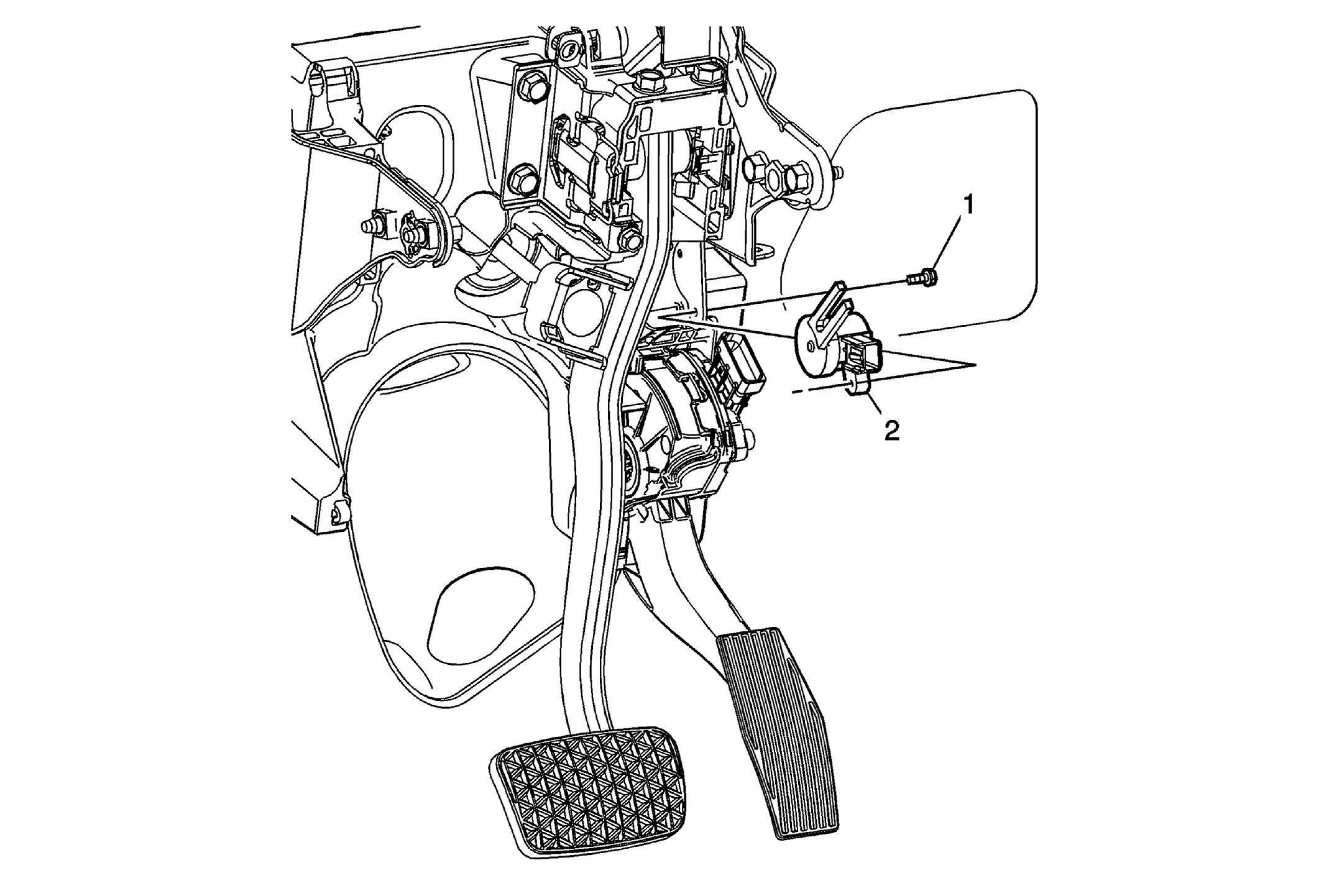

Fig 1: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Replacement .
1	Brake Pedal Position Sensor Bolt
2	Brake Pedal Position Sensor Procedure Disconnect the brake pedal position sensor electrical connector. After the installation is complete, calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Preliminary Procedure
Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Replacement .

Brake Pedal Position Sensor Bolt

Brake Pedal Position Sensor

Procedure

Disconnect the brake pedal position sensor electrical connector.
After the installation is complete, calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
