Stabilizer Shaft Link Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

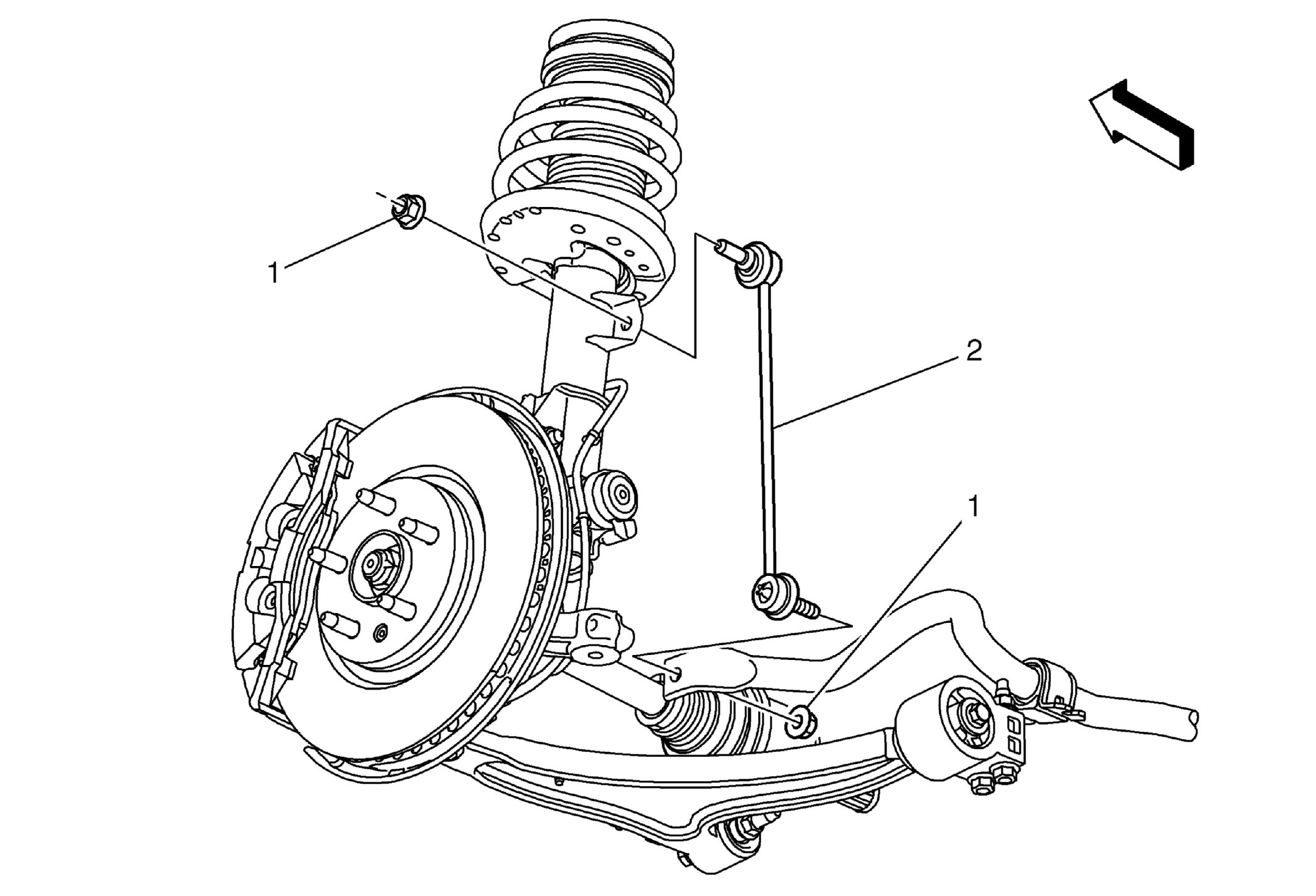

Fig 1: Stabilizer Shaft Link And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Remove and set aside any harnesses or retainers secured to the front stabilizer shaft link.
1	Front Stabilizer Shaft Link Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 65 N.m (48 lb ft)
2	Front Stabilizer Shaft Link

Callout

Component Name

Preliminary Procedures

Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Remove and set aside any harnesses or retainers secured to the front stabilizer shaft link.

Front Stabilizer Shaft Link Nut [2x]

CAUTION: Refer to Fastener Caution .

Tighten
65 N.m (48 lb ft)

Front Stabilizer Shaft Link
