Front Floor Console Armrest Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

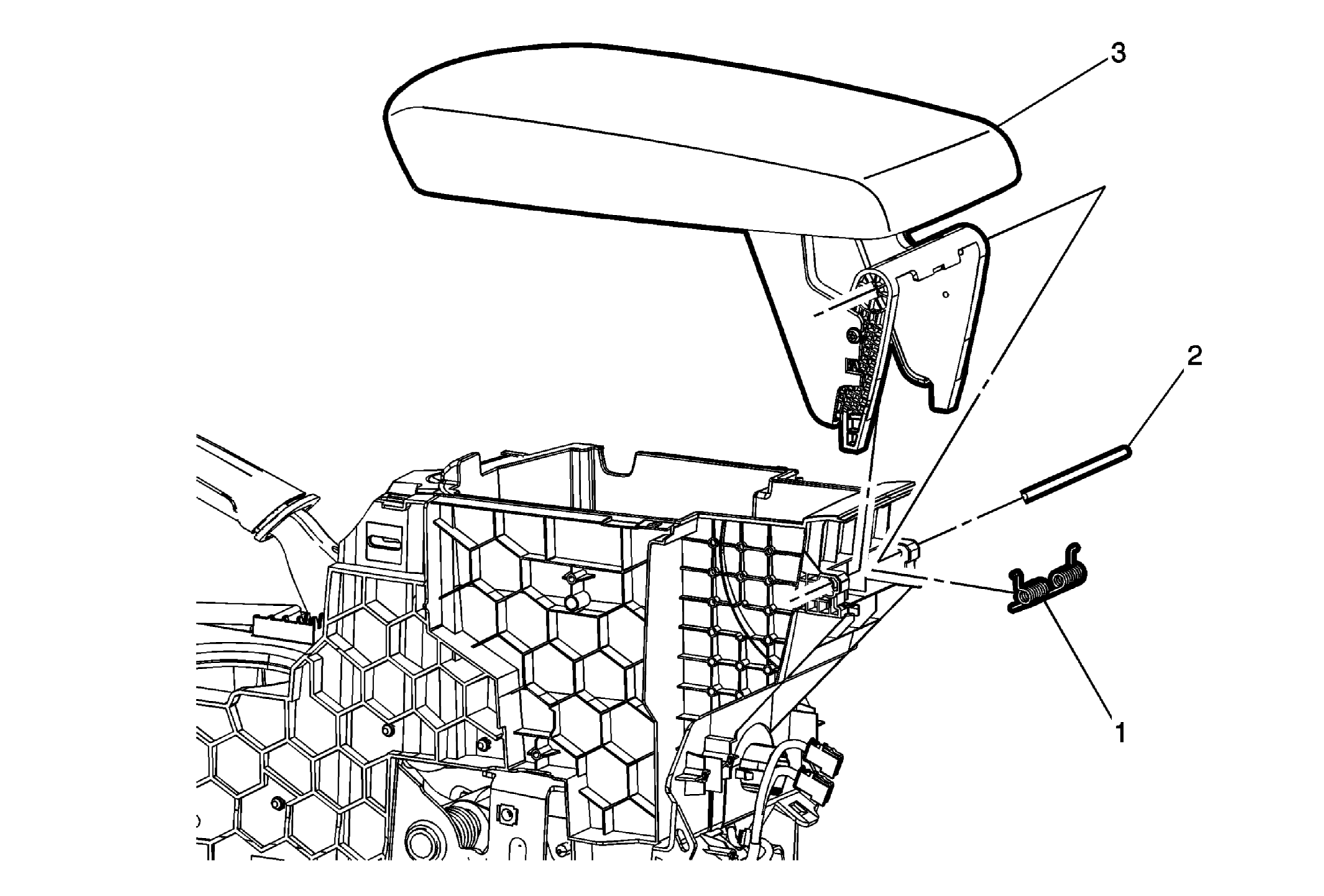

Fig 1: Front Floor Console Armrest, Pivot Pin & Door Spring

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right front floor console side trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side . Remove the left front floor console side trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Left Side .
1	Front Floor Console Armrest Door Spring Procedure Release the door springs from the pivot pin, releasing the armrest from the console assembly. Inspect the springs for wear or damage and replace if necessary. When replacing the springs ensure that the springs are secured to the armrest pivot pin.
2	Front Floor Console Armrest Pivot Pin Procedure Use a suitable tool to release the pivot pin from the armrest assembly.
3	Front Floor Console Armrest Assembly Procedure When replacing the front floor console armrest, transfer all necessary components.
