Linear Interconnect Network (LIN) Bus 6 and 7

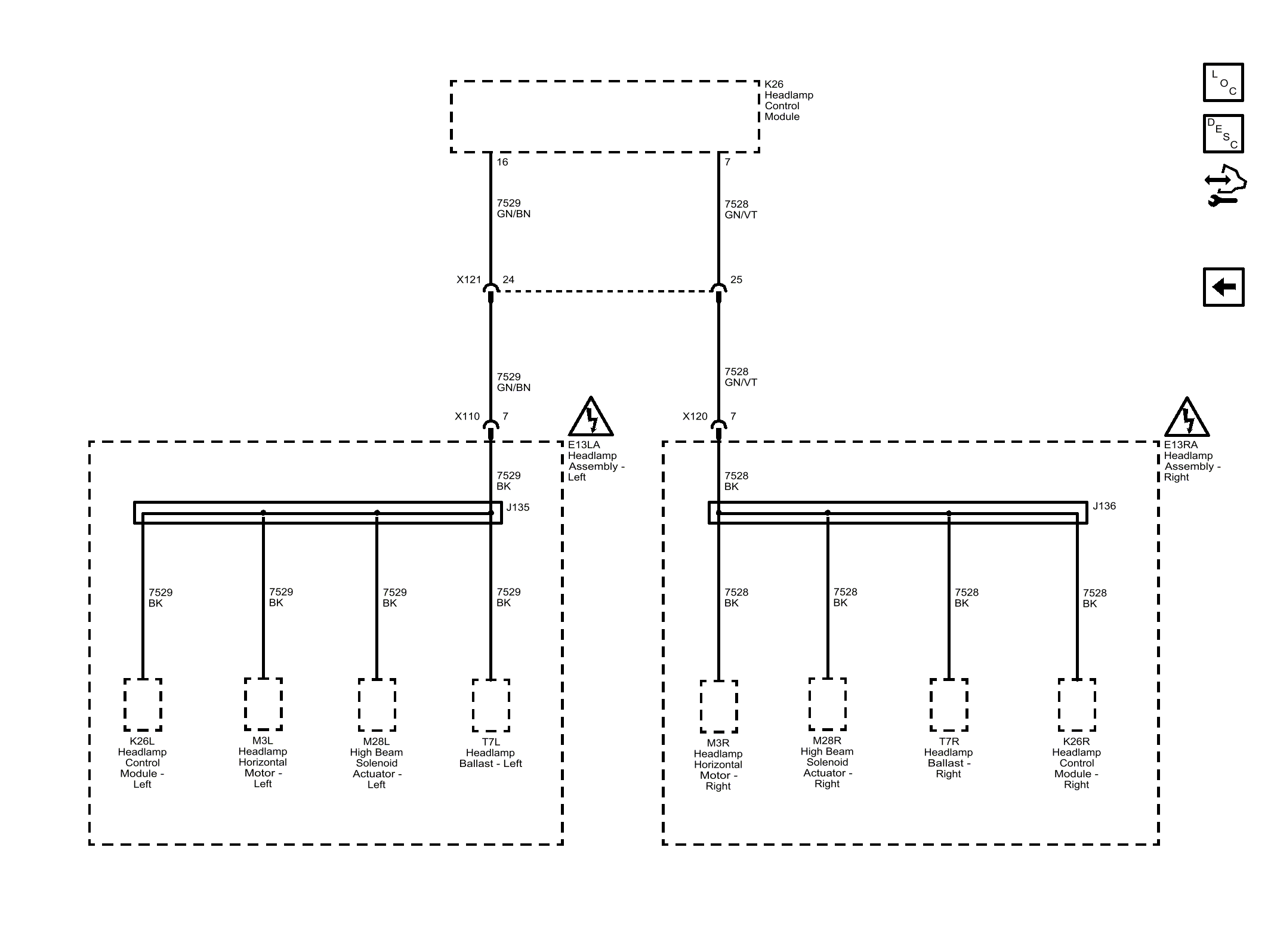

Fig 1: Linear Interconnect Network (LIN) Bus 6 and 7
GM4223195Courtesy of GENERAL MOTORS COMPANY
