Spark Plug Replacement

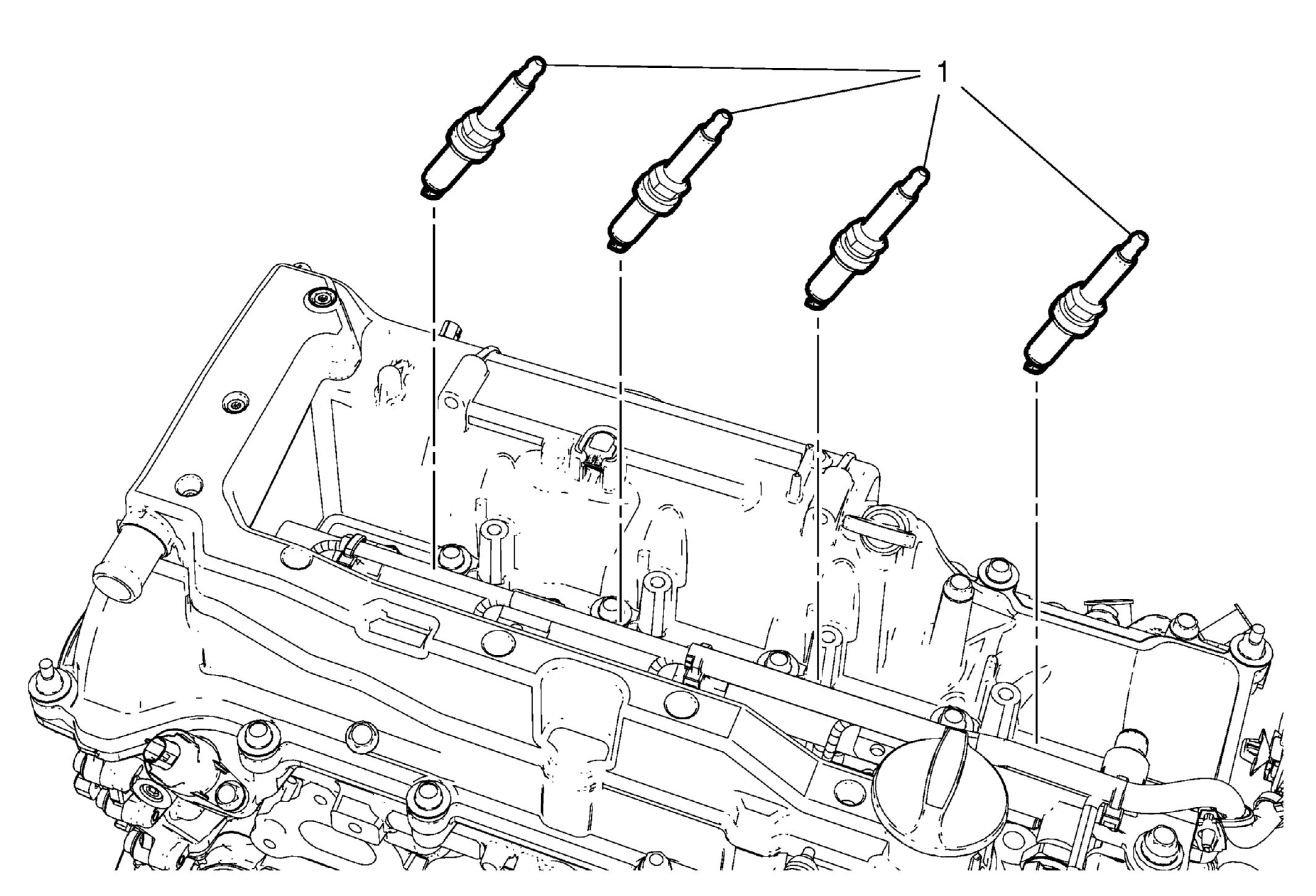

Fig 1: Spark Plug
GM2918334Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the ignition coil. Refer to Ignition Coil Replacement .
1 Spark Plug
CAUTION:

Refer to Fastener Caution .


Tighten
17 N.m (13 lb ft)
Special Tools
EN-51149  Spark Plug Remover / Installer
For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Removal and Installation) .
