Installation Procedure

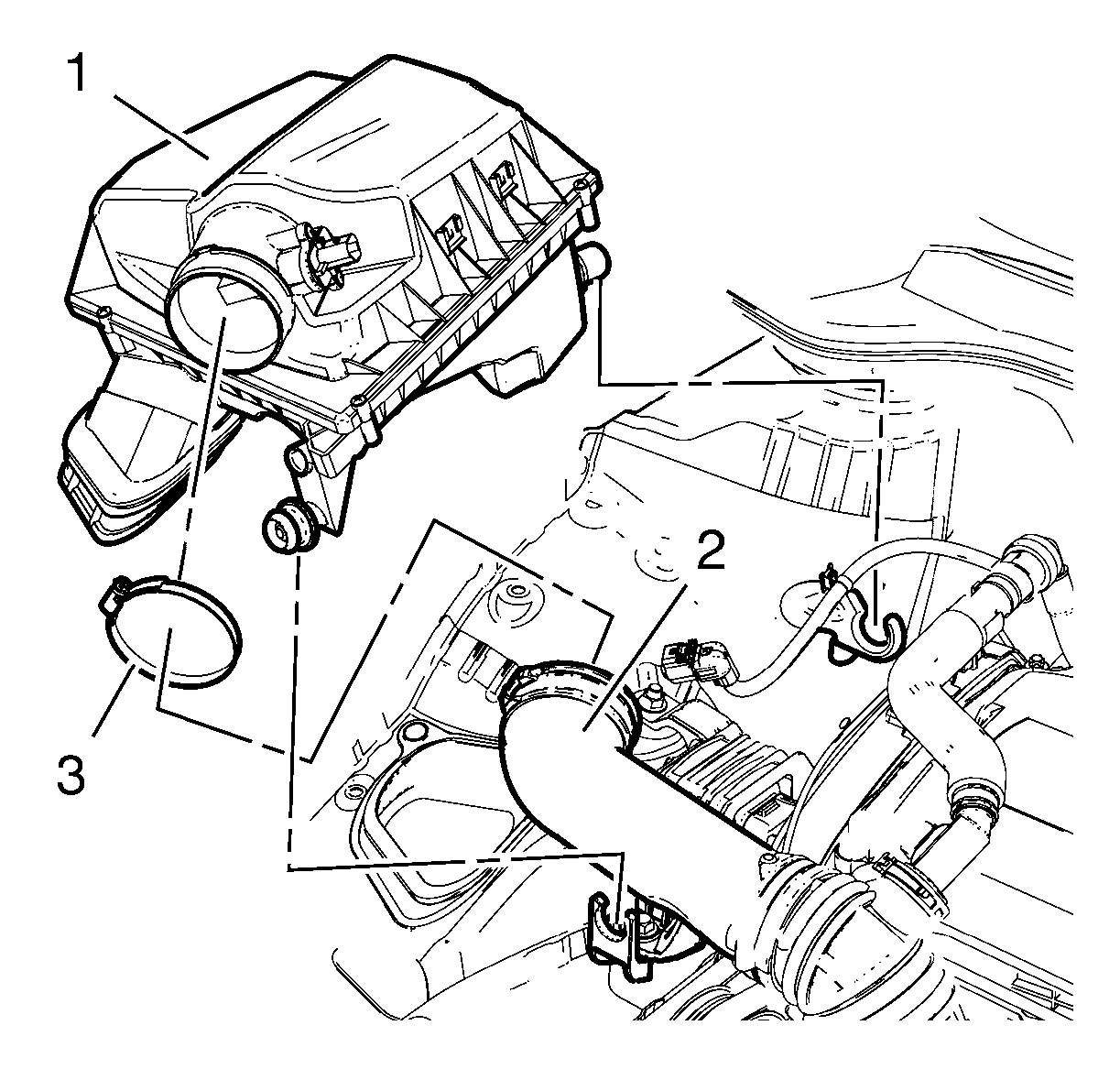

    Fig 1: Air Cleaner Housing
    GM2191535Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner housing (1).
  2. Install the air cleaner outlet front duct (2) to the air cleaner housing (1).
  3. Install the air cleaner outlet front duct clamp (3) and tighten to 3.5 N.m (31 lb in).

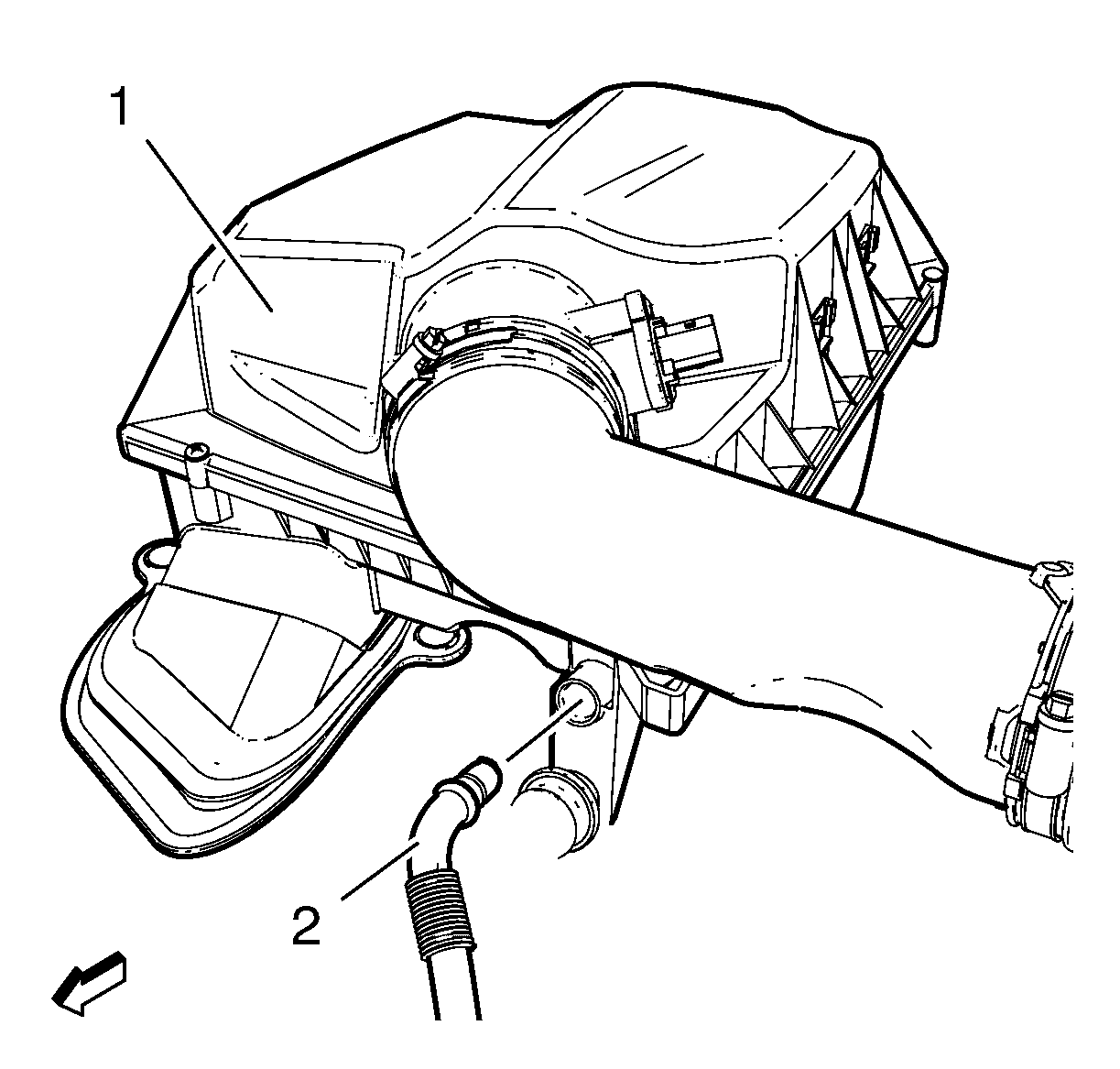

    4. Fig 2: Air Cleaner Housing
    GM2191534Courtesy of GENERAL MOTORS COMPANY
  4. Install the air cleaner housing drain hose (2) to the air cleaner housing (1).

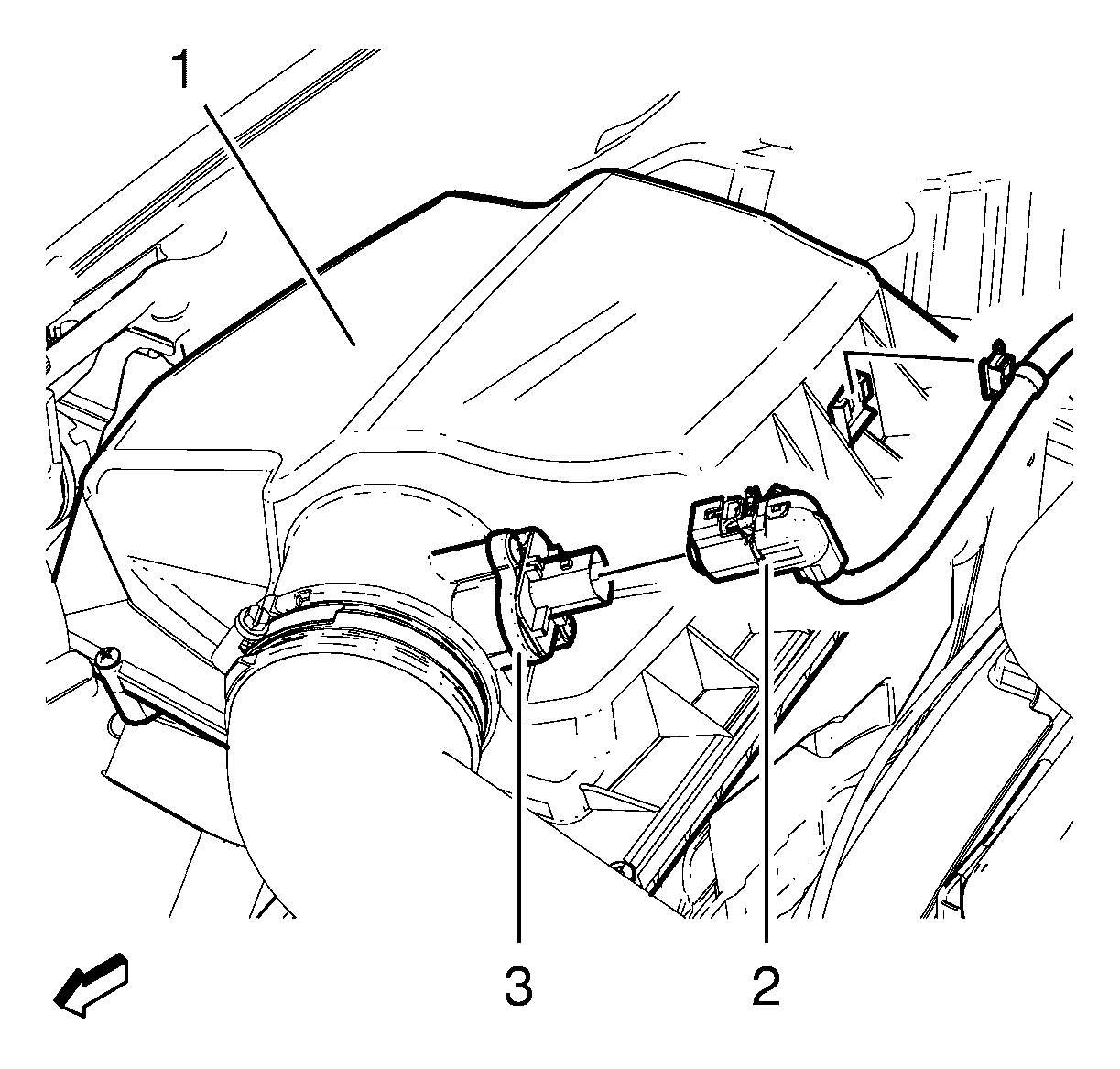

    5. Fig 3: Air Cleaner Housing, Mass Air Flow Sensor Wiring Harness Plug And Mass Air Flow Sensor
    GM2191533Courtesy of GENERAL MOTORS COMPANY
  5. Clip in the mass air flow sensor wiring harness retainer clip to the air cleaner housing (1).
  6. Connect the air mass sensor wiring harness plug (2) to the air mass sensor (3).
