Measurement Procedure

Check Compression for all cylinders:

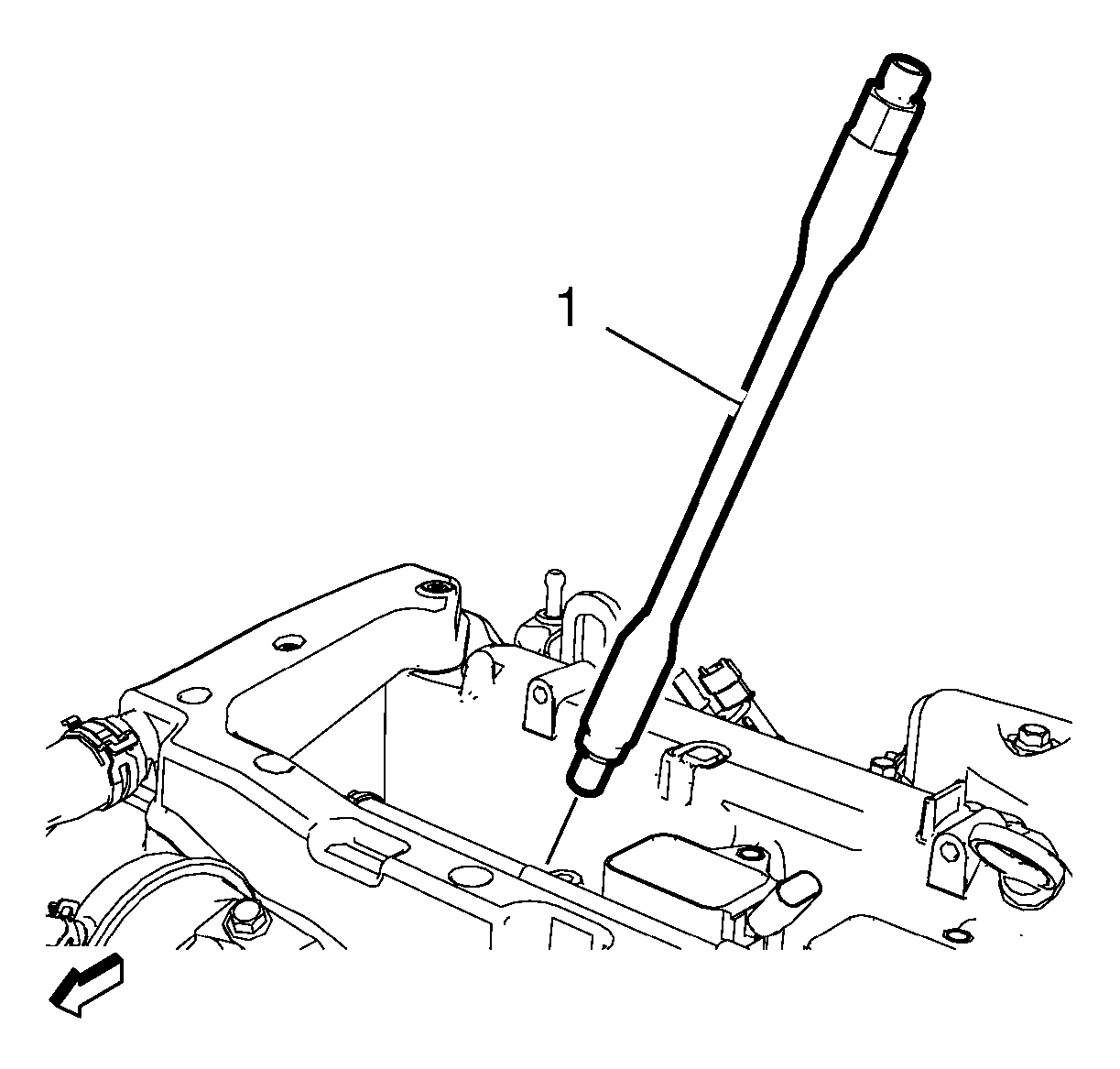

    Fig 1: Compression/Pressure Adapter
    GM3216227Courtesy of GENERAL MOTORS COMPANY
  1. Install the EN-51150   compression / pressure adapter (1) into the spark plug hole for the cylinder that is being checked.
  2. Install a compression tester to the EN-51150  compression / pressure adapter.
    3. NOTE:

    Engine revs at least 300/min.

  3. Start the engine (approx. 4 seconds).
  4. Compare the compression values.

    Maximum pressure differential 100 kPa (14.5 psi)

  5. Transfer the EN-51150  compression / pressure adapter to the next spark plug hole.
  6. Repeat the process for the remaining cylinders.
