Engine Identification

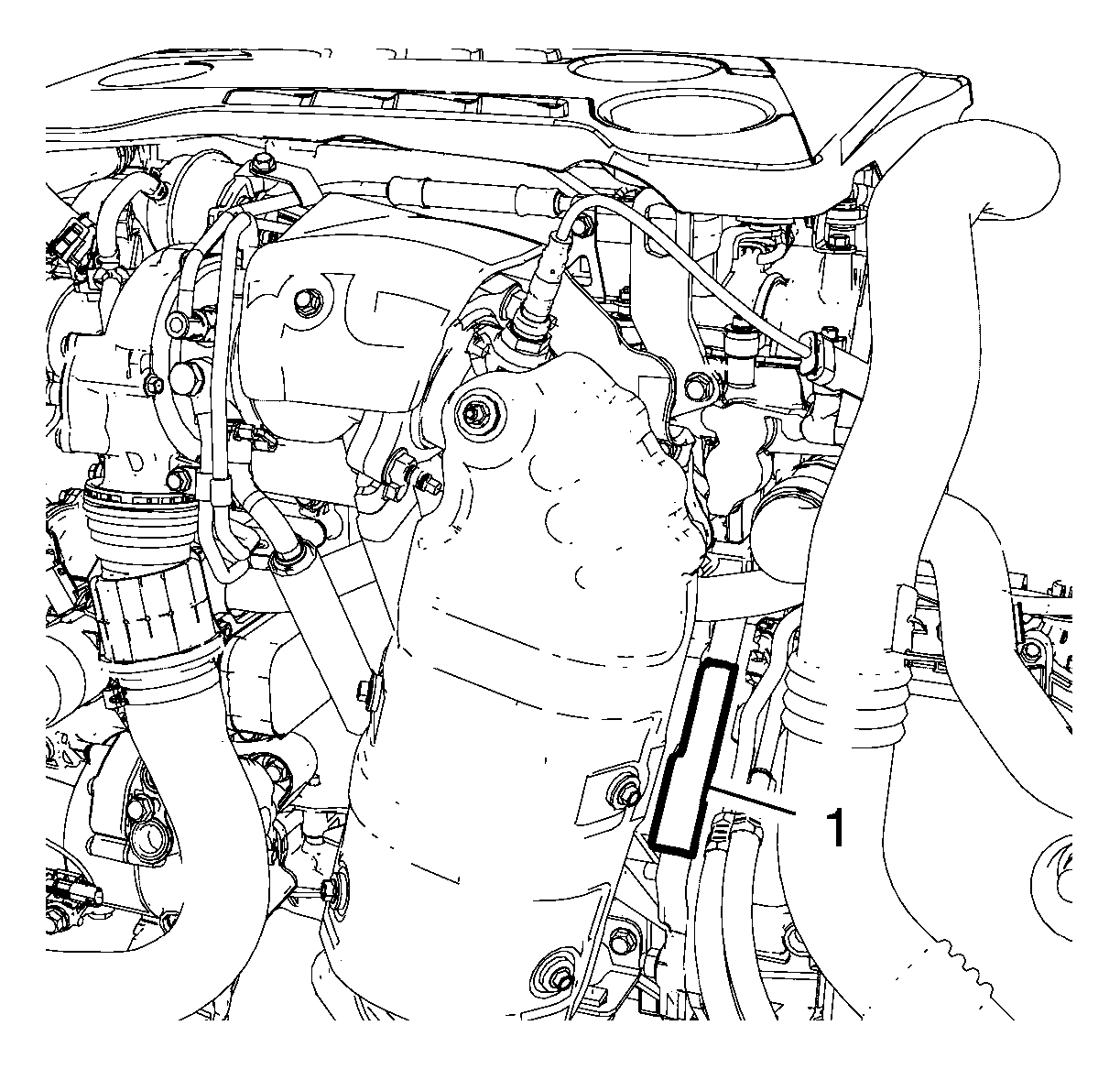

Fig 1: Engine Identification
GM3213248Courtesy of GENERAL MOTORS COMPANY
NOTE:

The engine identification number must be stamped to the cylinder block in case of engine replacement.

The engine identification code (1) is stamped on the flattened area of the cylinder block, at the transmission side.
