Exhaust Side

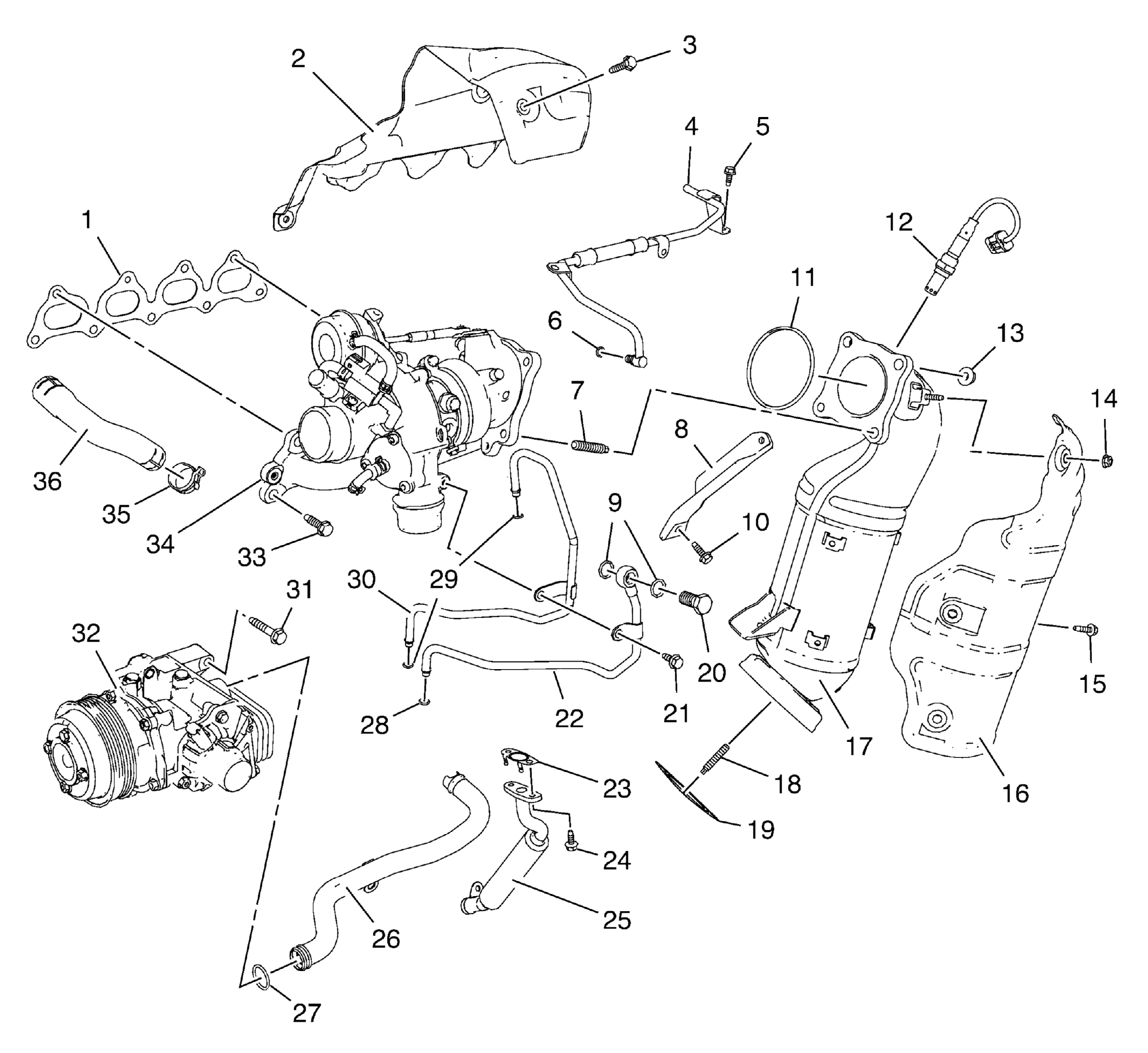

Fig 1: Exhaust Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Exhaust Manifold Gasket
2	Exhaust Manifold Heat Shield
3	Exhaust Manifold Heat Shield Bolt
4	Turbocharger Coolant Return Pipe
5	Turbocharger Coolant Return Pipe Bracket Bolt
6	Turbocharger Coolant Return Pipe Seal
7	Double Ended Stud
8	Turbocharger Brace
9	Turbocharger Coolant Feed Pipe Seal
10	Turbocharger Brace Bolt
11	Catalytic Converter Gasket
12	Heated Oxygen Sensor
13	Catalytic Converter Nut
14	Catalytic Converter Heat Shield Nut
15	Catalytic Converter Heat Shield Bolt
16	Catalytic Converter Heat Shield
17	Catalytic Converter
18	Double Ended Stud
19	Catalytic Converter Gasket
20	Turbocharger Coolant Feed Pipe Hollow Bolt
21	Turbocharger Coolant Feed Pipe Bracket Bolt
22	Turbocharger Coolant Feed Pipe
23	Turbocharger Oil Return Pipe Gasket
24	Turbocharger Oil Return Pipe Bolt
25	Turbocharger Oil Return Pipe
26	Water Pump Inlet Pipe
27	Water Pump Inlet Pipe Seal
28	Turbocharger Coolant Feed Pipe Seal
29	Turbocharger Oil Feed Pipe Seal
30	Turbocharger Oil Feed Pipe
31	Engine Oil Cooler Assembly Bolt
32	Engine Oil Cooler Assembly
33	Exhaust Manifold Bolt
34	Turbocharger (with Exhaust Manifold)
35	Positive Crankcase Ventilation Vacuum Hose Clamp
36	Positive Crankcase Ventilation Vacuum Hose
