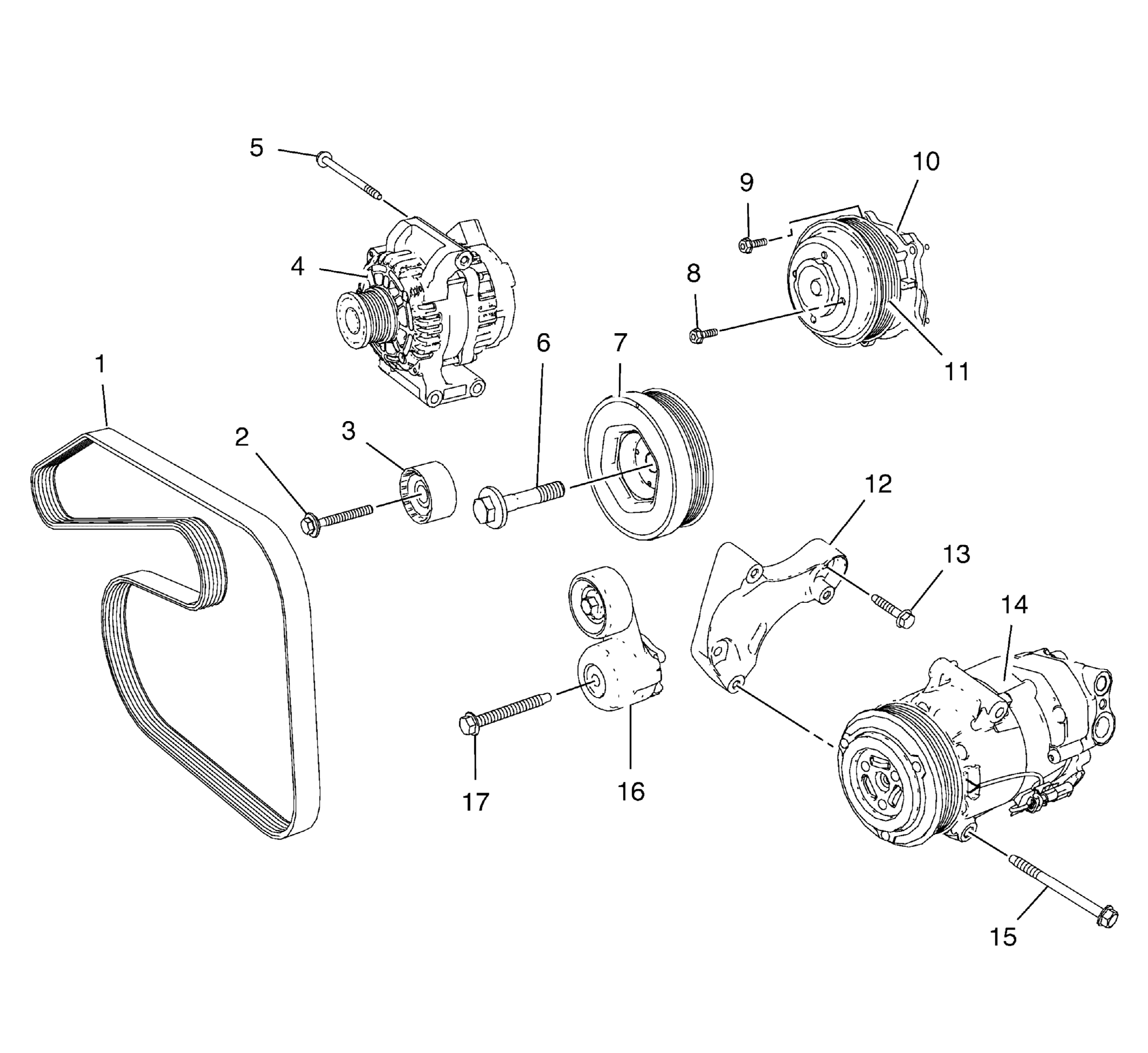

Drive Belt Accessory Components
| Callout | Component Name |
|---|---|
| 1 | Drive Belt |
| 2 | Drive Belt Idler Pulley Bolt |
| 3 | Drive Belt Idler Pulley |
| 4 | Generator |
| 5 | Generator Bolt |
| 6 | Crankshaft Balancer Absorber Bolt |
| 7 | Crankshaft Balancer Absorber |
| 8 | Water Pump Pulley Bolt |
| 9 | Water Pump Bolt |
| 10 | Water Pump |
| 11 | Water Pump Pulley |
| 12 | Air Condition Compressor Bracket |
| 13 | Air Condition Compressor Bracket Bolt |
| 14 | Air Condition Compressor |
| 15 | Air Condition Compressor Bolt |
| 16 | Drive Belt Tensioner |
| 17 | Drive Belt Tensioner Bolt |
