Starter Replacement

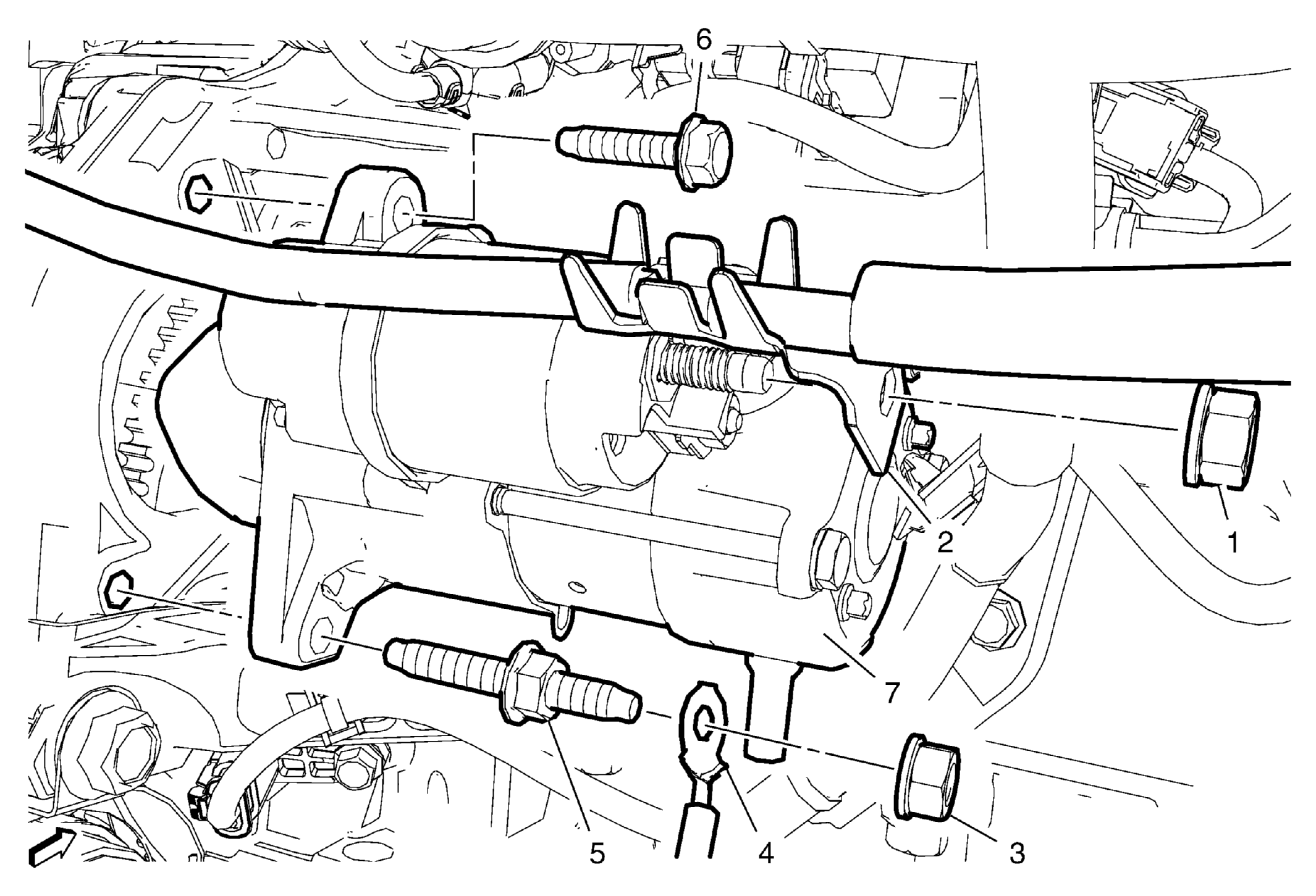

Fig 1: Starter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative cable from the battery. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . If equipped, remove the engine shield. Refer to Engine Shield Replacement .
1	Starter and Generator Positive Cable Nut CAUTION: Refer to Fastener Caution . Tighten 12.5 N.m (111 lb in)
2	Starter and Generator Positive Cable
3	Starter Ground Cable Nut Tighten 20 N.m (15 lb ft)
4	Starter Ground Cable
5	Starter Stud Tighten 22 N.m (16 lb ft)
6	Starter Bolt Tighten 22 N.m (16 lb ft)
7	Starter
