Installation Procedure

  1. Position the generator and starter cable.

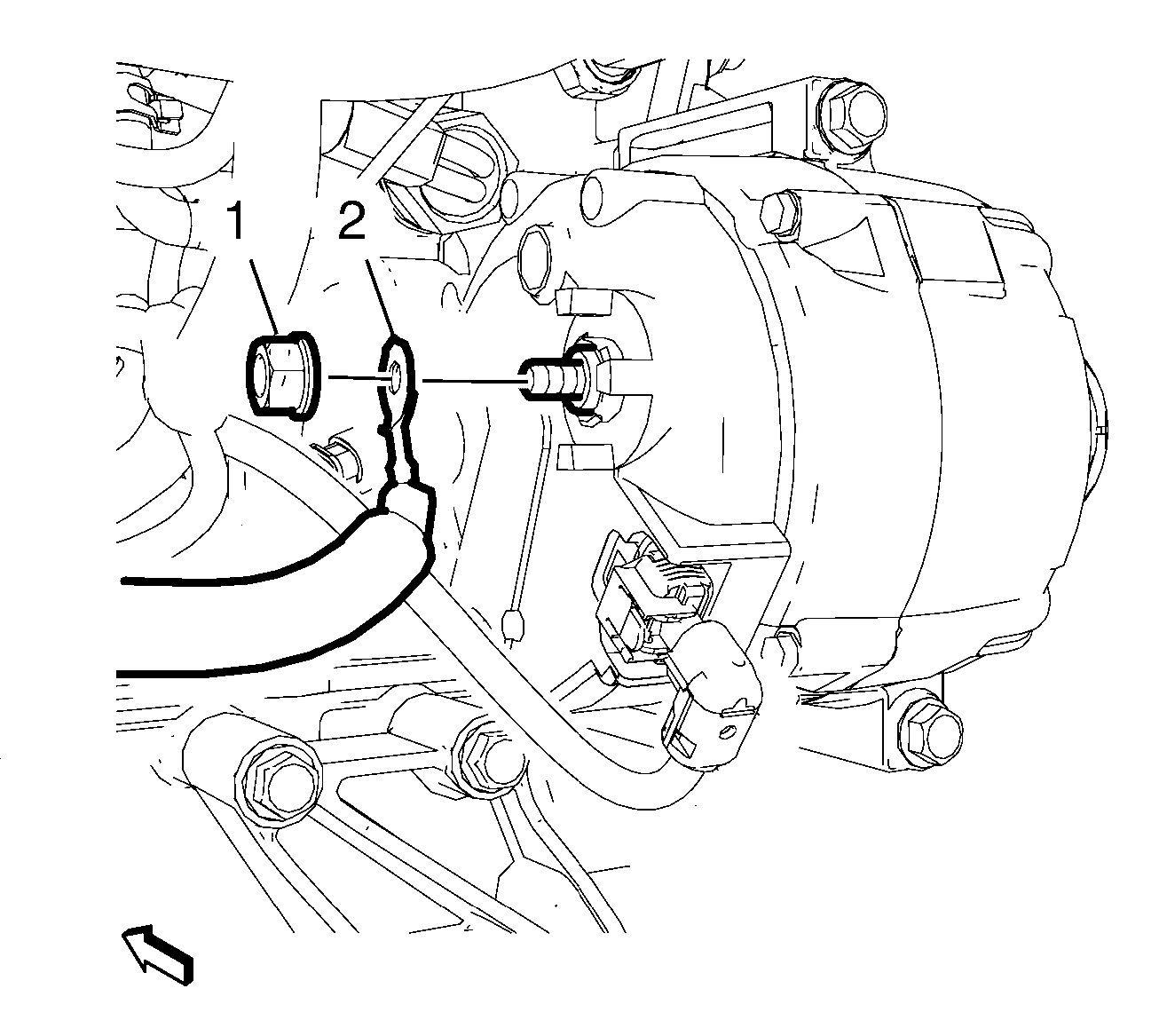

    2. Fig 1: Generator Positive Cable
    GM2918370Courtesy of GENERAL MOTORS COMPANY
  2. Install the generator positive cable (2) to the generator.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the generator positive cable nut (1) and tighten to 12.5 N.m (111 lb in).

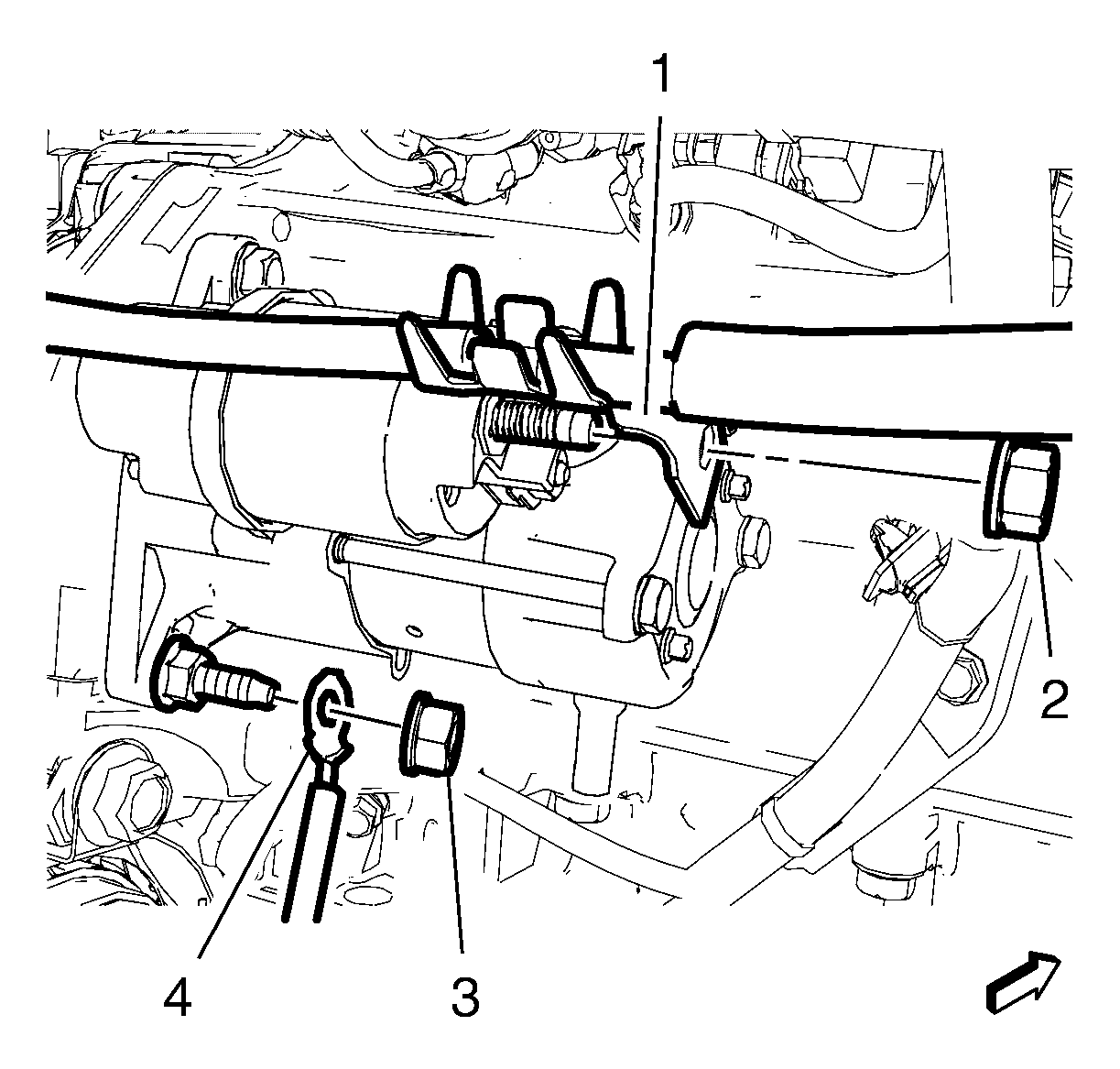

    4. Fig 2: Starter Positive And Ground Cables
    GM2918372Courtesy of GENERAL MOTORS COMPANY
  4. Install the generator and starter positive cable (1)
  5. Install the generator and starter positive cable nut (2) and tighten to 12.5 N.m (111 lb in).
  6. Install the ground cable (4).
  7. Install the ground cable nut (3) and tighten to 20 N.m (15 lb ft).
  8. If equipped, install the engine shield. Refer to Engine Shield Replacement .
  9. Lower the vehicle.

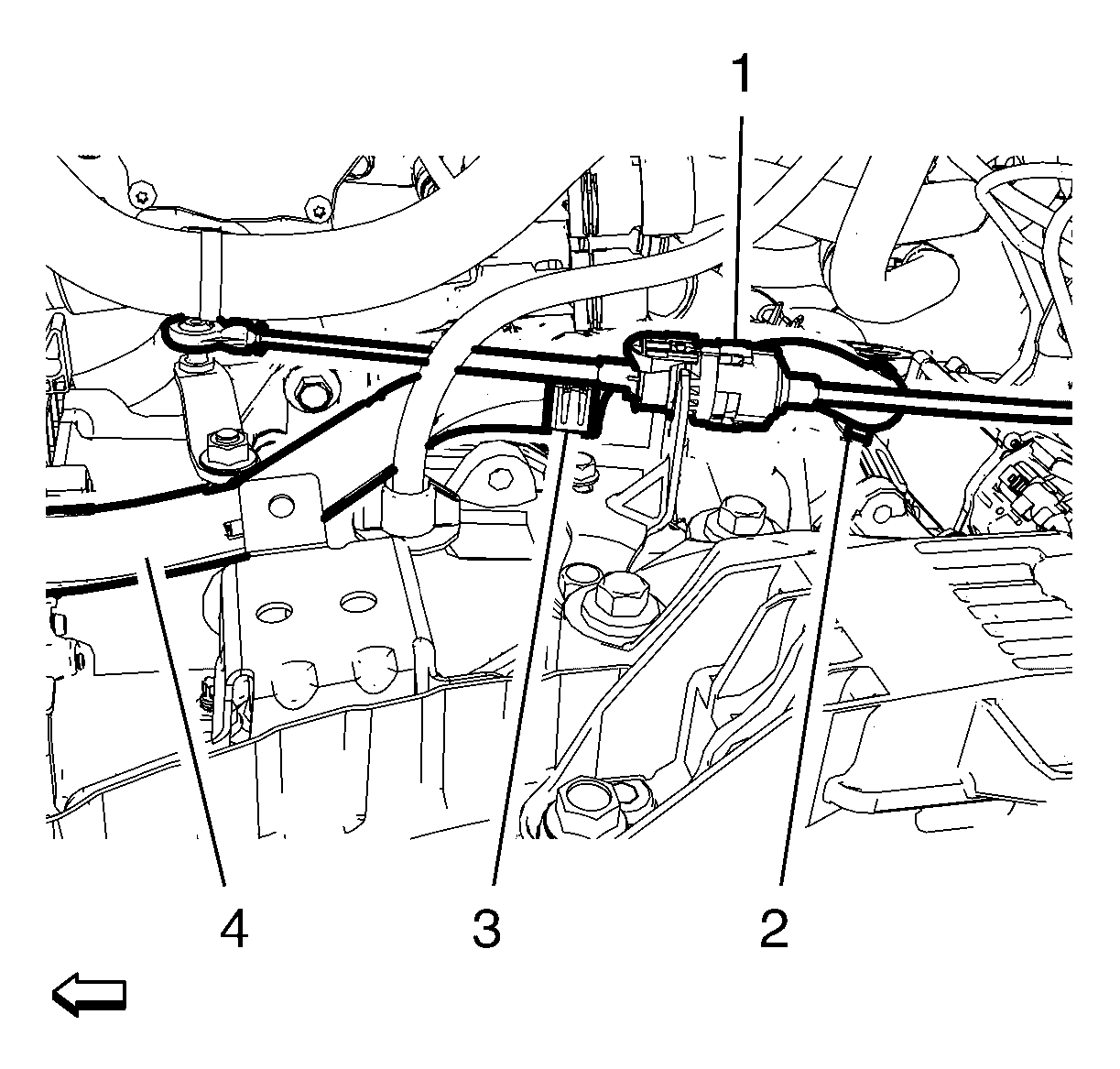

    10. Fig 3: Transmission Range Selector Lever Cable
    GM2918375Courtesy of GENERAL MOTORS COMPANY
  10. Clip in the generator and starter cable conduit retainer (3).
  11. Clip in the generator and starter cable retainers (2) to the rear transmission bracket.
  12. Install the transmission range selector lever cable (1) to the cable bracket.
  13. Connect the transmission range selector lever cable terminal to the transmission manual shift lever pin.

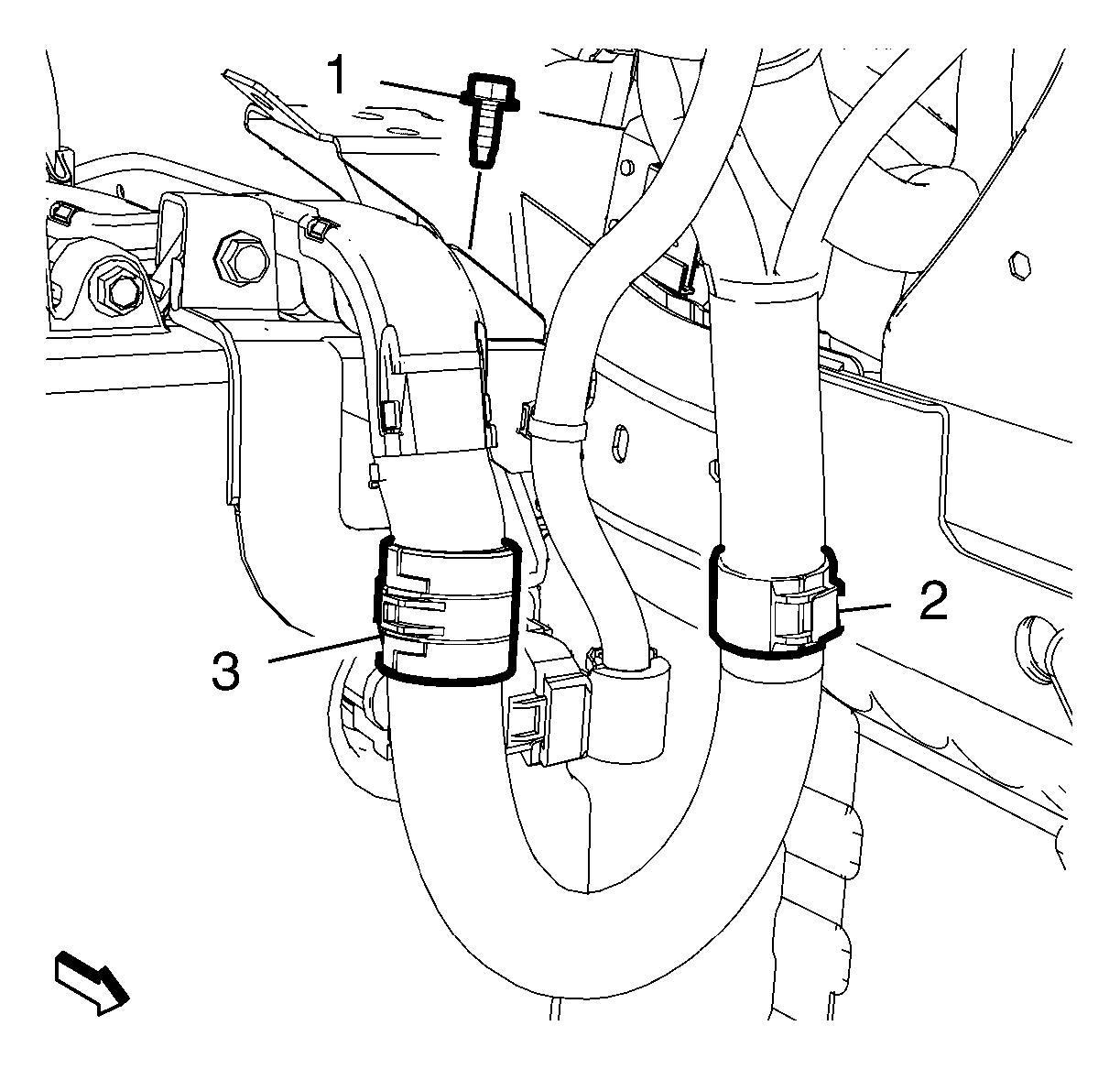

    14. Fig 4: Generator And Starter Cable Retainers
    GM2918373Courtesy of GENERAL MOTORS COMPANY
  14. Install the generator and starter cable conduit bolt (1) and tighten to 9 N.m (80 lb in).
  15. Clip in the generator and starter cable retainers (2, 3) to the body and to the transmission bracket.
    16. Fig 5: Battery Negative Cable And Battery Ground Cable Nut
    GM2027762Courtesy of GENERAL MOTORS COMPANY
  16. Install the battery negative cable (2).
  17. Install the battery ground cable nut (1) and tighten to 9 N.m (80 lb in).
  18. Install the transmission fluid cooler inlet and outlet pipe. Refer to Transmission Fluid Cooler Inlet Pipe Replacement , and Transmission Fluid Cooler Outlet Pipe Replacement .
