Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

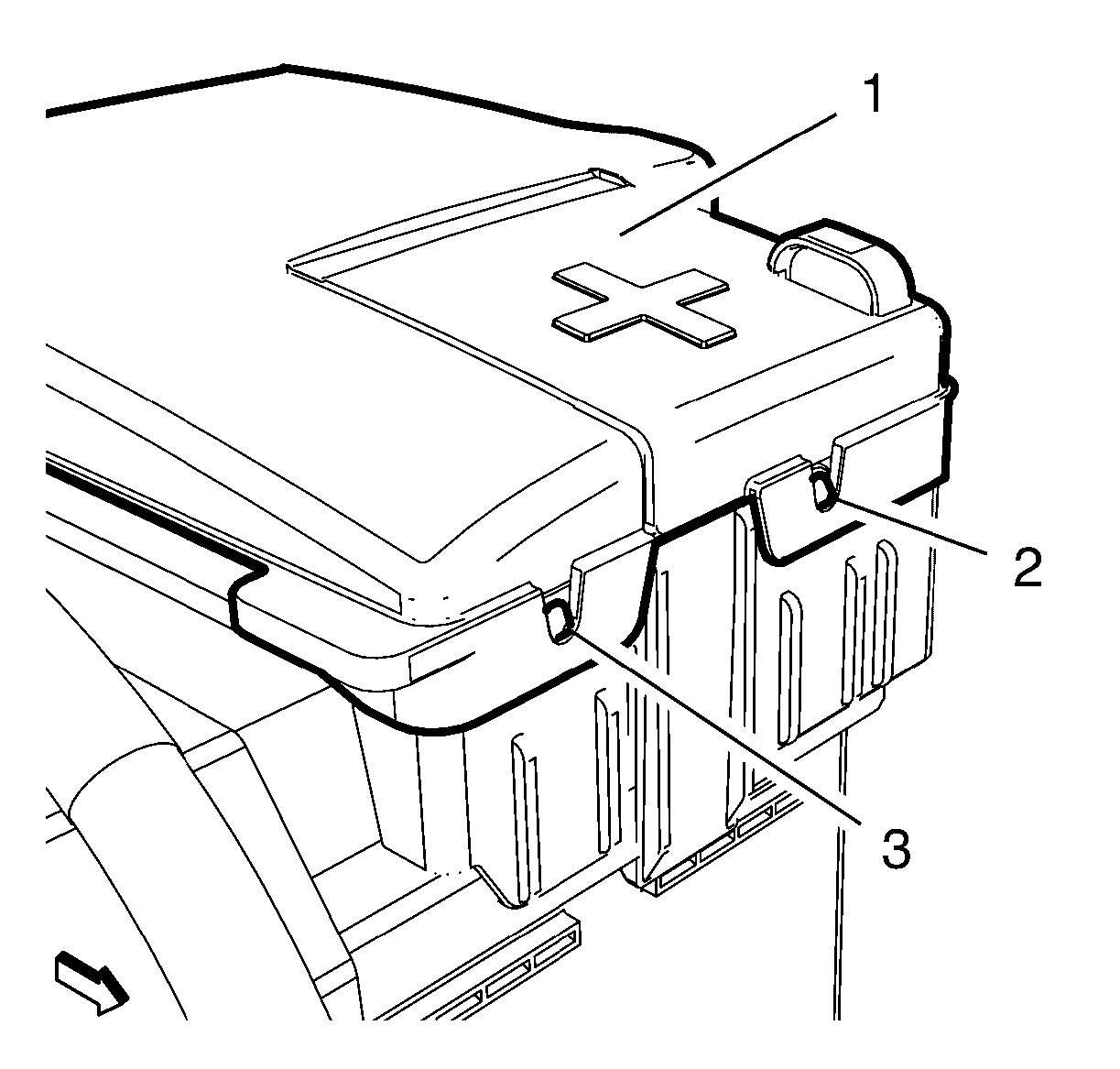

    2. Fig 1: Battery Fuse Box Flap & Retaining Tabs
    GM2595433Courtesy of GENERAL MOTORS COMPANY
  2. Unlock the retaining tab (2) on the battery fuse box cover.
  3. Open the battery fuse box flap (1).
    4. NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  4. Unlock the retaining tab (3) and open the battery fuse box cover.

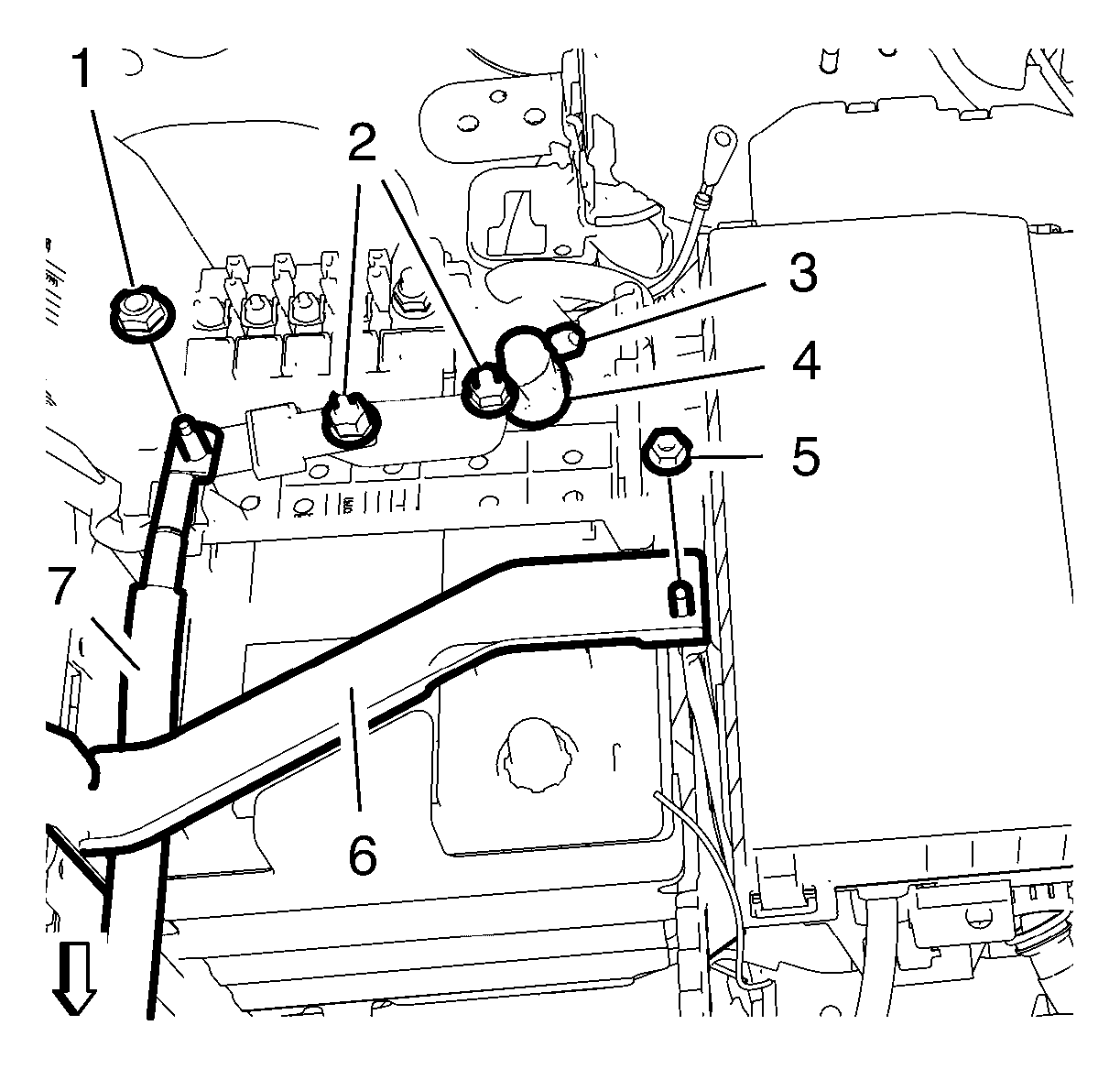

    5. Fig 2: Starter Cable, Battery Positive Cable And Retainer
    GM2372588Courtesy of GENERAL MOTORS COMPANY
  5. Remove the battery hold down retainer nut (5).
  6. Remove the battery hold down retainer (6).
  7. Remove the battery positive cable to starter cable nut (1).
  8. Remove the battery positive cable to starter cable (7).
  9. Loosen the 2 battery positive plate nuts (2).
  10. Loosen the battery positive cable nut (3).
  11. Remove the battery positive cable (4).

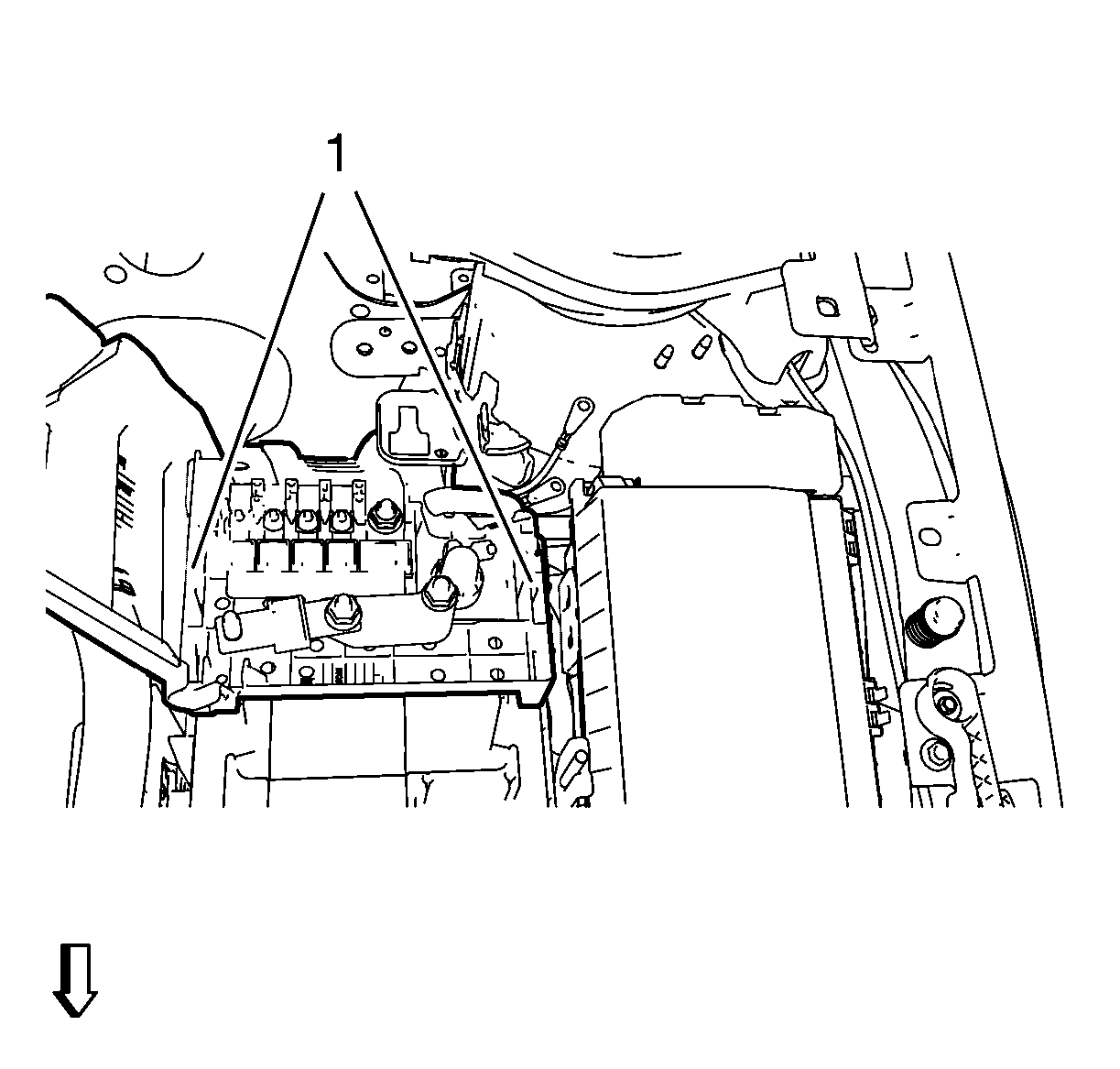

    12. Fig 3: Fuse Block Retainer Clips
    GM2191743Courtesy of GENERAL MOTORS COMPANY
  12. Unclip the battery fuse block retainer clips (1) from the battery and remove the battery fuse block along with the battery positive cable.

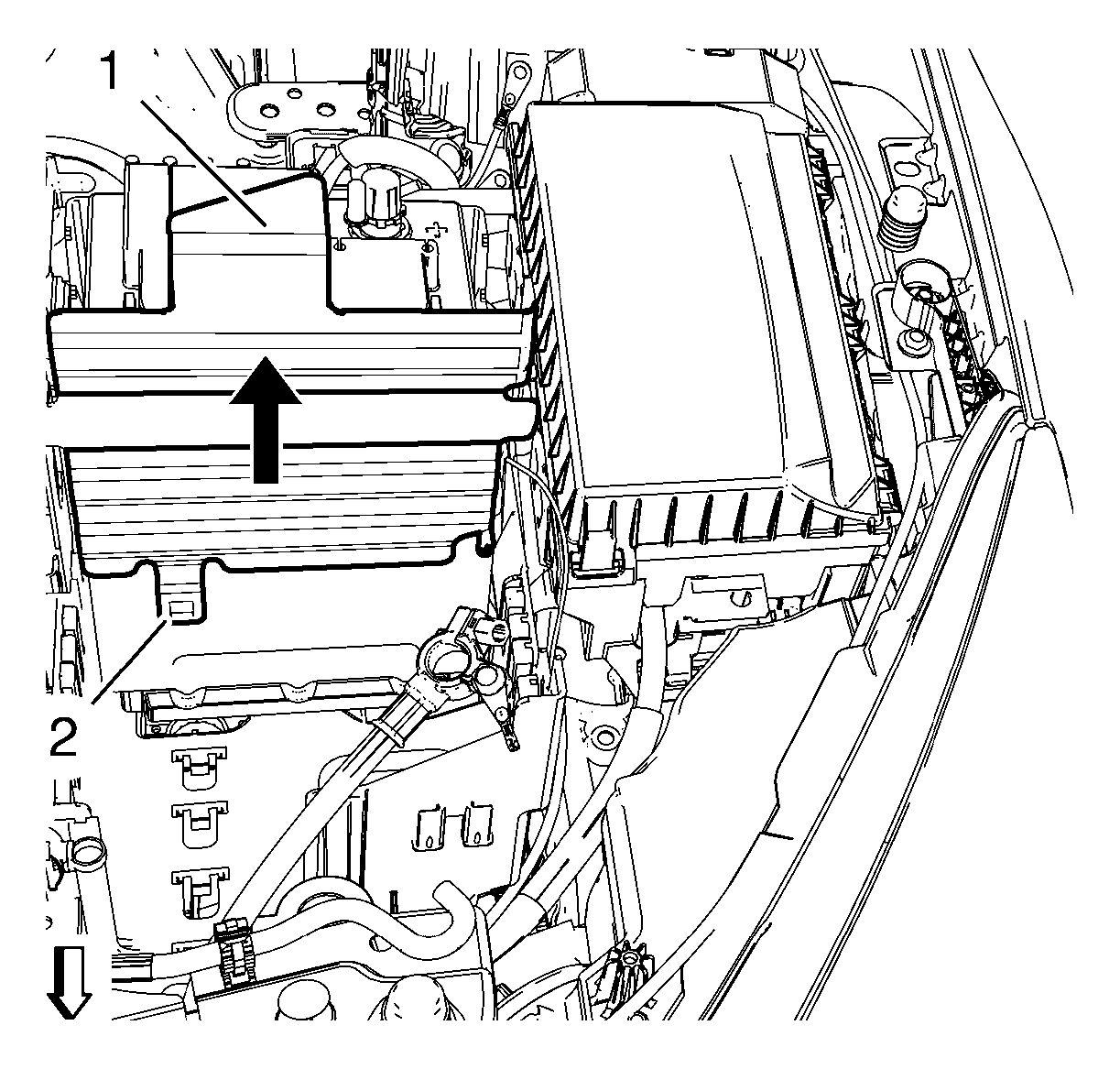

    13. Fig 4: Battery Tray Protector And Battery Tray Protector Retainer
    GM2191744Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Only necessary if vehicle is equipped with a short battery.

  13. Unclip the battery tray protector retainer (2) from battery tray.
  14. Remove the battery tray protector (1) by moving in direction of the arrow.

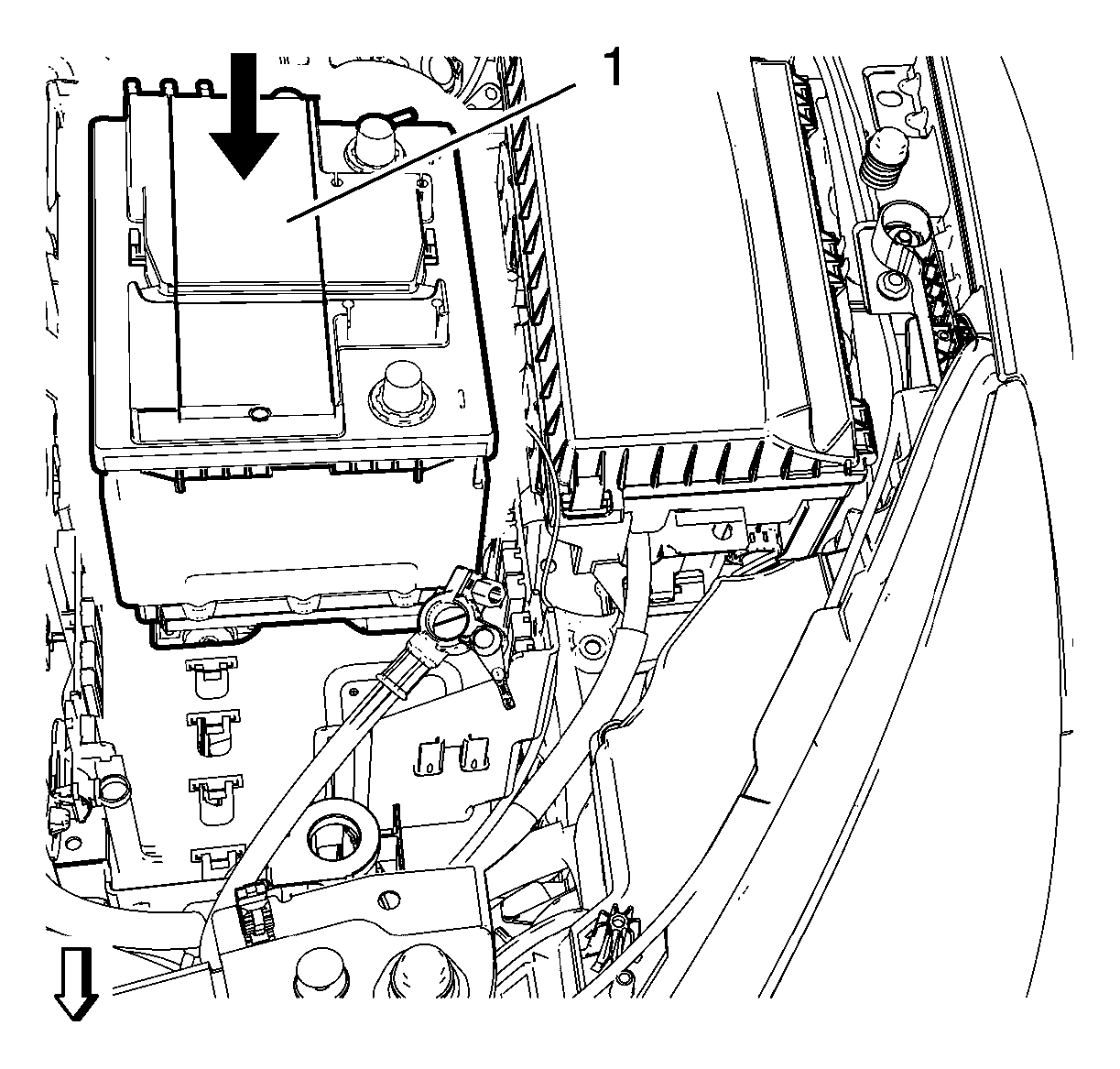

    15. Fig 5: Battery Position
    GM2191745Courtesy of GENERAL MOTORS COMPANY
  15. Move the battery (1) in direction of the arrow and remove it.
