Quarter Window Finish Molding Replacement

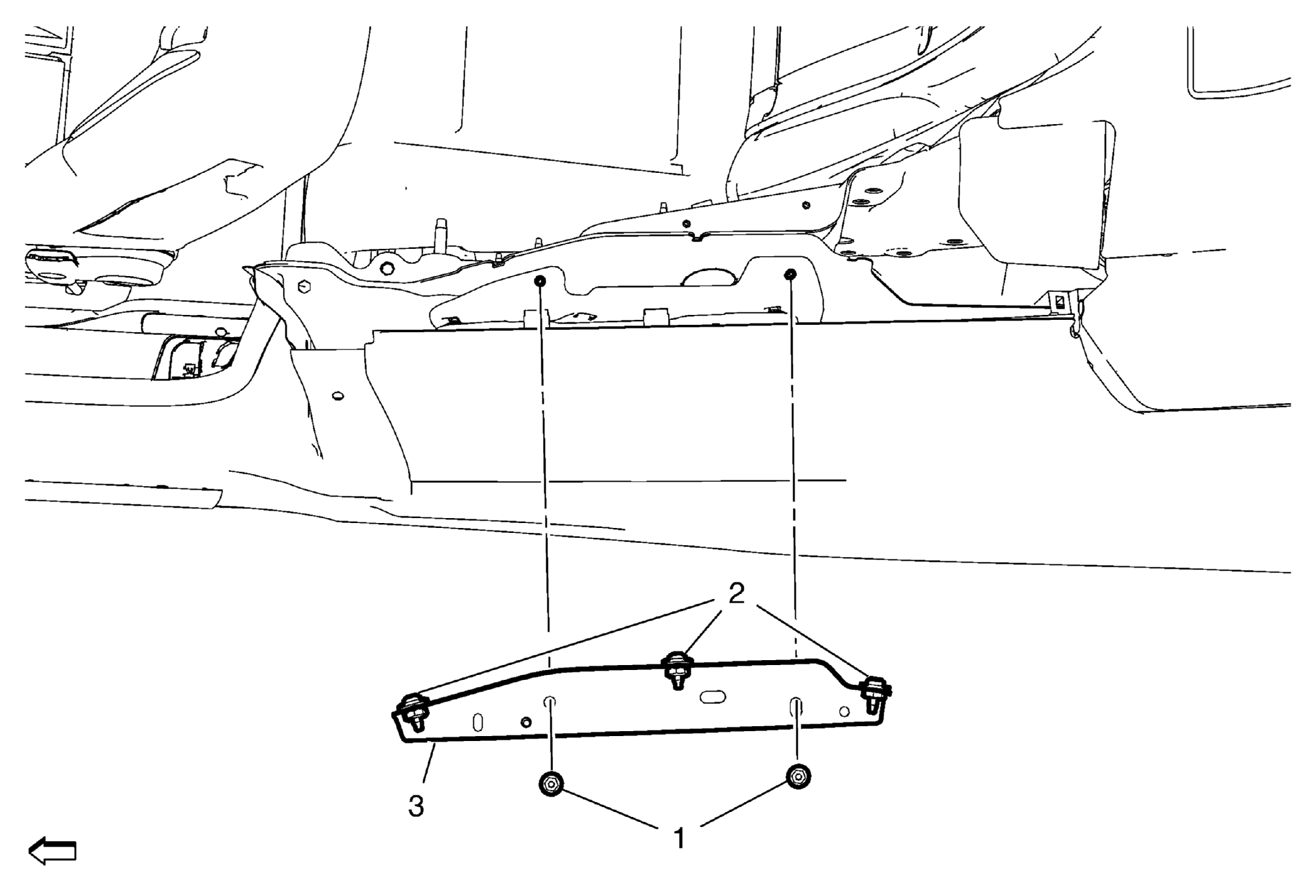

Fig 1: Quarter Window Finish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter window inner belt sealing strip. Refer to Quarter Window Inner Belt Sealing Strip Replacement .
1	Quarter Window Finish Molding Nut (Qty: 2). CAUTION: Refer to Fastener Caution .
2	Quarter Window Finish Molding Bolt (Qty: 3). NOTE: Bolts remain in the quarter window finish molding.
3	Quarter Window Finish Molding
