Front Side Door Window and Multifunction Switch Replacement
Front Side Door Window and Multifunction Switch Replacement

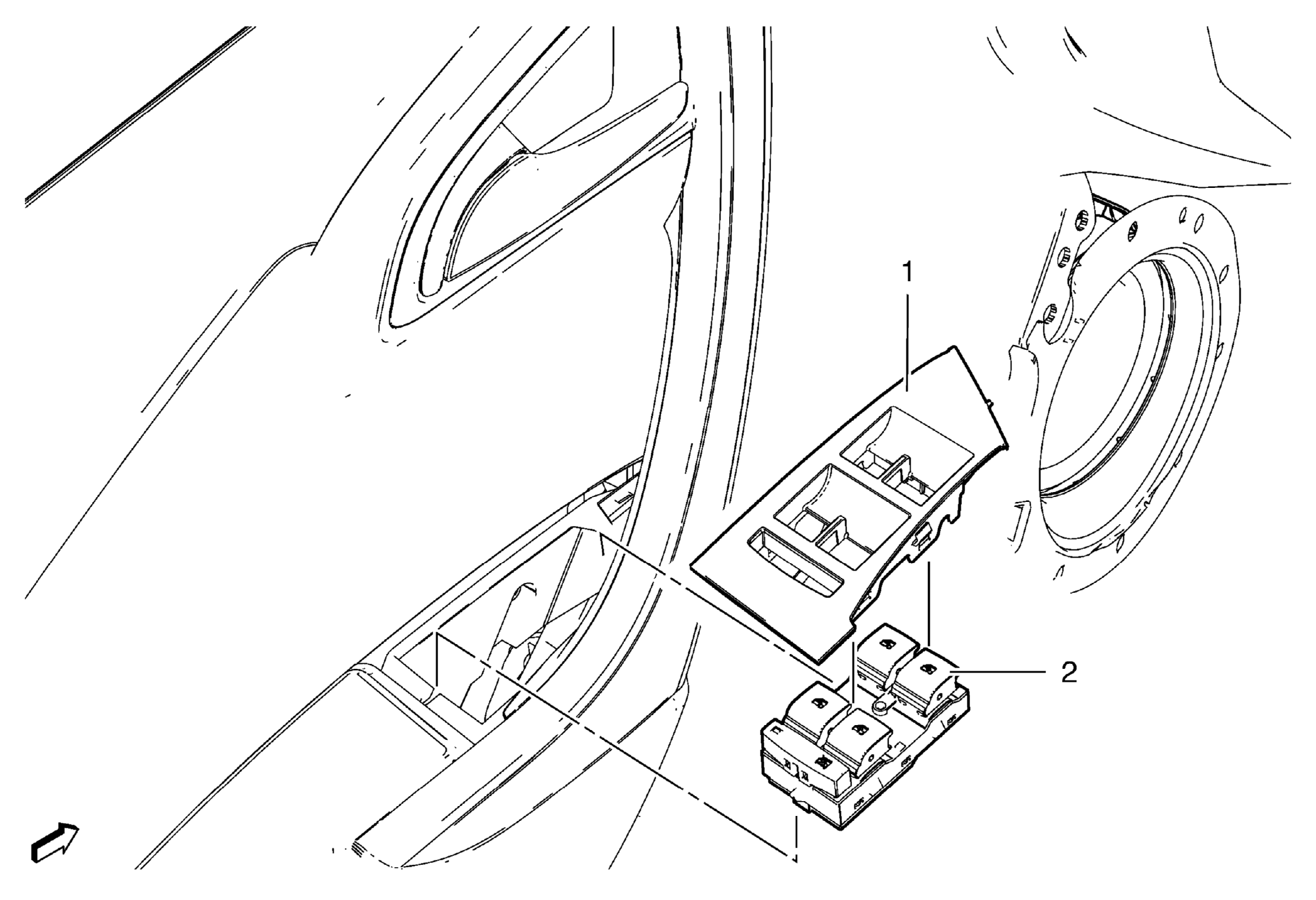

Fig 1: Front Side Door Window Switch & Cover - Left Side
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Side Door Window Switch Opening Cover
Procedure
Unclip front side door window switch opening cover.
2
Front Side Door Window and Multifunction Switch
Procedure
Unclip the front side door window and multifunction switch.
Disconnect the electrical connector.
