Front Side Door Window Weatherstrip Replacement

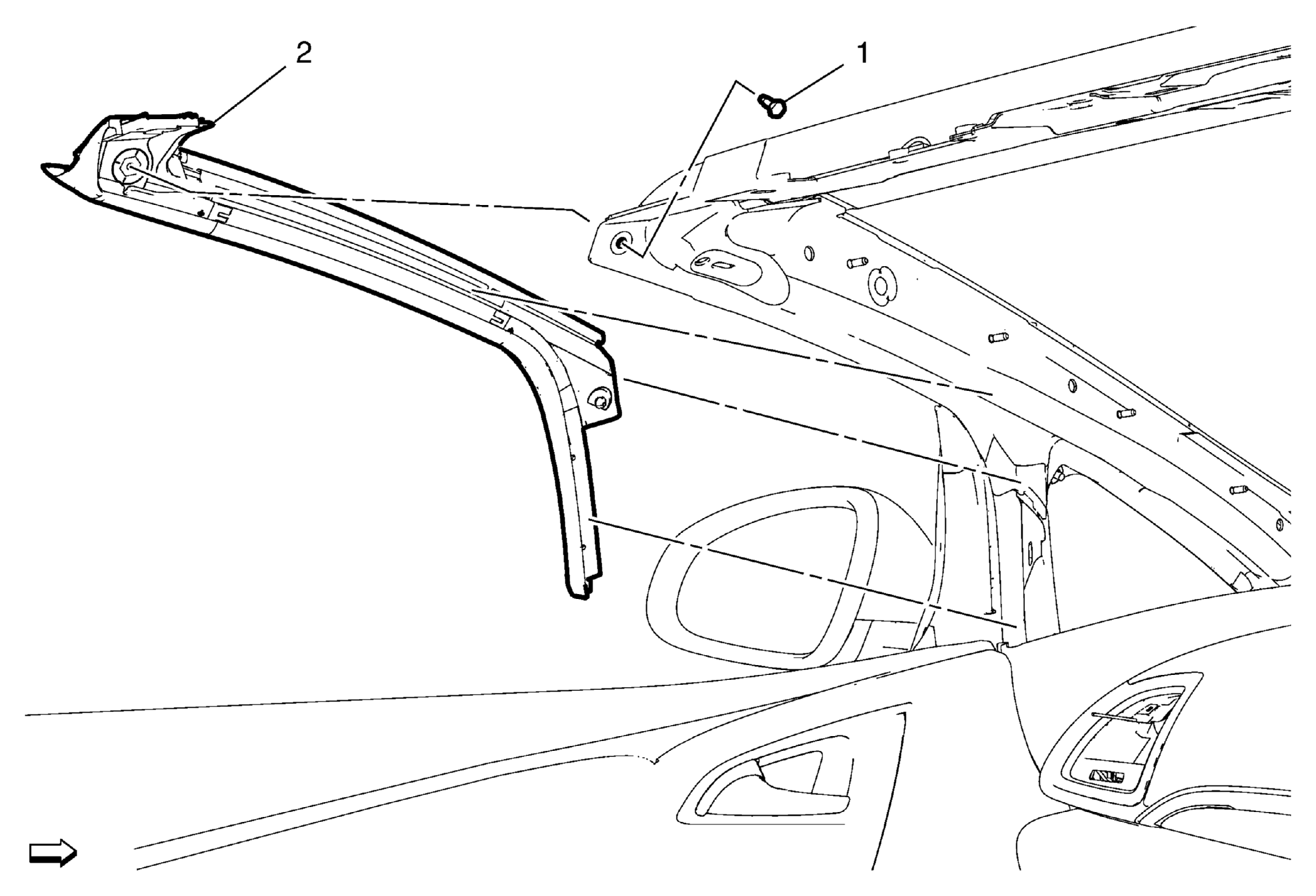

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement . |
|
| 1 | Front Side Door Window Weatherstrip Bolt
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Side Door Window Weatherstrip Procedure Pull the front side door window weatherstrip away from the outer windshield flange to remove. |
