Installation Procedure

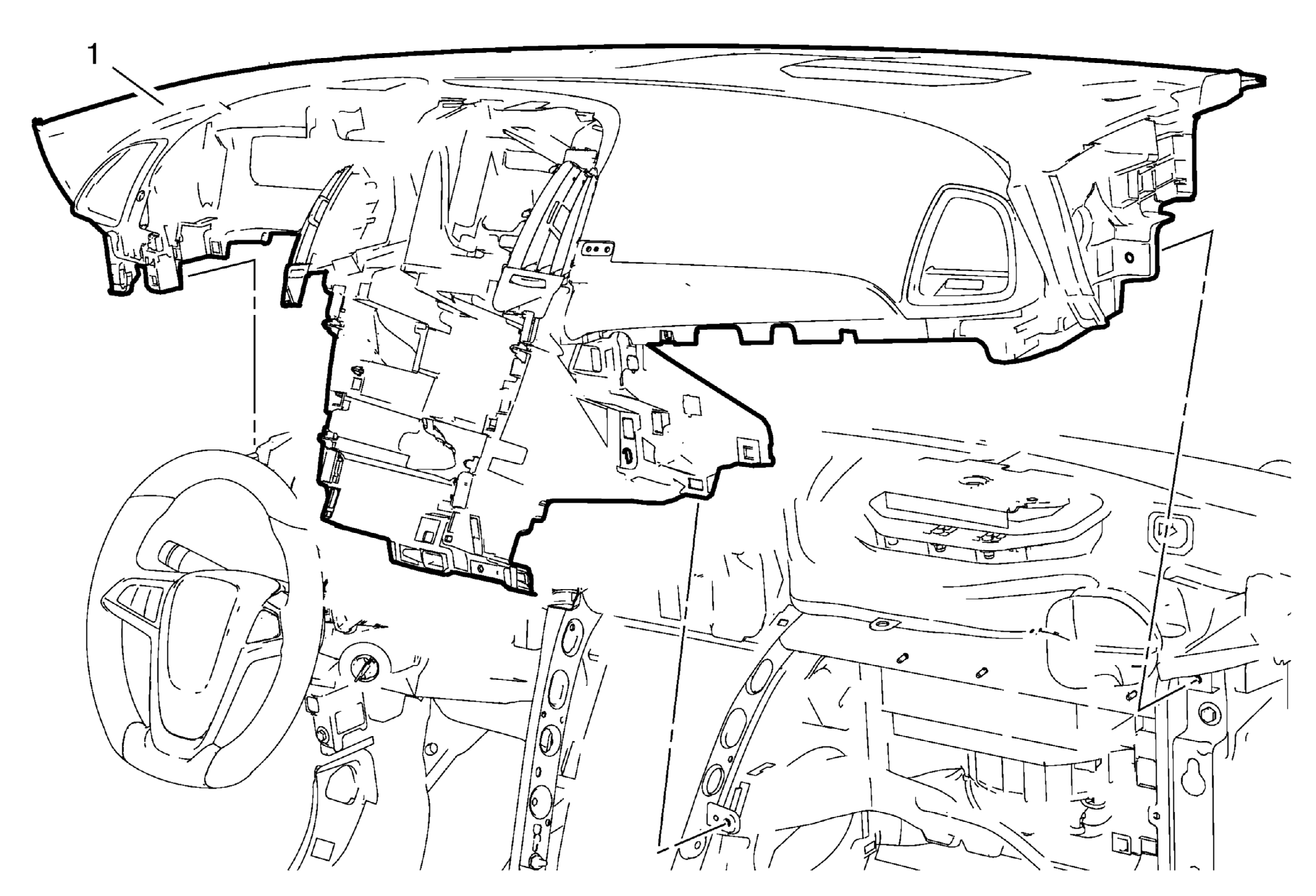

    Fig 1: Instrument Panel
    GM2969201Courtesy of GENERAL MOTORS COMPANY
  1. With the aid of an assistant, load the instrument panel (1) to the instrument panel tie bar to the locator pins.
  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier (1).

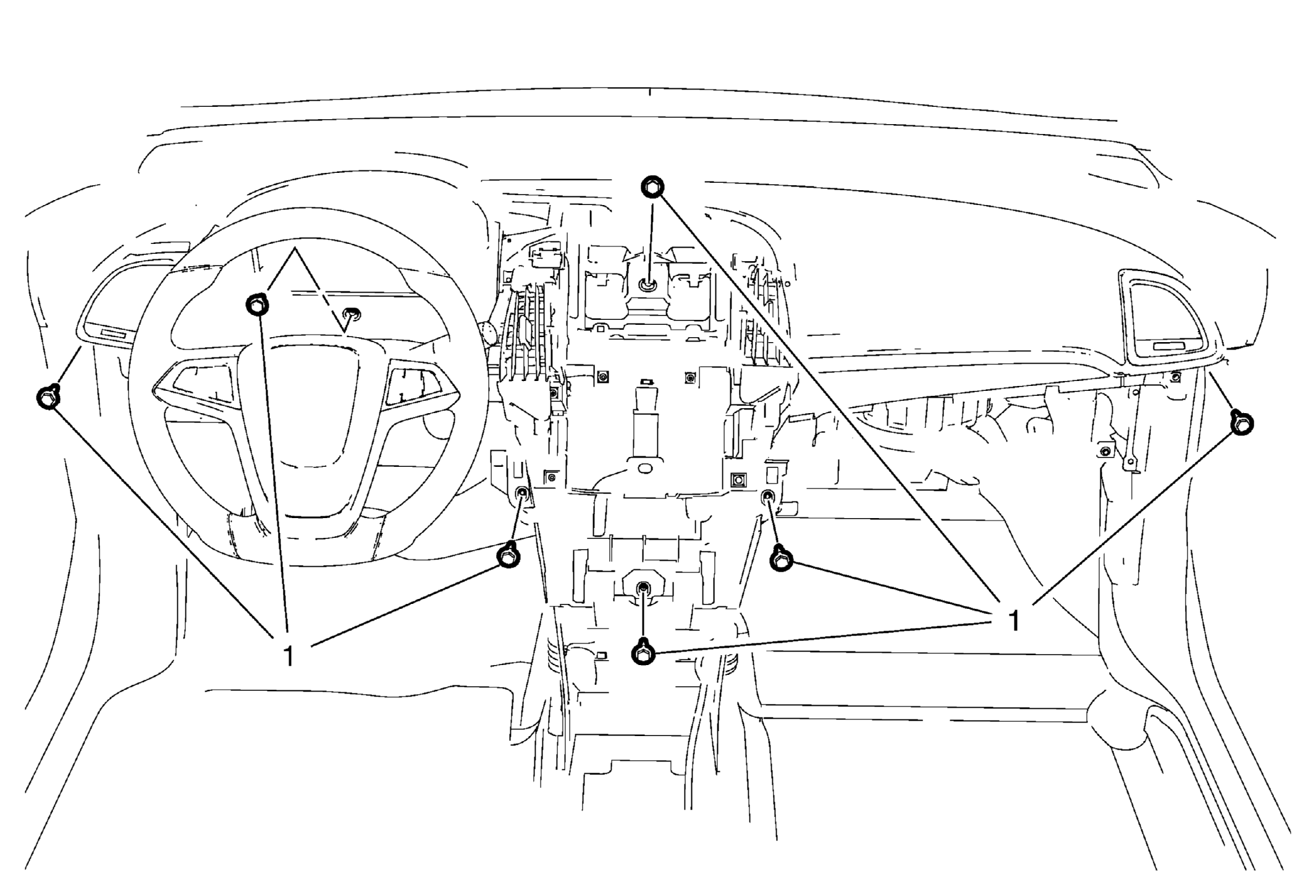

  3. Fig 2: Instrument Panel Bolts
    GM2969203Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the instrument panel bolts (1) and tighten to 4 (53 lb in).
  5. Fig 3: Radio Front Speaker Bracket
    GM2189481Courtesy of GENERAL MOTORS COMPANY
  6. Install the radio front speaker bracket (1) - both sides. Refer to Radio Front Speaker Bracket Replacement .
  7. Fig 4: Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor
    GM2190300Courtesy of GENERAL MOTORS COMPANY
  8. Install the sun load temperature sensor (1). Refer to Sun Load Temperature Sensor Replacement .
  9. Fig 5: Radio Front Center Speaker & Mounting Components
    GM2189478Courtesy of GENERAL MOTORS COMPANY
  10. Install the radio front center speaker (3). Refer to Radio Front Center Speaker Replacement .

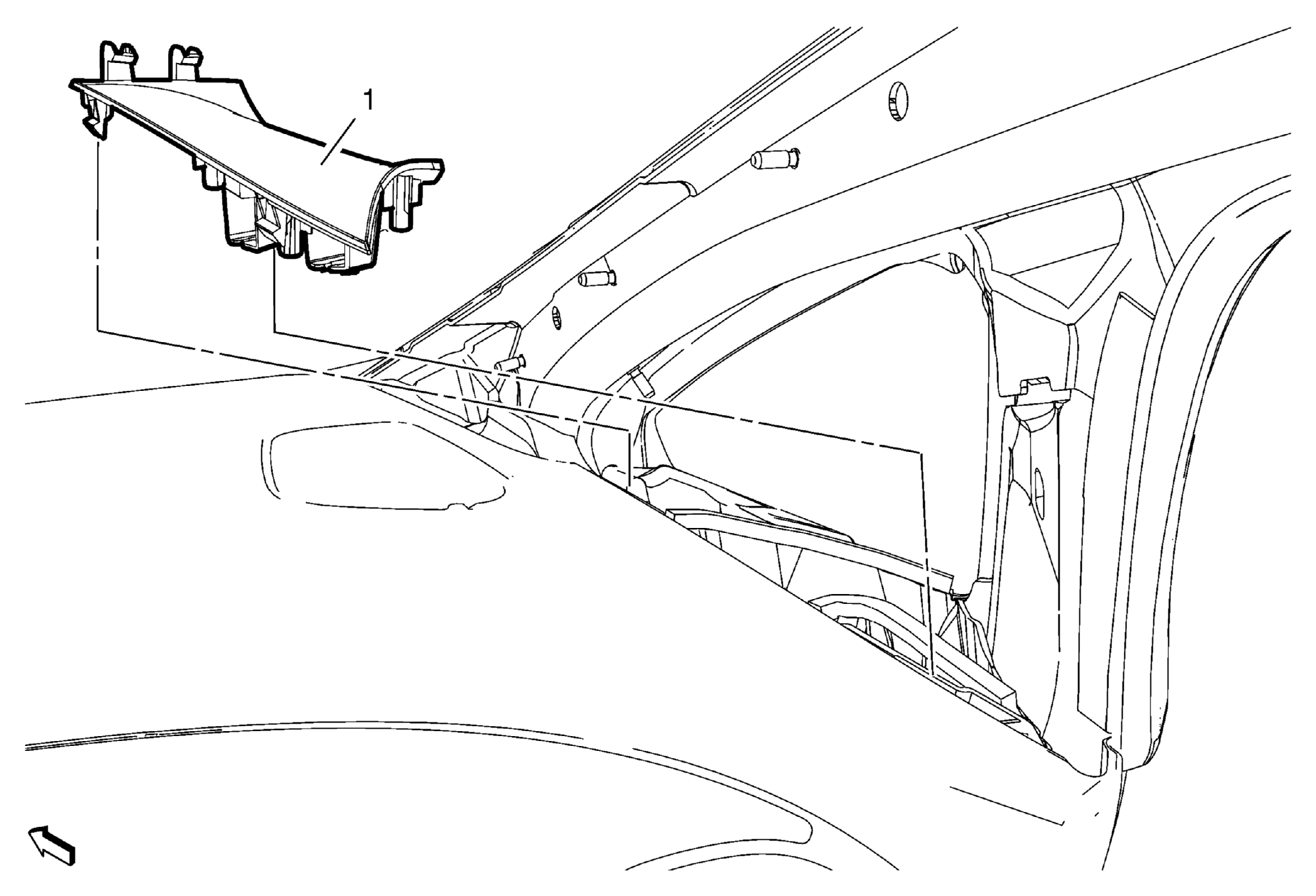

  11. Fig 6: Instrument Panel Upper Outer Trim Panel
    GM2968058Courtesy of GENERAL MOTORS COMPANY
  12. Install the instrument panel upper outer trim panel (1) - both sides. Refer to Instrument Panel Upper Outer Trim Panel Replacement .
  13. Fig 7: Instrument Cluster
    GM2189592Courtesy of GENERAL MOTORS COMPANY
  14. Install the instrument cluster (3). Refer to Instrument Cluster Replacement .

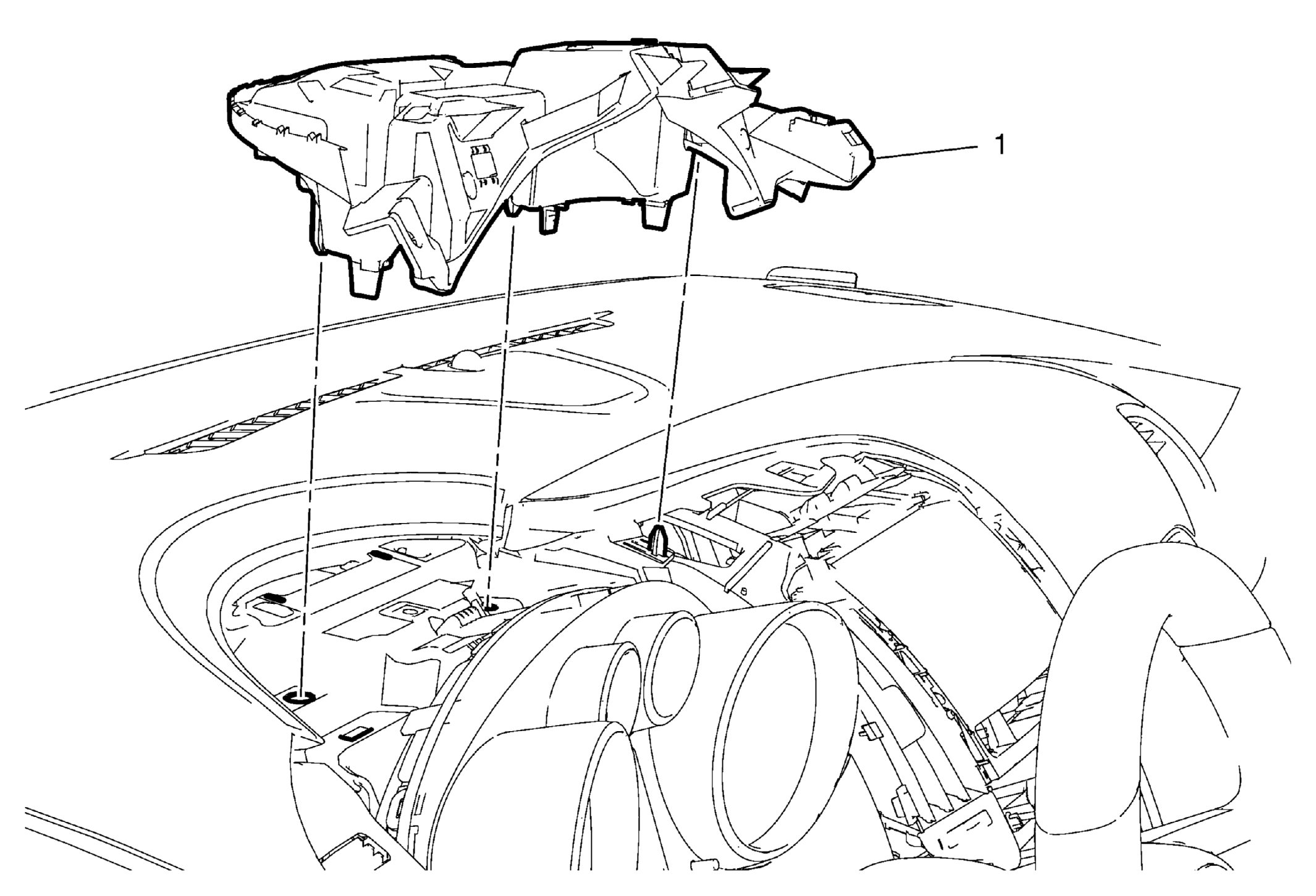

  15. Fig 8: Instrument Hood Lower
    GM2969200Courtesy of GENERAL MOTORS COMPANY
  16. Install the instrument hood lower (1).

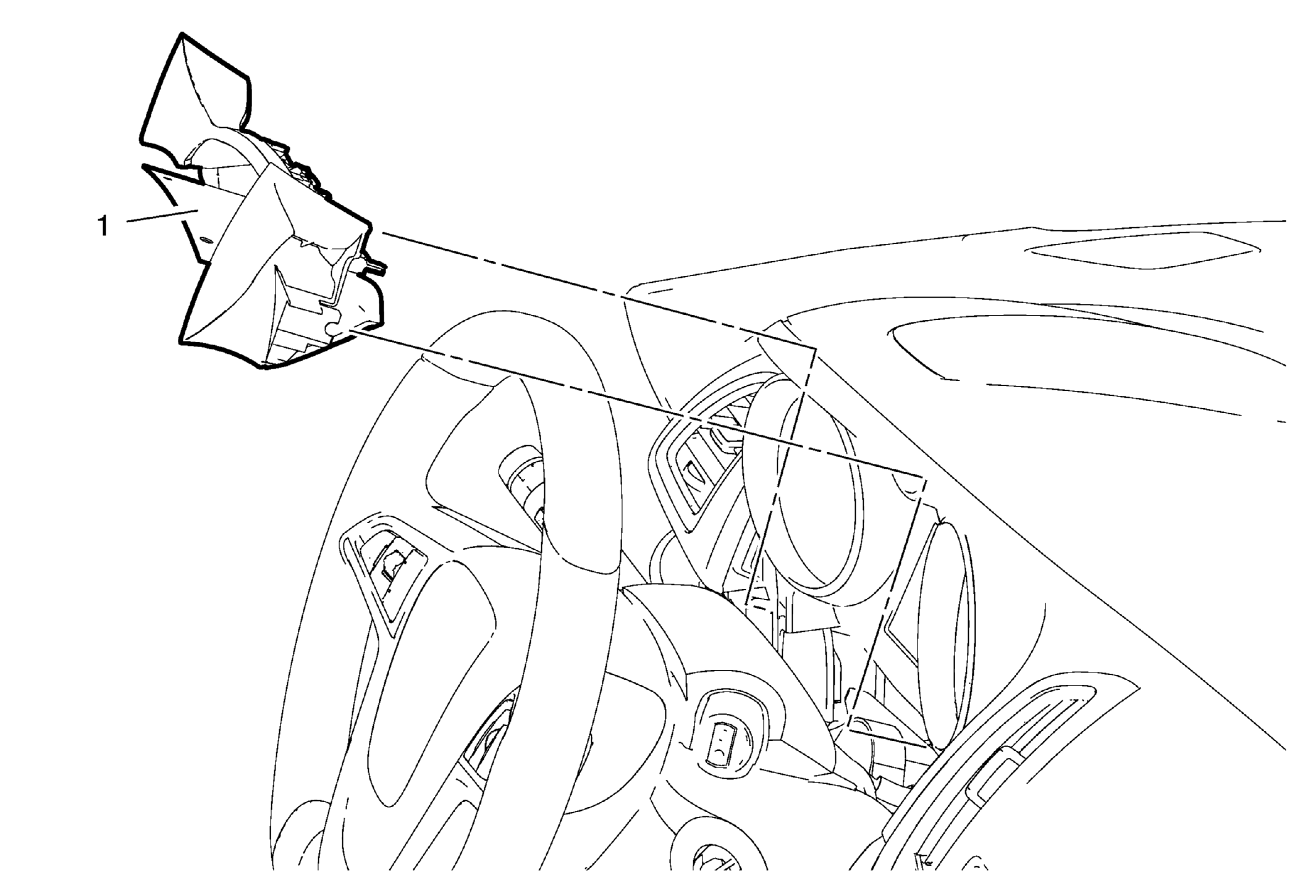

  17. Fig 9: Steering Wheel Upper Trim Cover
    GM2969207Courtesy of GENERAL MOTORS COMPANY
  18. Install the steering wheel upper trim cover (1). Refer to Steering Column Upper Trim Cover Replacement .

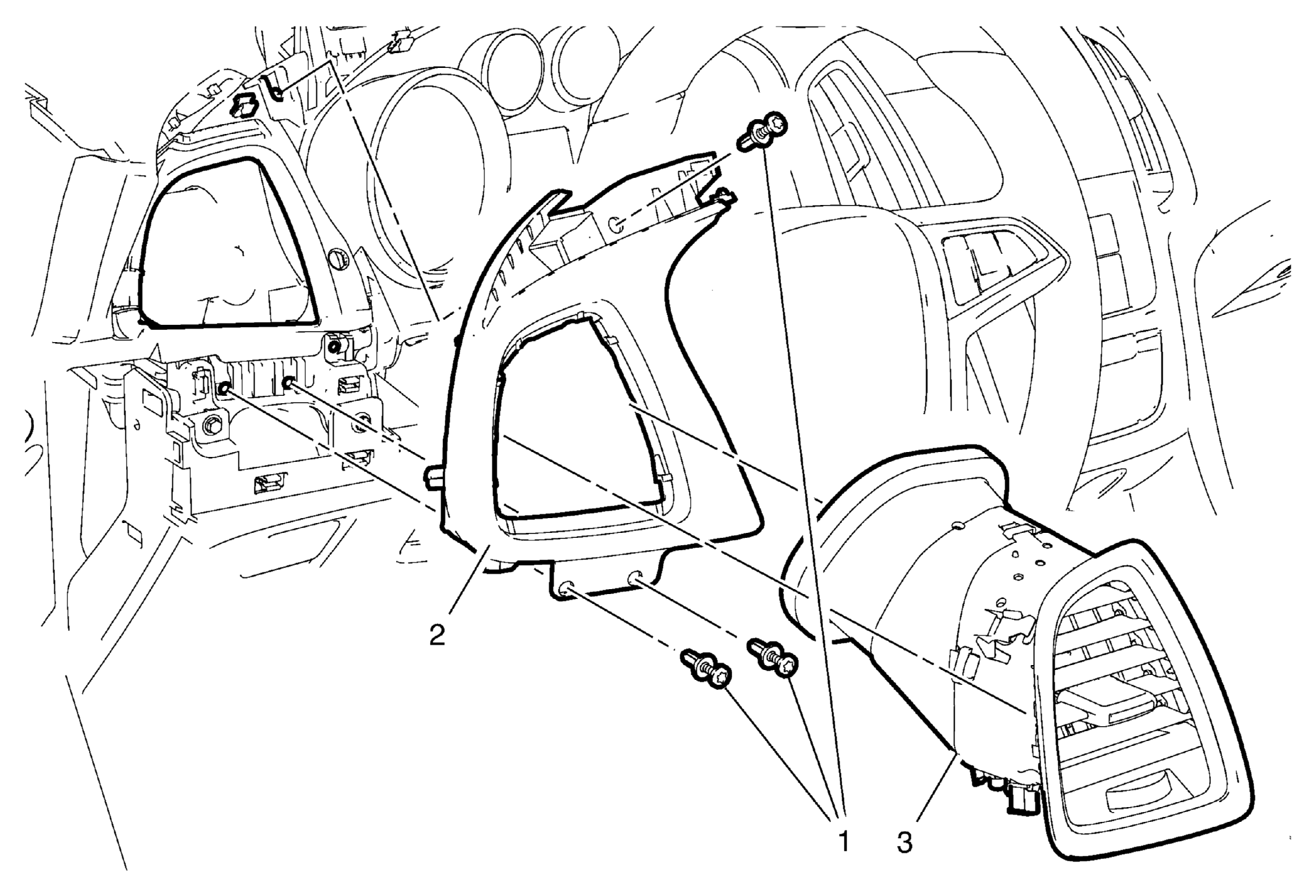

  19. Fig 10: Instrument Panel Upper Trim Panel
    GM2969206Courtesy of GENERAL MOTORS COMPANY
  20. Install the instrument panel upper trim panel (2).
  21. Install the 3 instrument panel upper trim panel bolts (1).
  22. Install the instrument panel outer air outlet ducts. Refer to and Instrument Panel Outer Air Outlet Duct Replacement - Right Side .

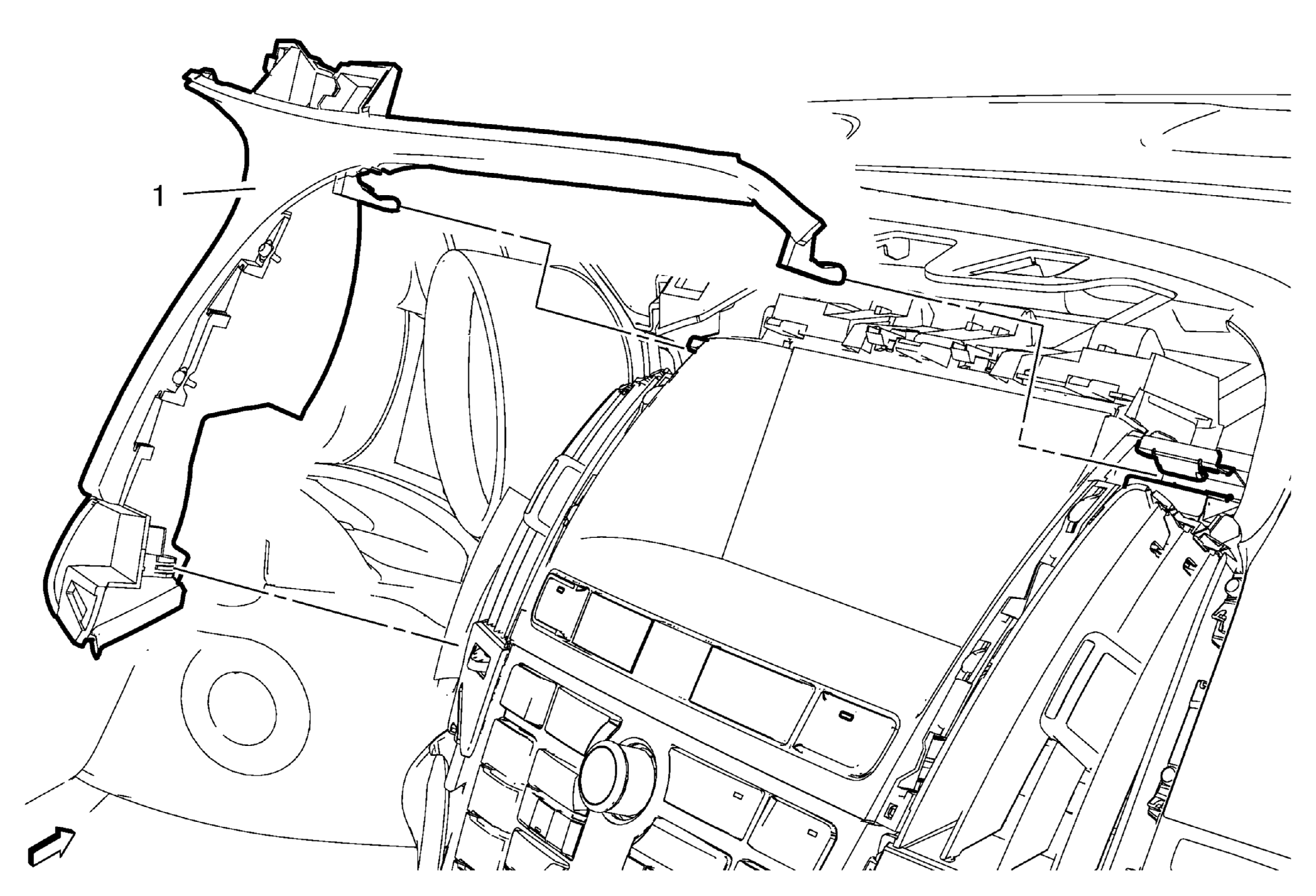

  23. Fig 11: Driver Information Display Cover
    GM2968047Courtesy of GENERAL MOTORS COMPANY
  24. Install the driver information display cover (1). Refer to Driver Information Display Cover Replacement .

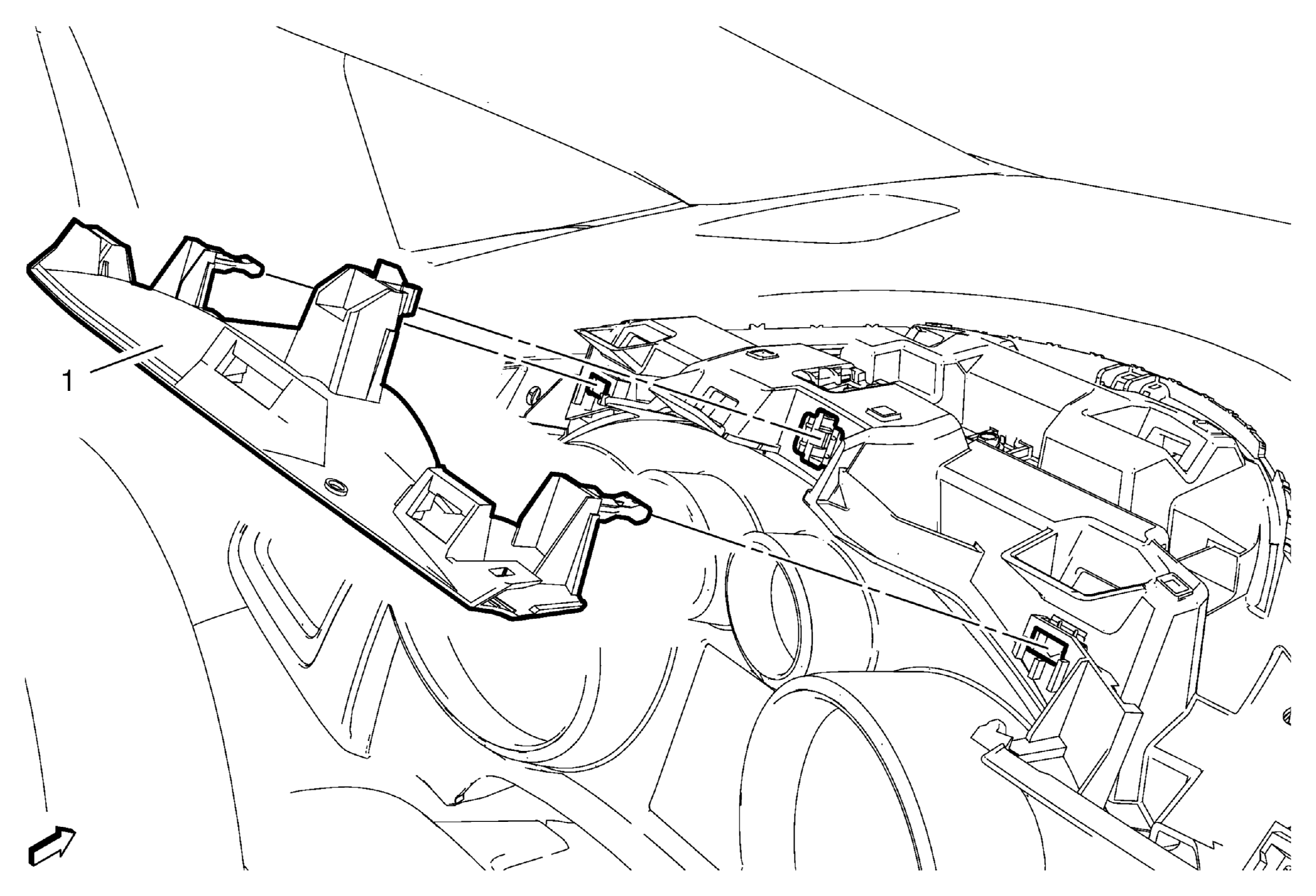

  25. Fig 12: Instrument Cluster Cover
    GM2968046Courtesy of GENERAL MOTORS COMPANY
  26. Install the instrument cluster cover (1). Refer to Instrument Cluster Cover Replacement .

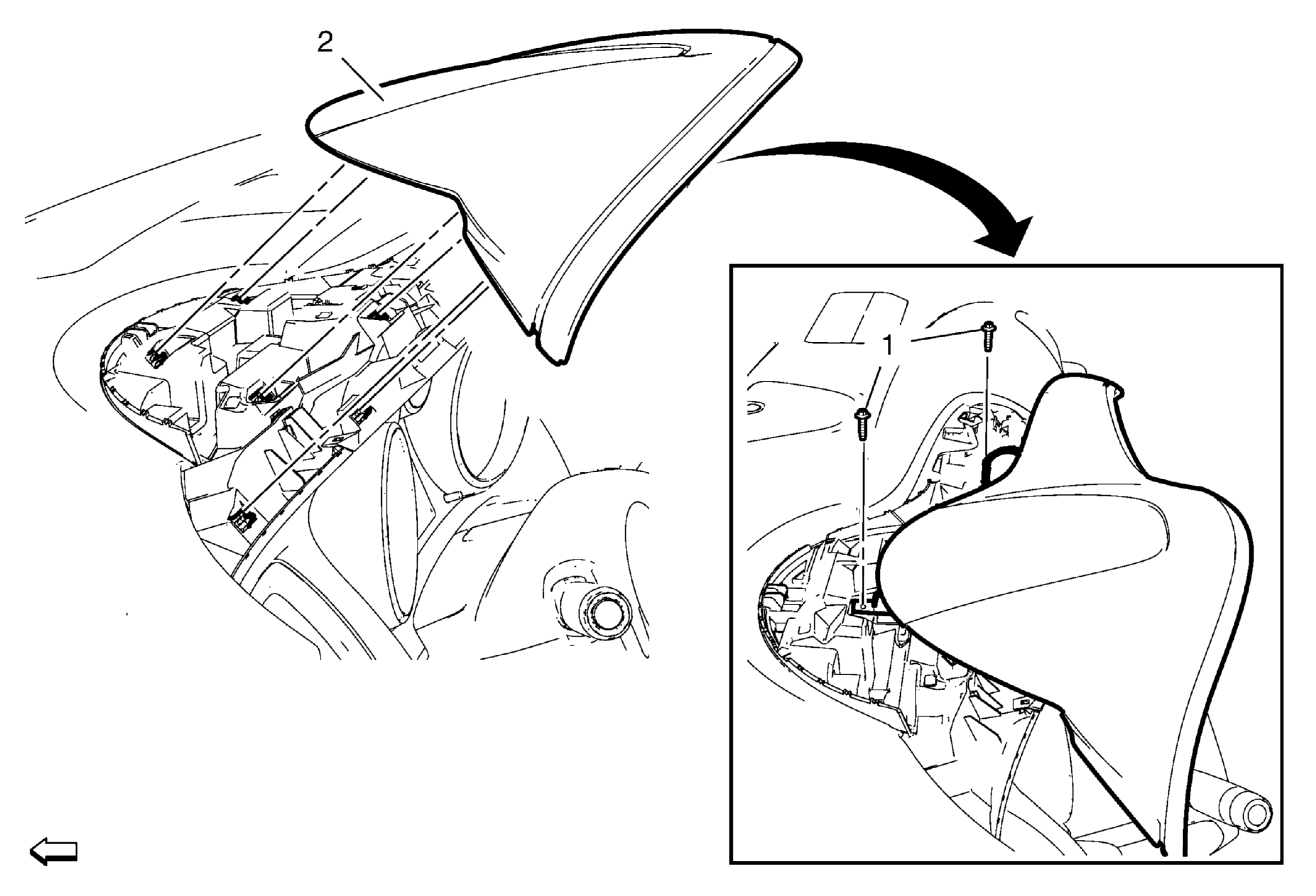

  27. Fig 13: Instrument Panel Instrument Cluster Hood
    GM2968054Courtesy of GENERAL MOTORS COMPANY
  28. Install the instrument panel instrument cluster hood (2). Refer to Instrument Panel Instrument Cluster Hood Replacement .

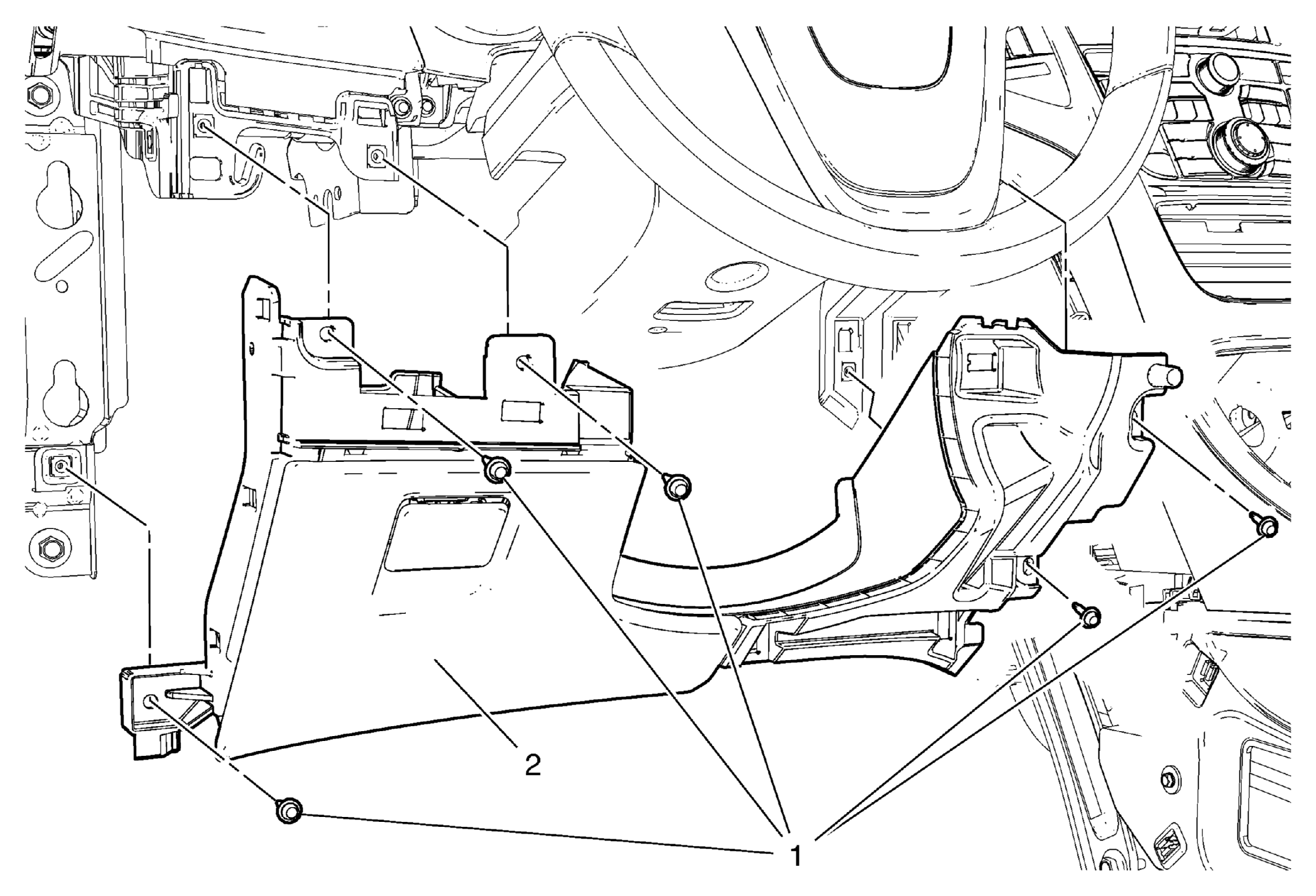

  29. Fig 14: Instrument Panel Lower Trim Panel
    GM2191263Courtesy of GENERAL MOTORS COMPANY
  30. Install the instrument panel lower trim panel (2). Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .

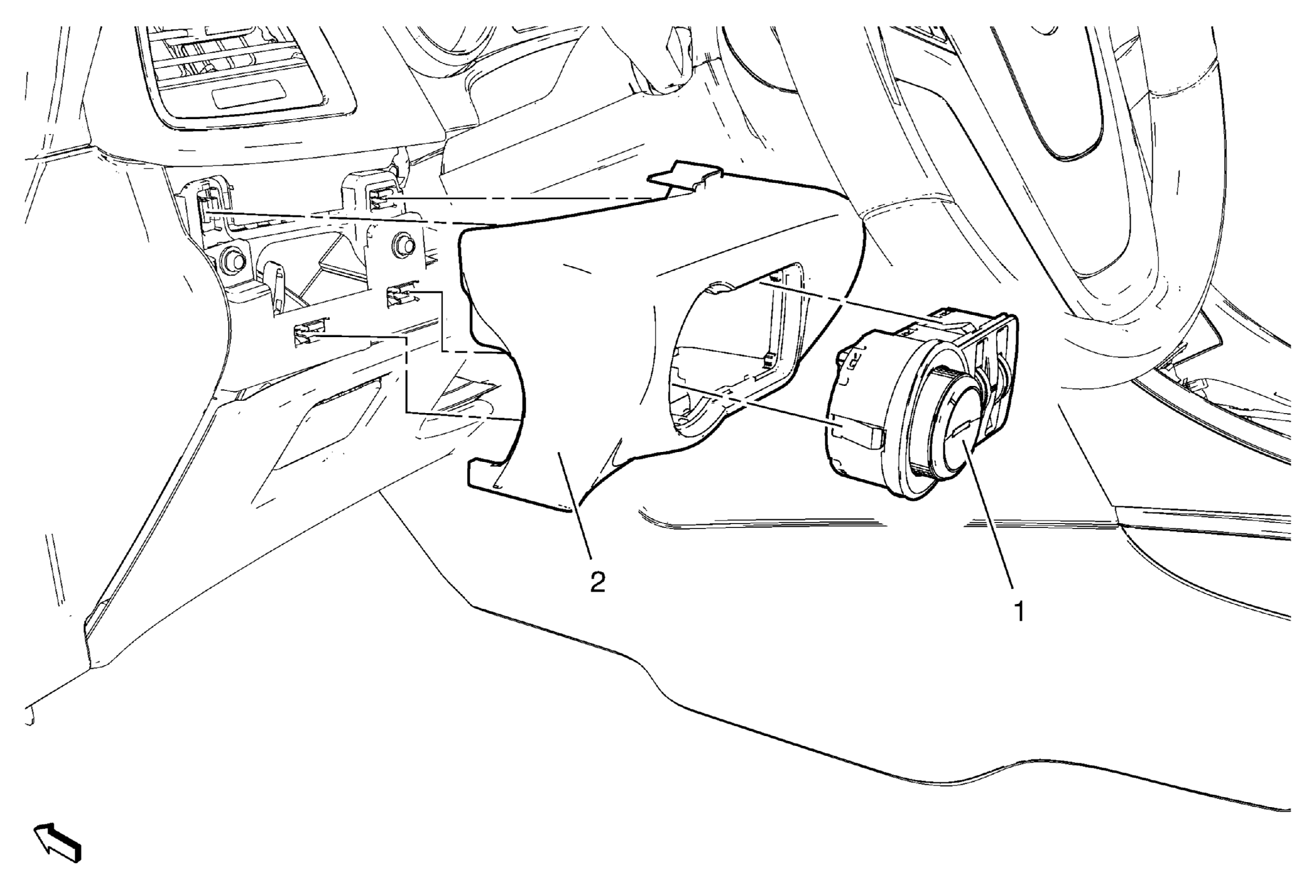

  31. Fig 15: Headlamp Switch & Molding
    GM2191228Courtesy of GENERAL MOTORS COMPANY
  32. Install the headlamp switch molding (2). Refer to Headlamp Switch Molding Replacement .

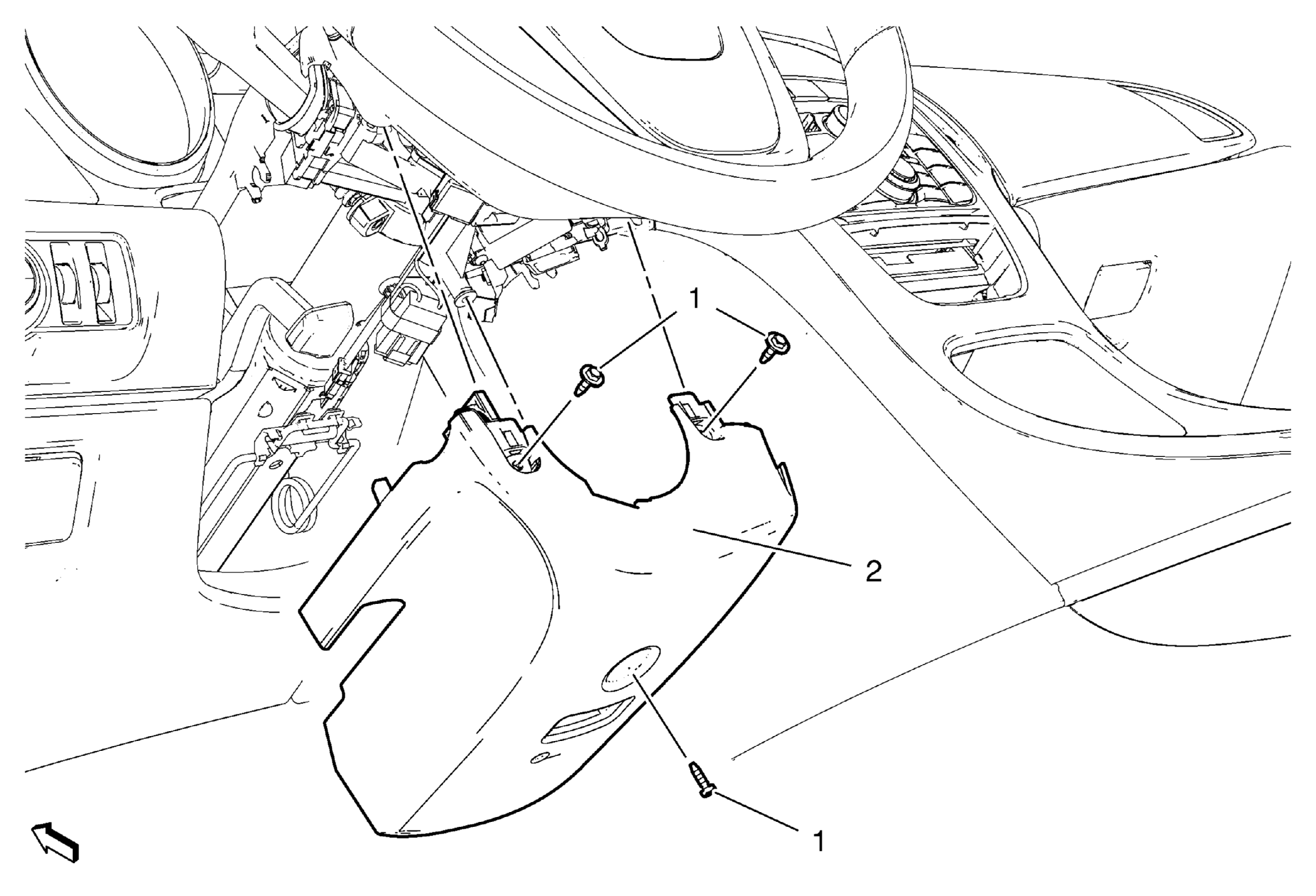

  33. Fig 16: Steering Column Lower Trim Cover & Bolts
    GM2191040Courtesy of GENERAL MOTORS COMPANY
  34. Install the steering column lower trim cover (2). Refer to Steering Column Lower Trim Cover Replacement .

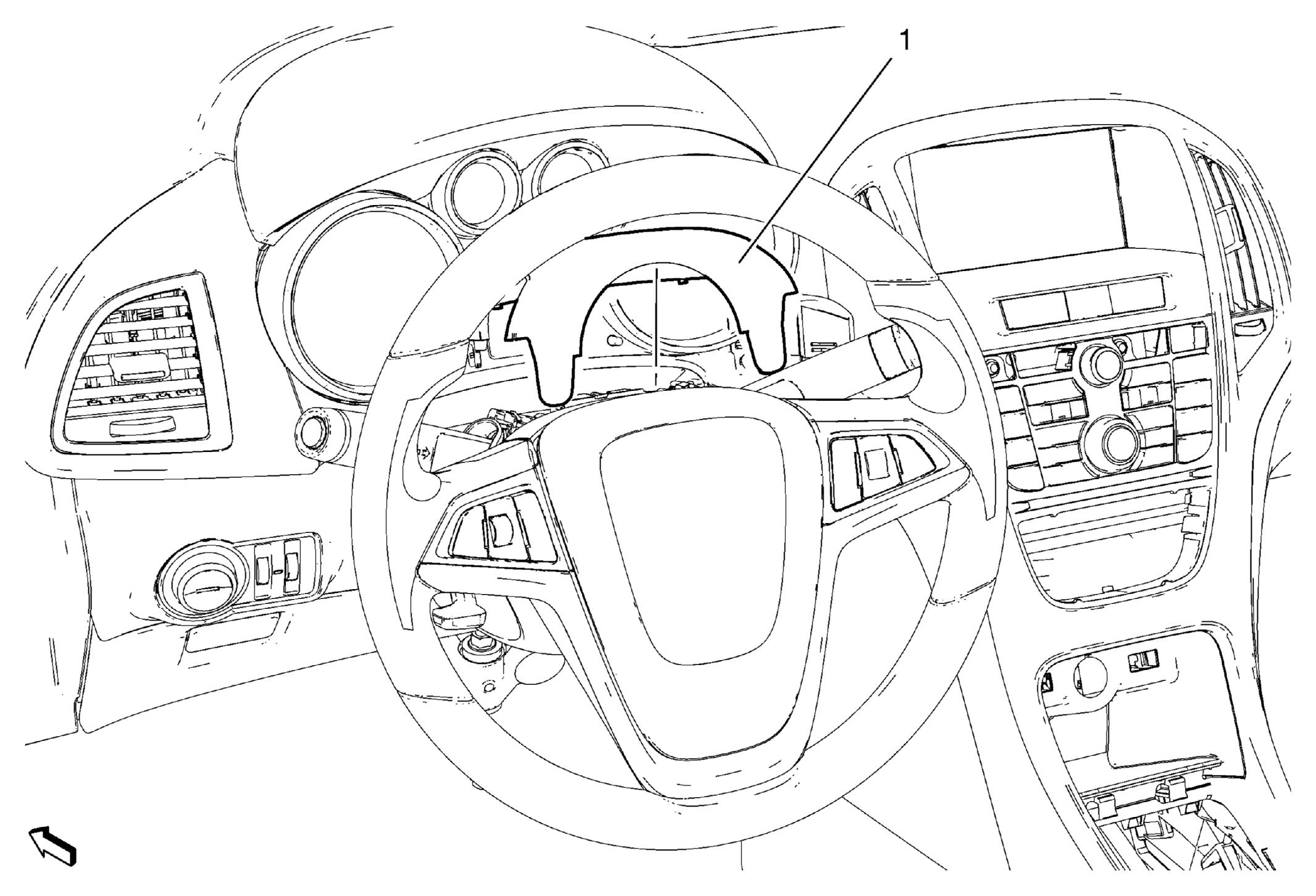

  35. Fig 17: Steering Column Upper Trim Cover
    GM2191035Courtesy of GENERAL MOTORS COMPANY
  36. Install the steering column upper trim cover (1). Refer to Steering Column Upper Trim Cover Replacement .

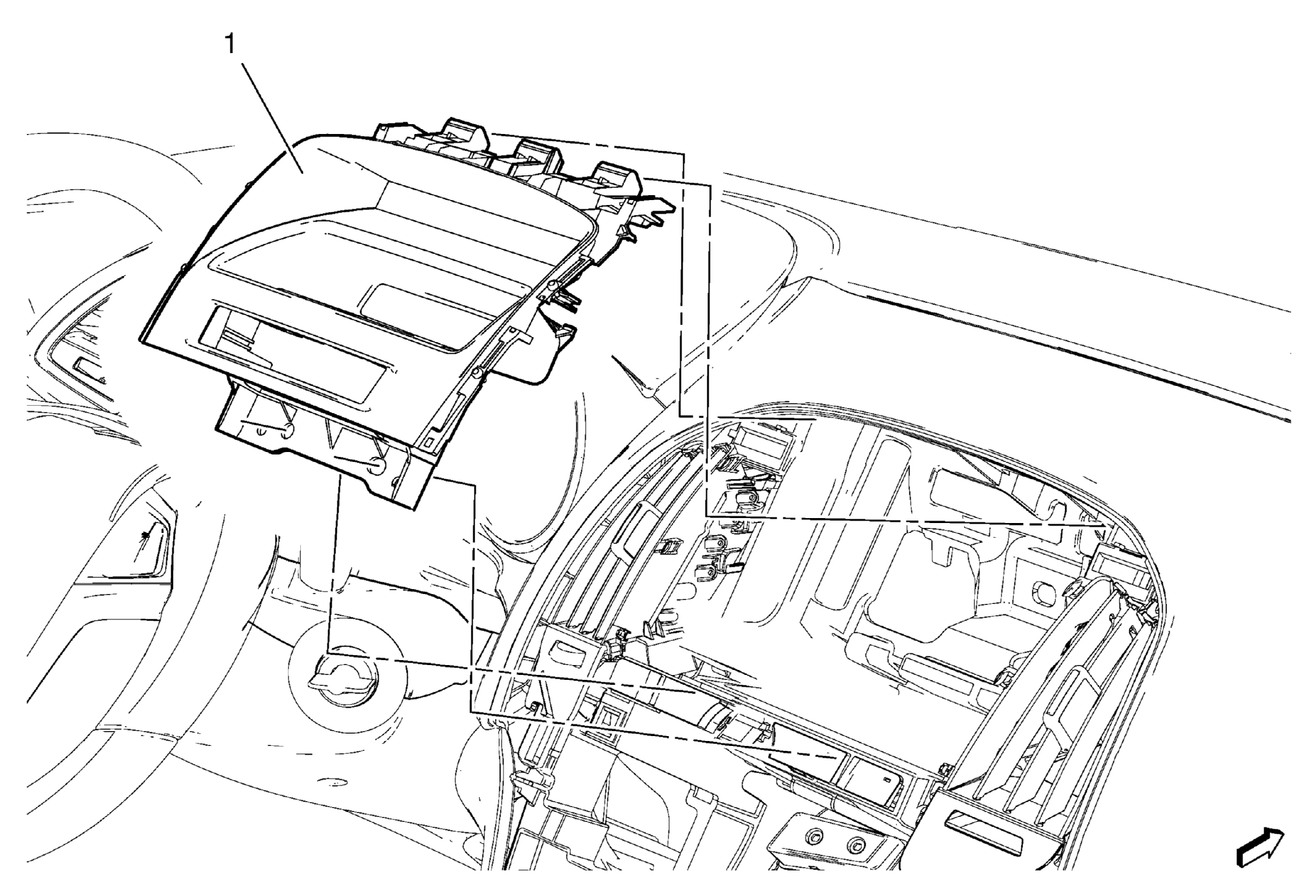

  37. Fig 18: Instrument Panel Upper Center Trim Panel
    GM2191415Courtesy of GENERAL MOTORS COMPANY
  38. Install the instrument panel upper center trim panel (1). Refer to Instrument Panel Upper Center Trim Panel Replacement .
  39. Fig 19: Radio
    GM2189508Courtesy of GENERAL MOTORS COMPANY
  40. Install the radio (1). Refer to Radio Replacement .
  41. Fig 20: Radio Control Assembly & Bolts
    GM2189509Courtesy of GENERAL MOTORS COMPANY
  42. Install the radio control assembly (3). Refer to Radio Control Assembly Replacement .

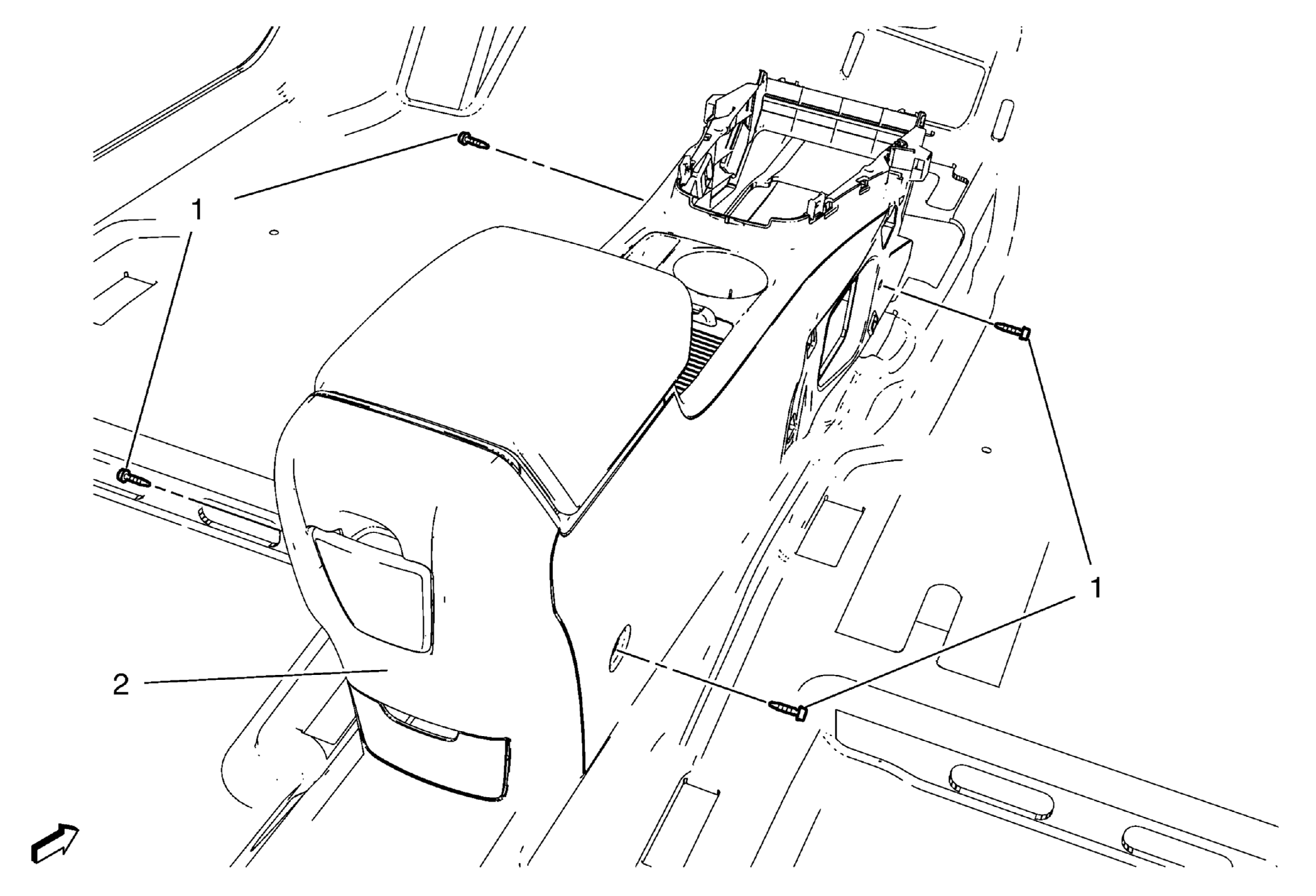

  43. Fig 21: Front Floor Console & Screws
    GM2190302Courtesy of GENERAL MOTORS COMPANY
  44. Install the front floor console (2). Refer to Front Floor Console Replacement .

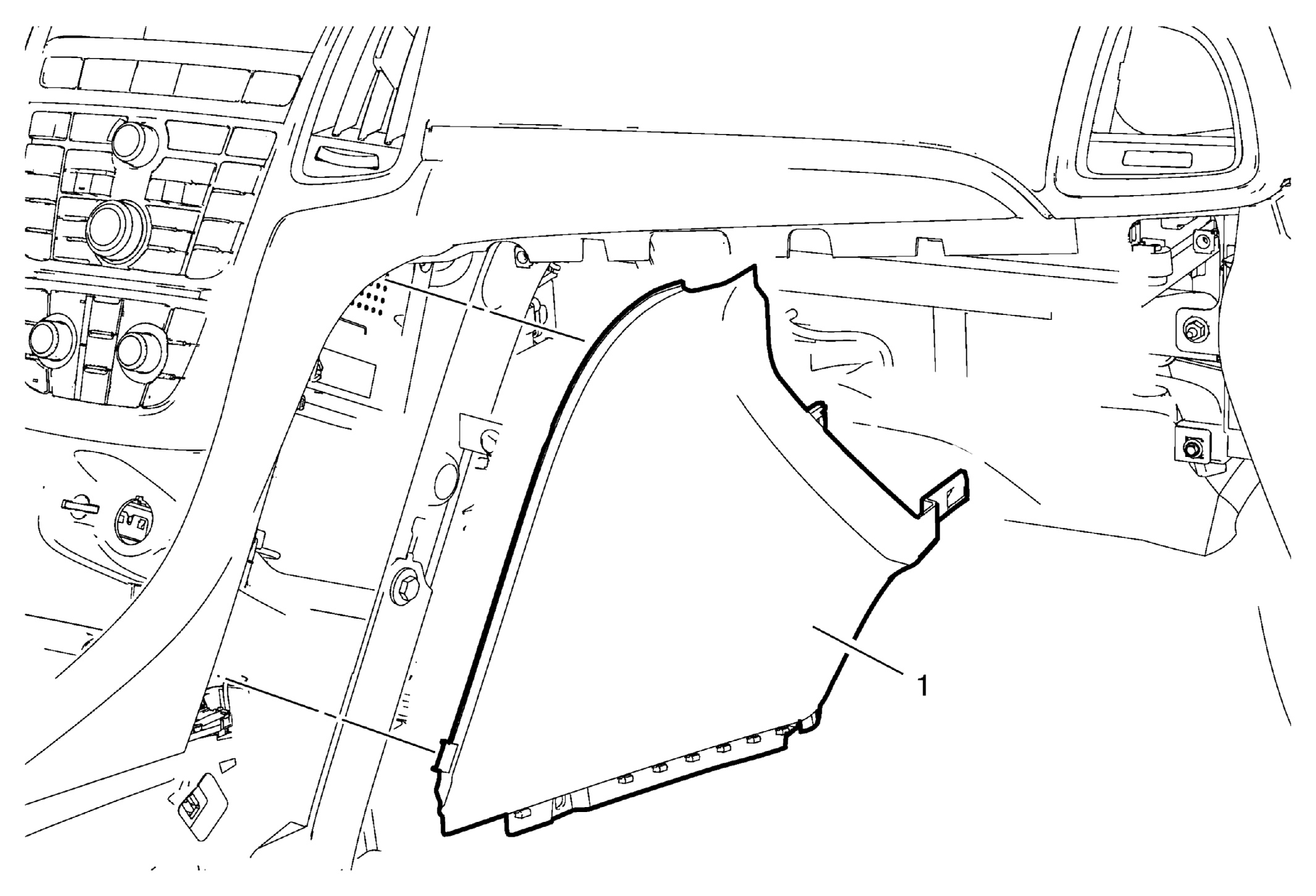

  45. Fig 22: Right Instrument Panel Extension
    GM2969196Courtesy of GENERAL MOTORS COMPANY
  46. Install the right instrument panel extension (1). Refer to Instrument Panel Extension Replacement .

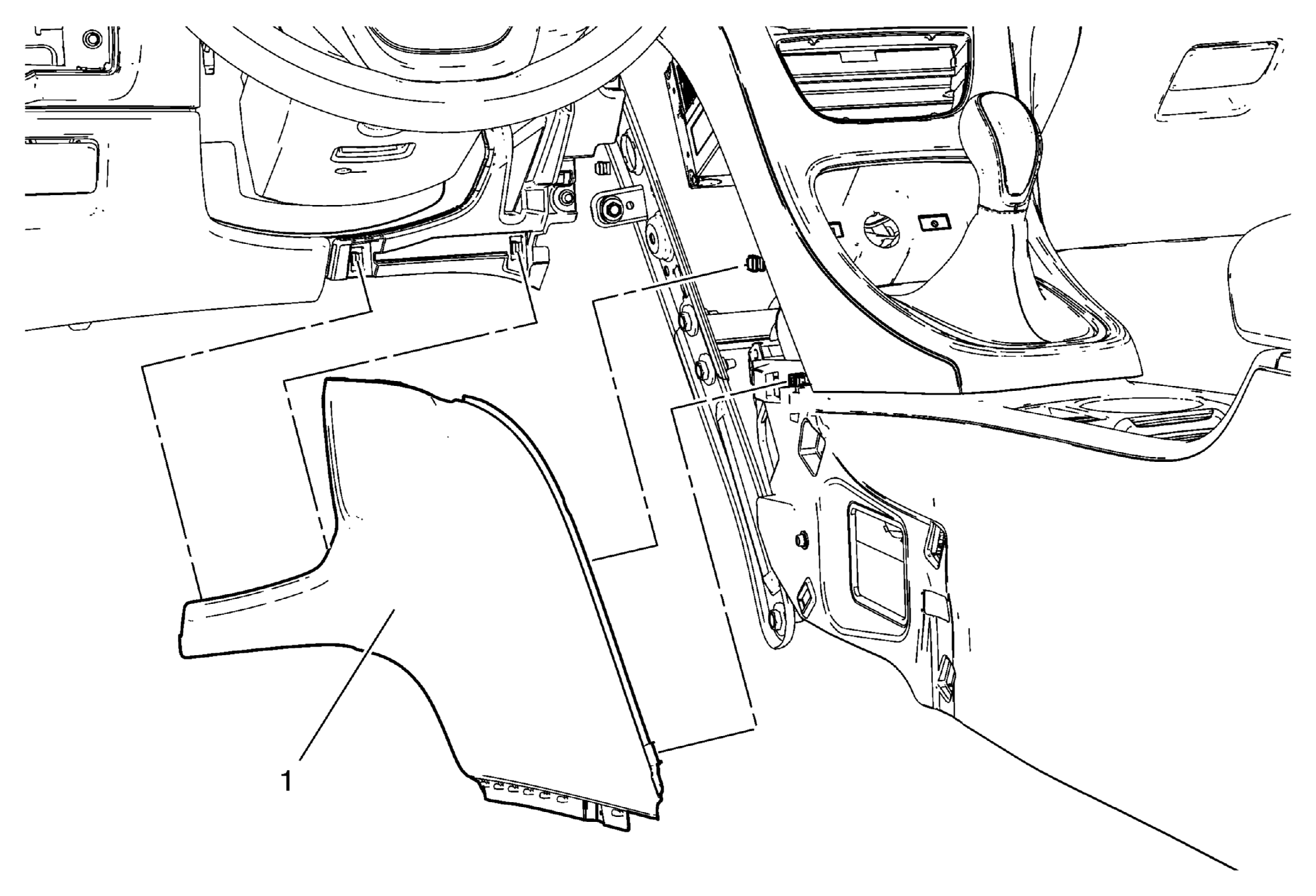

  47. Fig 23: Instrument Panel Extension
    GM2190305Courtesy of GENERAL MOTORS COMPANY
  48. Install the left instrument panel extension (1). Refer to Instrument Panel Extension Replacement .

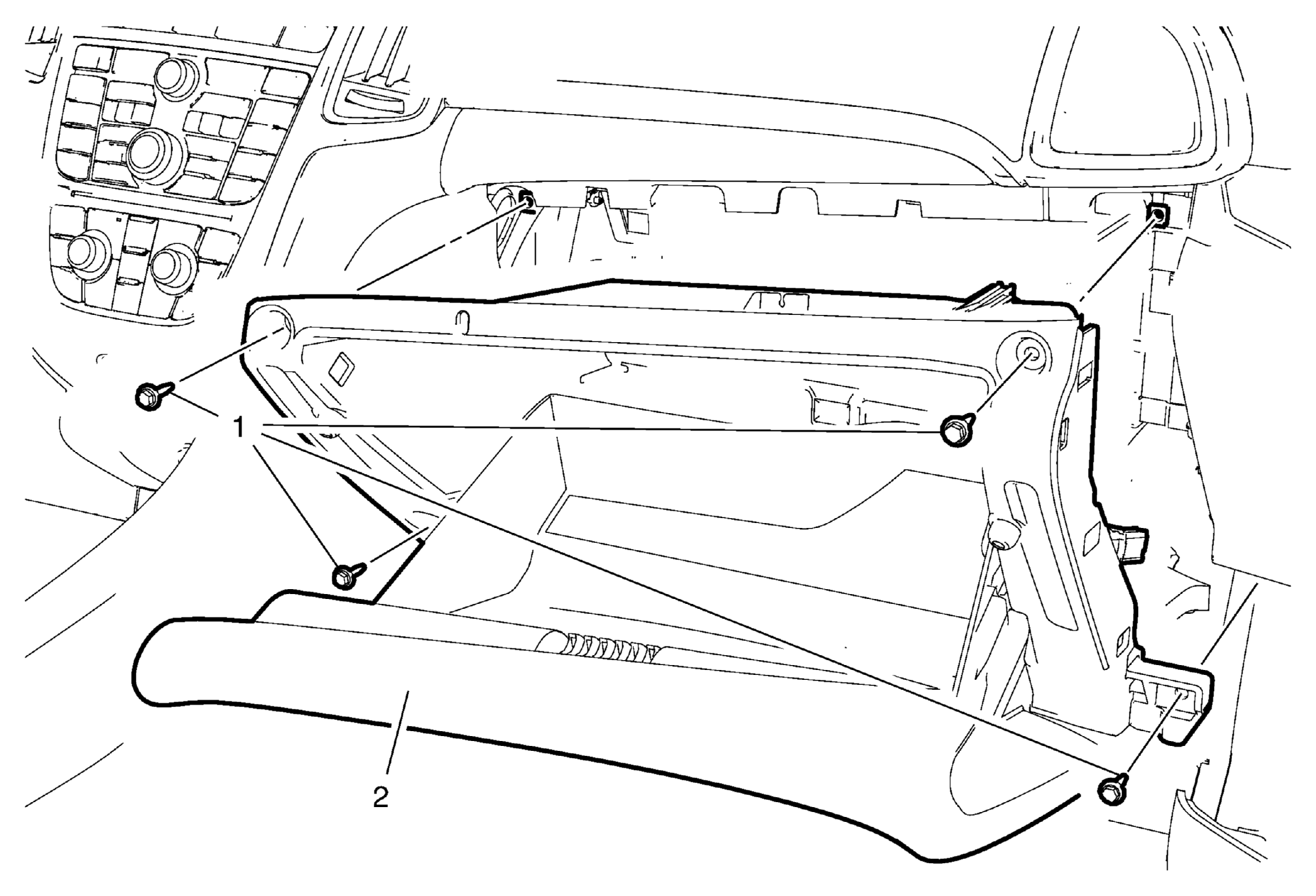

  49. Fig 24: Instrument Panel Compartment
    GM2969204Courtesy of GENERAL MOTORS COMPANY
  50. Install the instrument panel compartment (2). Refer to Instrument Panel Compartment Replacement .
  51. Fig 25: Instrument Panel Lower Airbag - Passenger Side
    GM2643499Courtesy of GENERAL MOTORS COMPANY
  52. If equipped, install the instrument panel lower airbag - passenger side (2). Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
  53. Fig 26: Instrument Panel Lower Airbag - Driver Side
    GM2643498Courtesy of GENERAL MOTORS COMPANY
  54. If equipped, install the instrument panel lower airbag - driver side (2). Refer to Instrument Panel Lower Airbag Replacement - Driver Side .

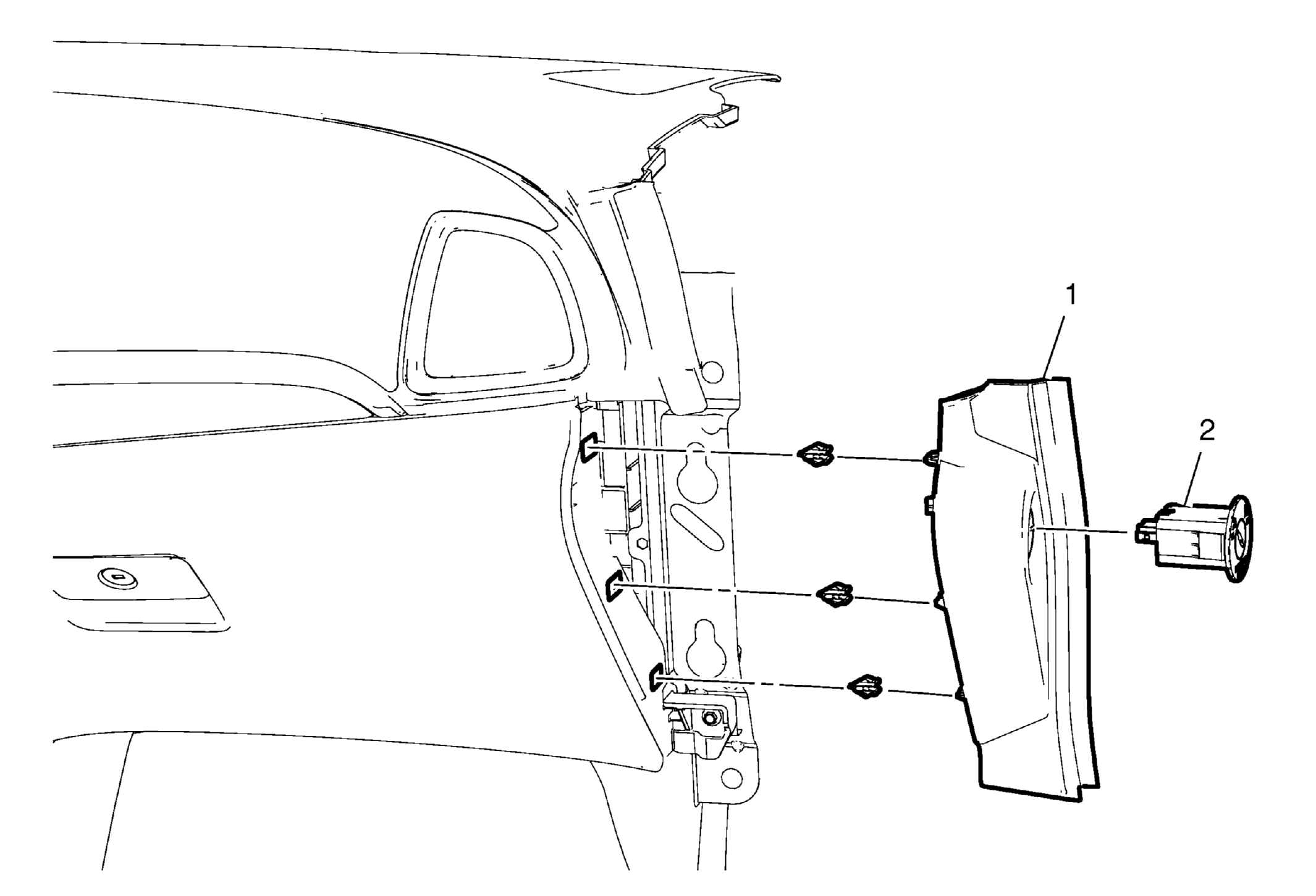

  55. Fig 27: Inflatable Restraint Instrument Panel Compartment Module Disable Switch
    GM2969199Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed, and its function is not verified, the airbag may discharge improperly and cause personal injury or death.

  56. Install the instrument panel outer trim cover (1) - right side. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side .
  57. If equipped, connect the inflatable restraint instrument panel compartment module disable switch (2).

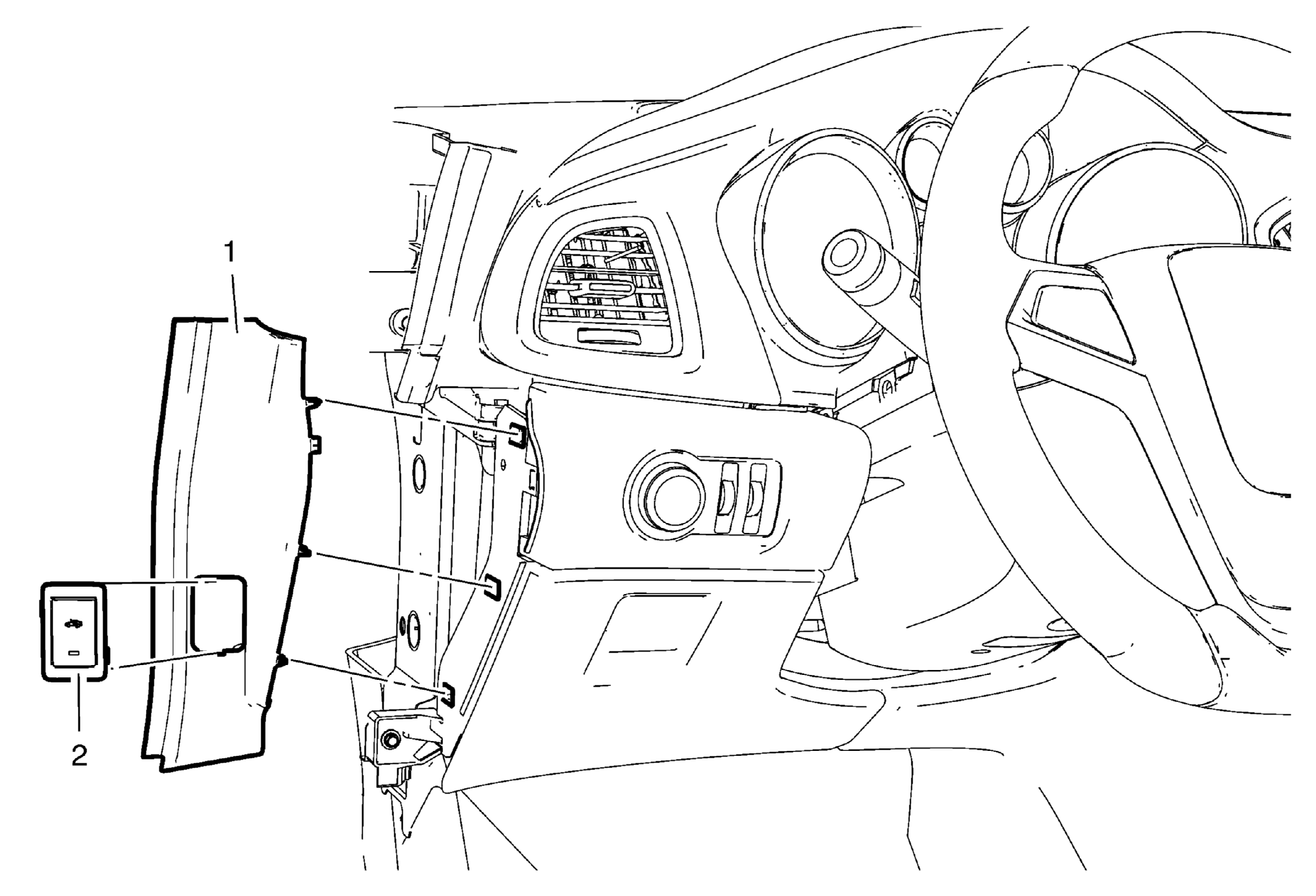

  58. Fig 28: Instrument Panel Outer Trim Cover
    GM2968057Courtesy of GENERAL MOTORS COMPANY
  59. Install the instrument panel outer trim cover (1) - left side. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
  60. If equipped, connect the theft deterrent passenger compartment sensor disable switch (2).

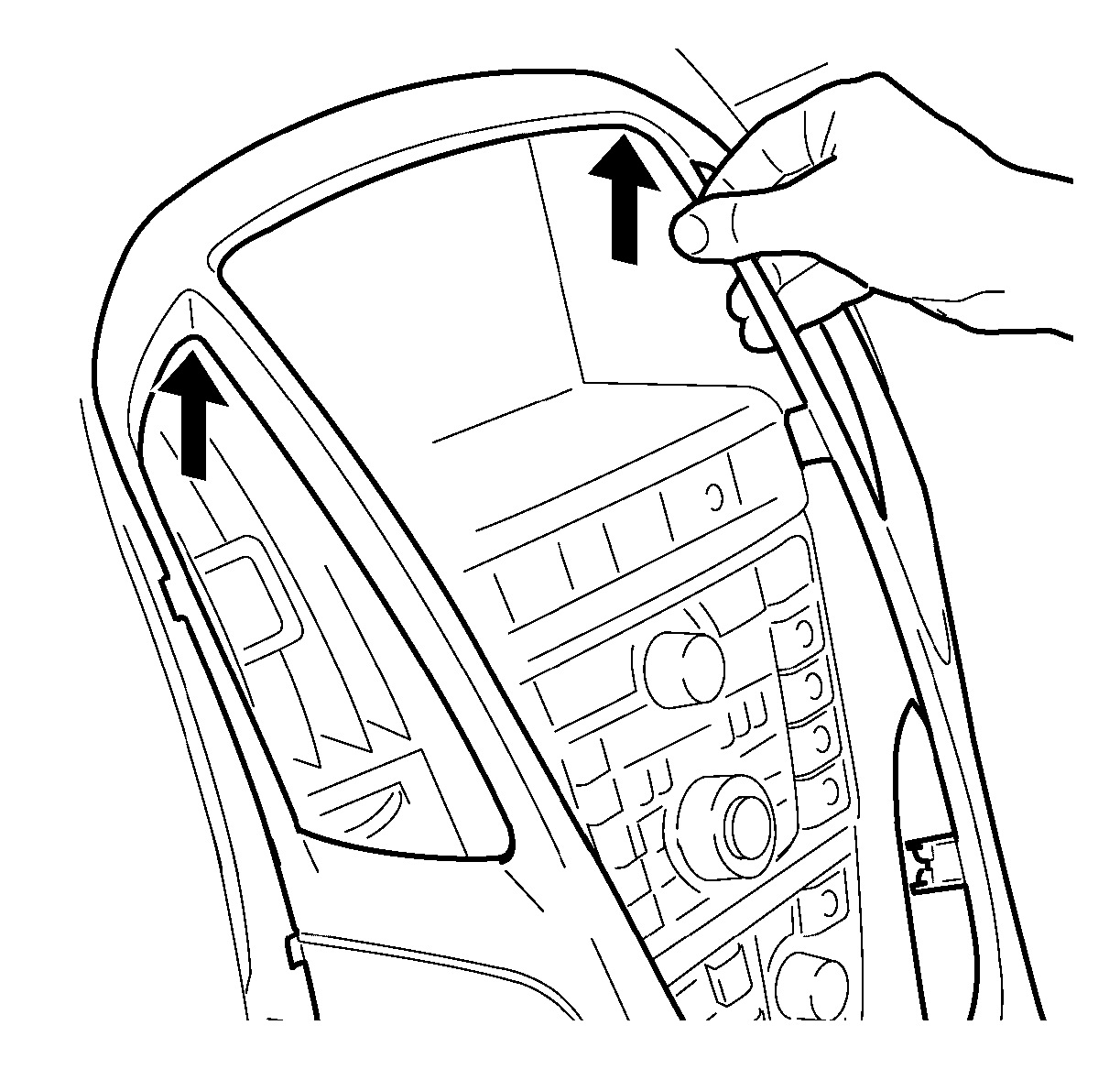

  61. Fig 29: Instrument Panel Center Trim Panel Upper Clip Points
    GM2192605Courtesy of GENERAL MOTORS COMPANY
  62. Install the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .

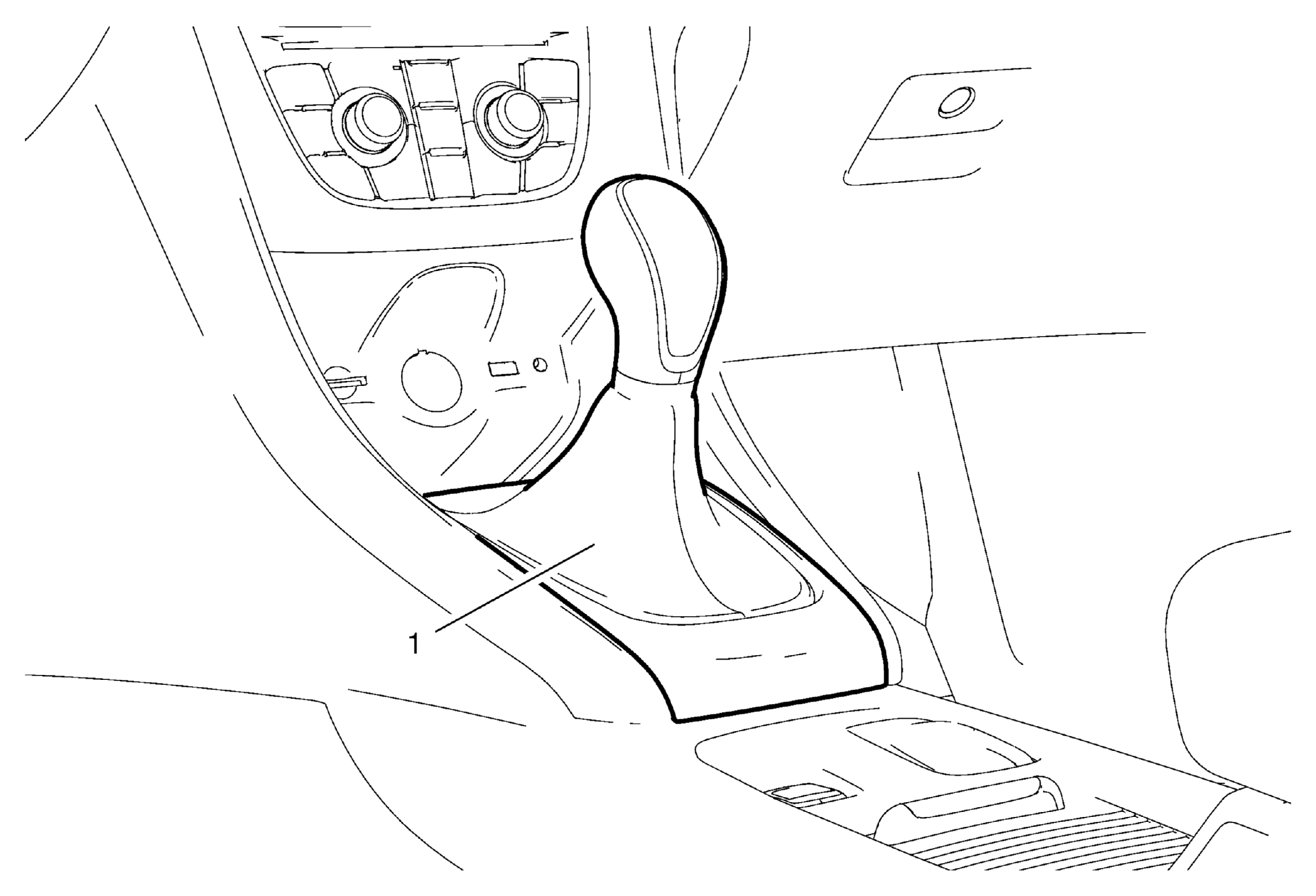

  63. Fig 30: Transmission Control Lever Boot
    GM2969209Courtesy of GENERAL MOTORS COMPANY
  64. Clip in the transmission control lever boot (1). Refer to Transmission Control Lever Knob Replacement

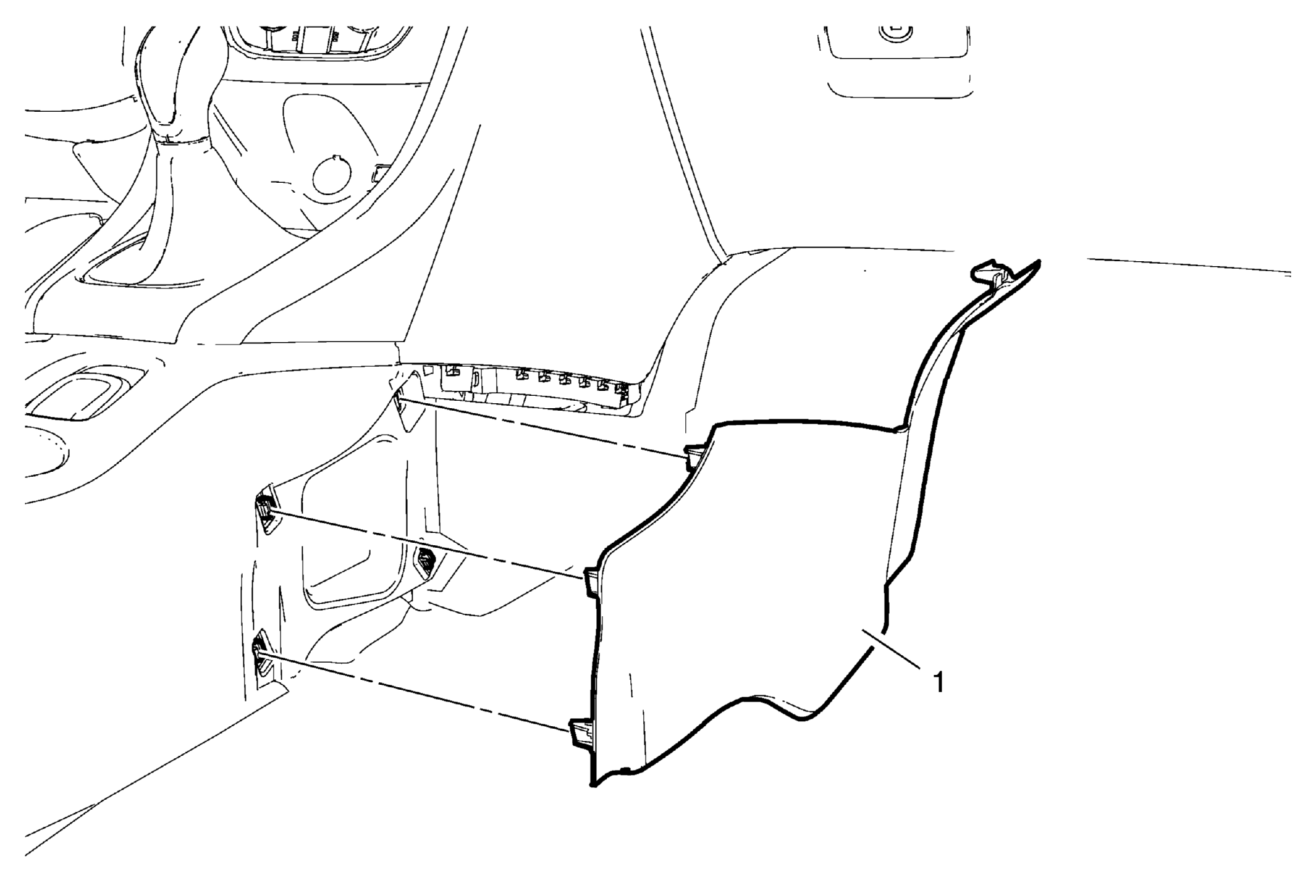

  65. Fig 31: Right Instrument Panel Lower Extension
    GM2969198Courtesy of GENERAL MOTORS COMPANY
  66. Install the right instrument panel lower extension (1). Refer to Instrument Panel Lower Extension Replacement .

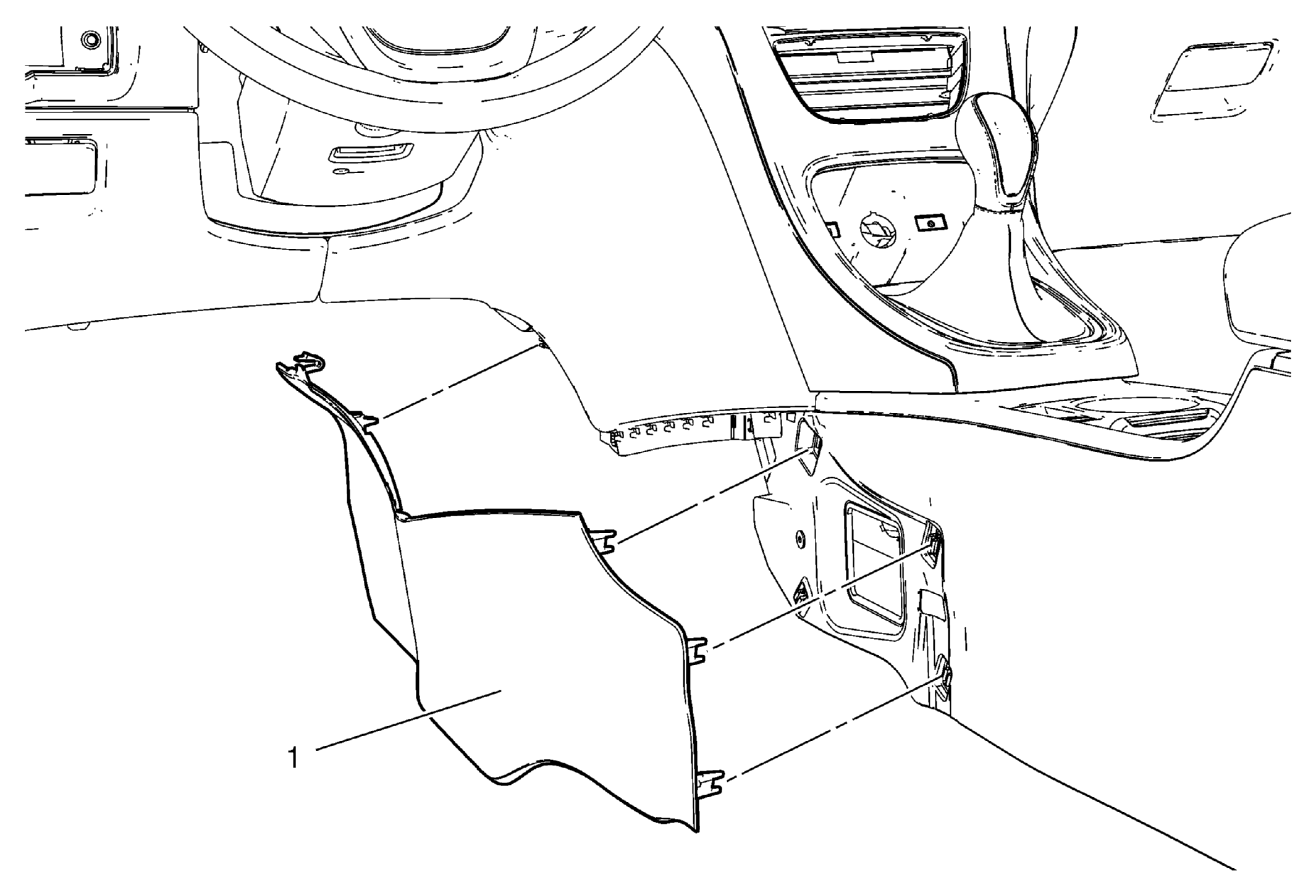

  67. Fig 32: Instrument Panel Lower Extension
    GM2190304Courtesy of GENERAL MOTORS COMPANY
  68. Install the left instrument panel lower extension (1). Refer to Instrument Panel Lower Extension Replacement .

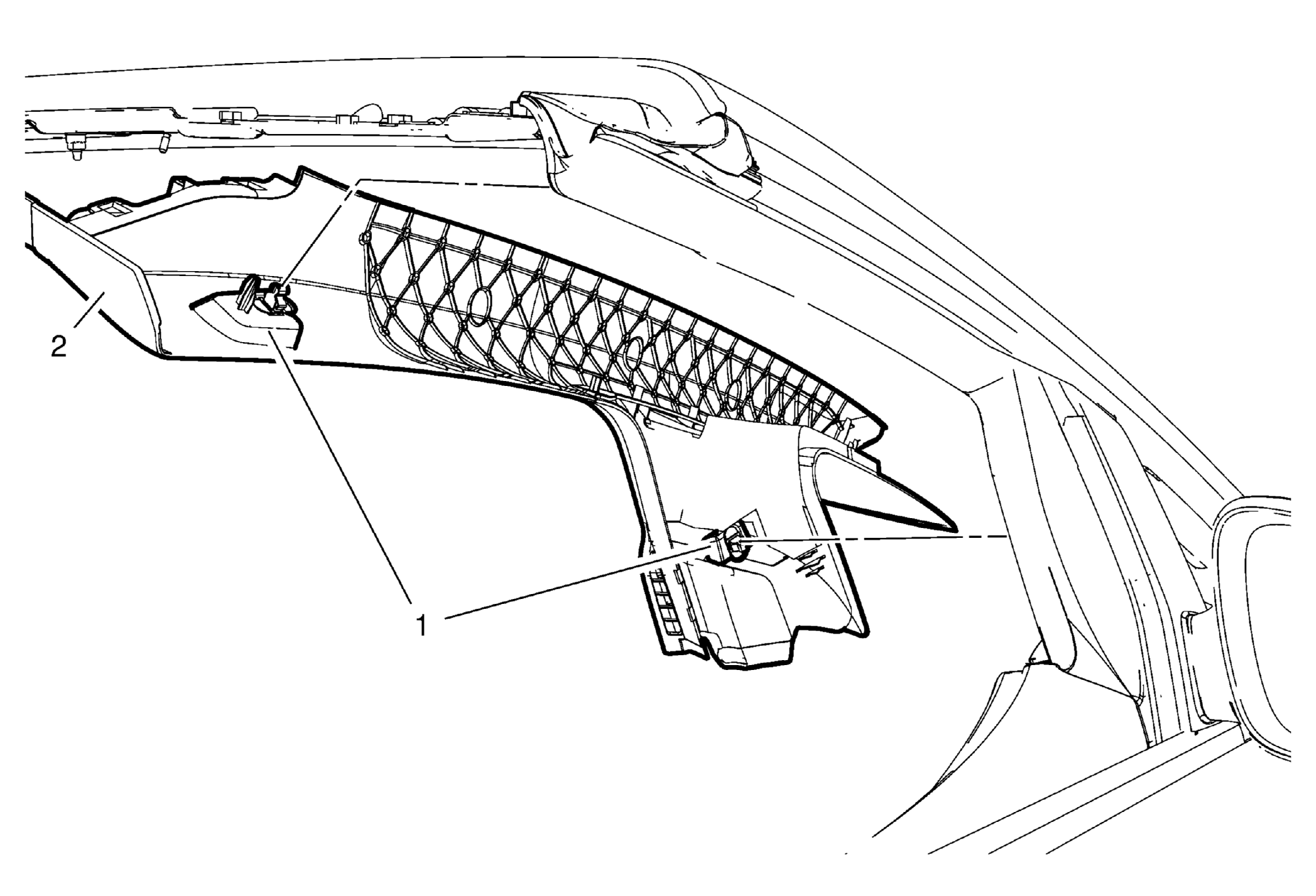

  69. Fig 33: Windshield Side Garnish Moldings
    GM2949084Courtesy of GENERAL MOTORS COMPANY
  70. Install both windshield side garnish moldings (2). Refer to Windshield Side Garnish Molding Replacement .
  71. Enable the SIR system. Refer to SIR Disabling and Enabling .
