Front of the Engine Compartment Components

Front of the Engine Compartment Components

Items
1. P12 Horn P12 Horn
2. B59 Front Impact Sensor B59 Front Impact Sensor
3. B55 Hood Ajar Switch B55 Engine Hood Switch

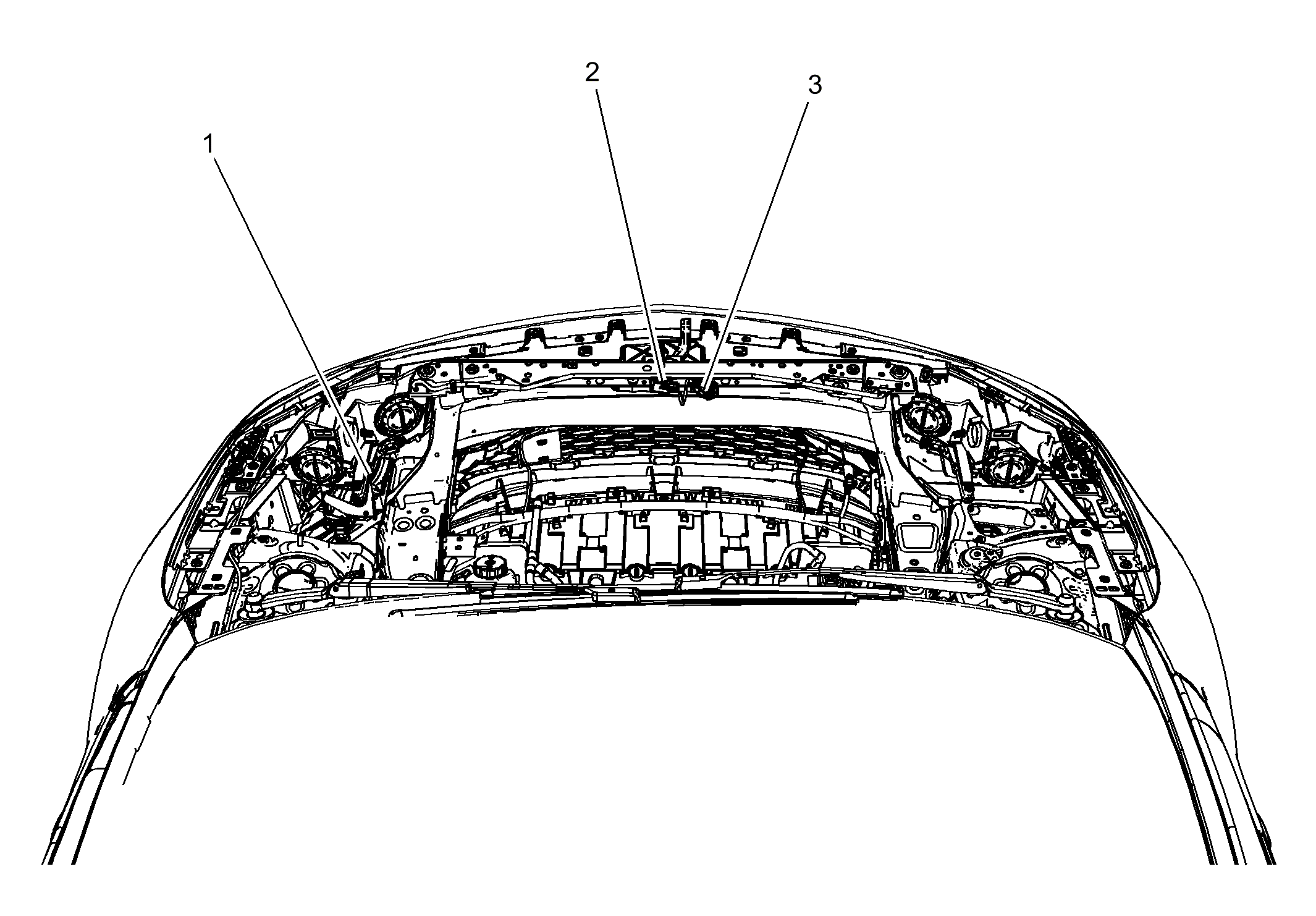

Fig 1: Front of the Engine Compartment Components
GM2918332Courtesy of GENERAL MOTORS COMPANY
