Installation Procedure

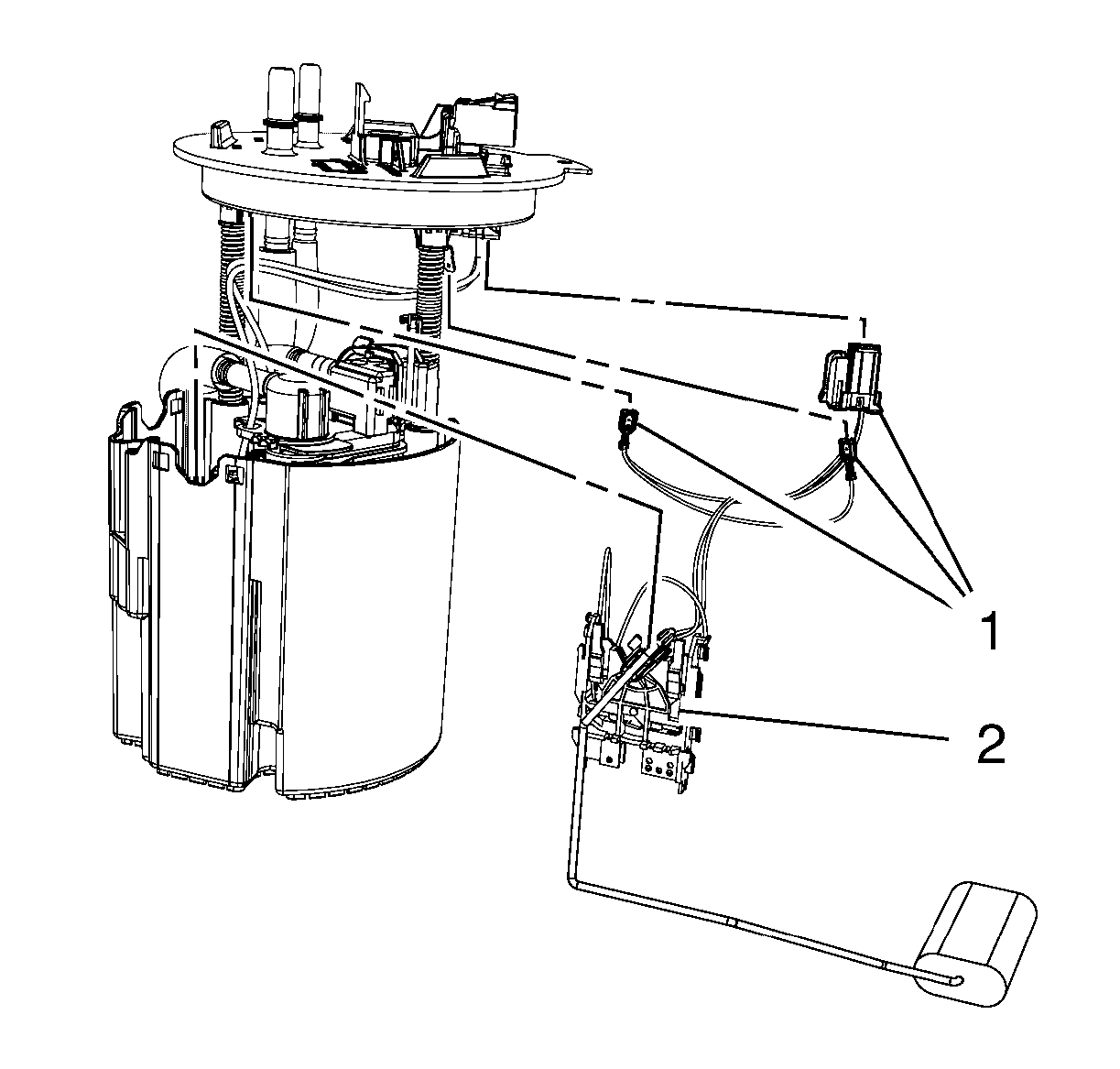

    Fig 1: Fuel Sender Assembly
    GM2371645Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel sender assembly (2).
  2. Connect the fuel sender assembly wiring harness plugs (1).
  3. Install the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
