Navigation Signal Splitter Replacement

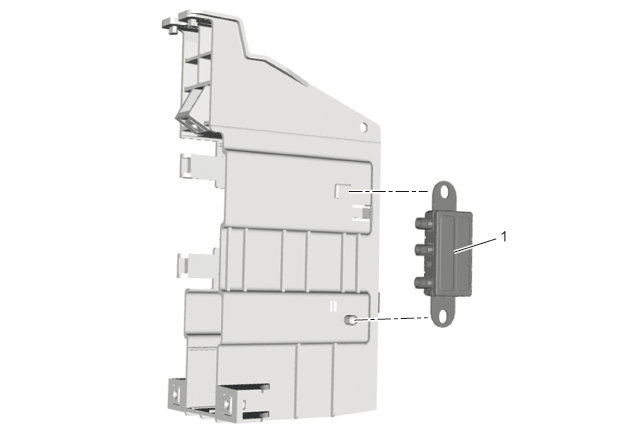

Fig 1: Navigation Signal Splitter
GM4213965Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Digital Radio Receiver Bracket Replacement
1 Navigation Signal Splitter
Procedure
Unlock the retaining tabs.
