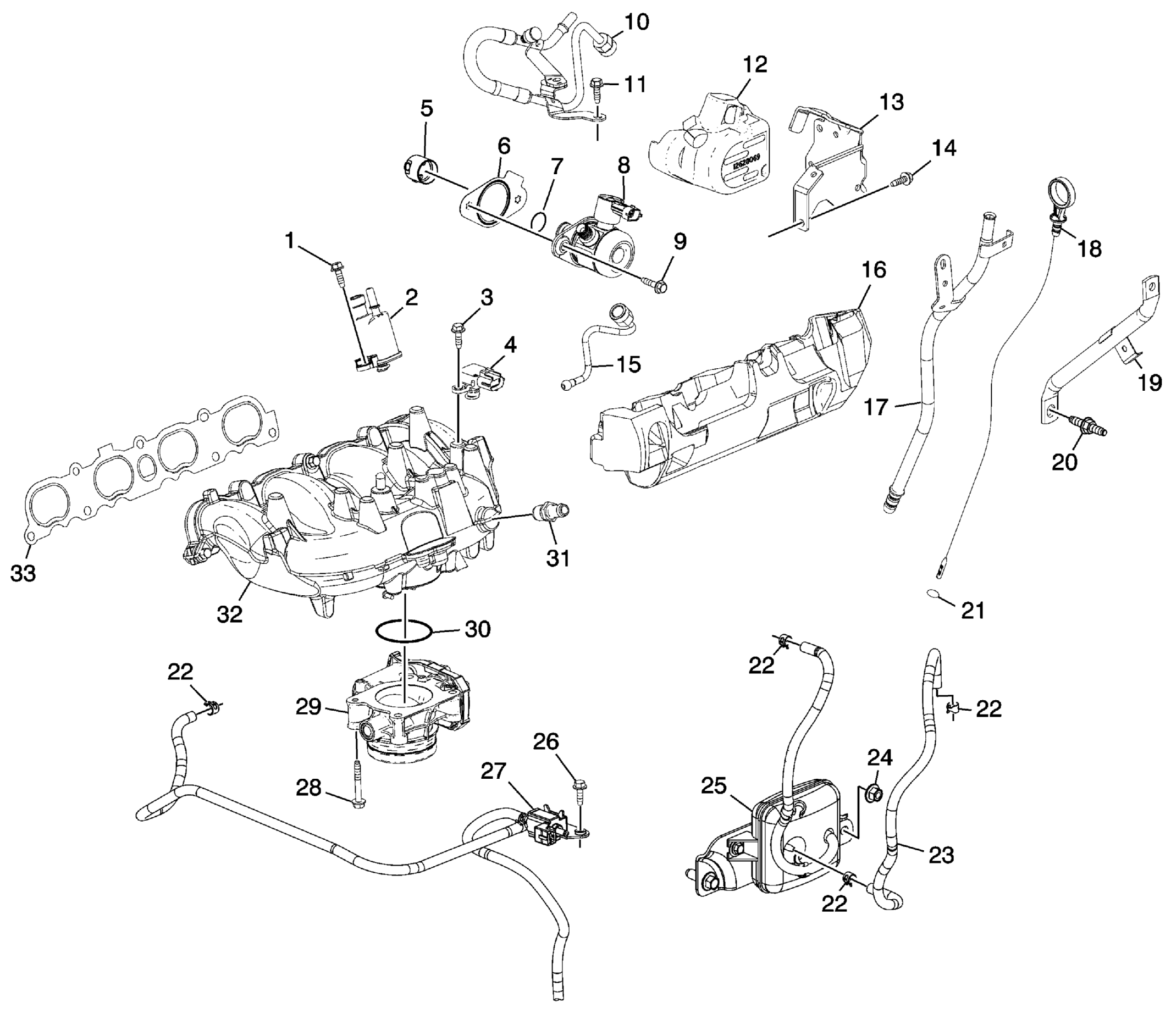

| 1 |
Evaporative (EVAP) Emission Purge Solenoid Valve Bolt |
| 2 |
EVAP Purge Solenoid Valve |
| 3 |
Manifold Absolute Pressure (MAP) Sensor Bolt |
| 4 |
MAP Sensor |
| 5 |
Fuel Pump Lifter |
| 6 |
High Pressure Fuel Pump Gasket |
| 7 |
High Pressure Fuel Pump O-Ring |
| 8 |
High Pressure Fuel Pump |
| 9 |
High Pressure Fuel Pump Bolt |
| 10 |
Fuel Feed Line |
| 11 |
Fuel Feed Line Bolt |
| 12 |
High Pressure Fuel Pump Insulator |
| 13 |
High Pressure Fuel Pump Cover |
| 14 |
High Pressure Fuel Pump Cover Bolt |
| 15 |
High Pressure Fuel Line |
| 16 |
Fuel Injector Insulator |
| 17 |
Oil Indicator Tube |
| 18 |
Oil Indicator |
| 19 |
Intake Manifold Brace |
| 20 |
Intake Manifold Brace Stud |
| 21 |
Oil Indicator O-Ring |
| 22 |
Charger AIR Bypass Tube Clamp |
| 23 |
Charger AIR Bypass Tube Assembly |
| 24 |
Charger AIR Bypass Valve Tank Assembly Nut |
| 25 |
Charger AIR Bypass Valve Tank Assembly, Some Models |
| 26 |
Charger AIR Bypass Valve Solenoid Bolt |
| 27 |
Charger AIR Bypass Valve Solenoid |
| 28 |
Throttle Body Bolt |
| 29 |
Throttle Body |
| 30 |
Throttle Body Seal |
| 31 |
Power Brake Booster Fitting |
| 32 |
Intake Manifold |
| 33 |
Intake Manifold Gasket |
