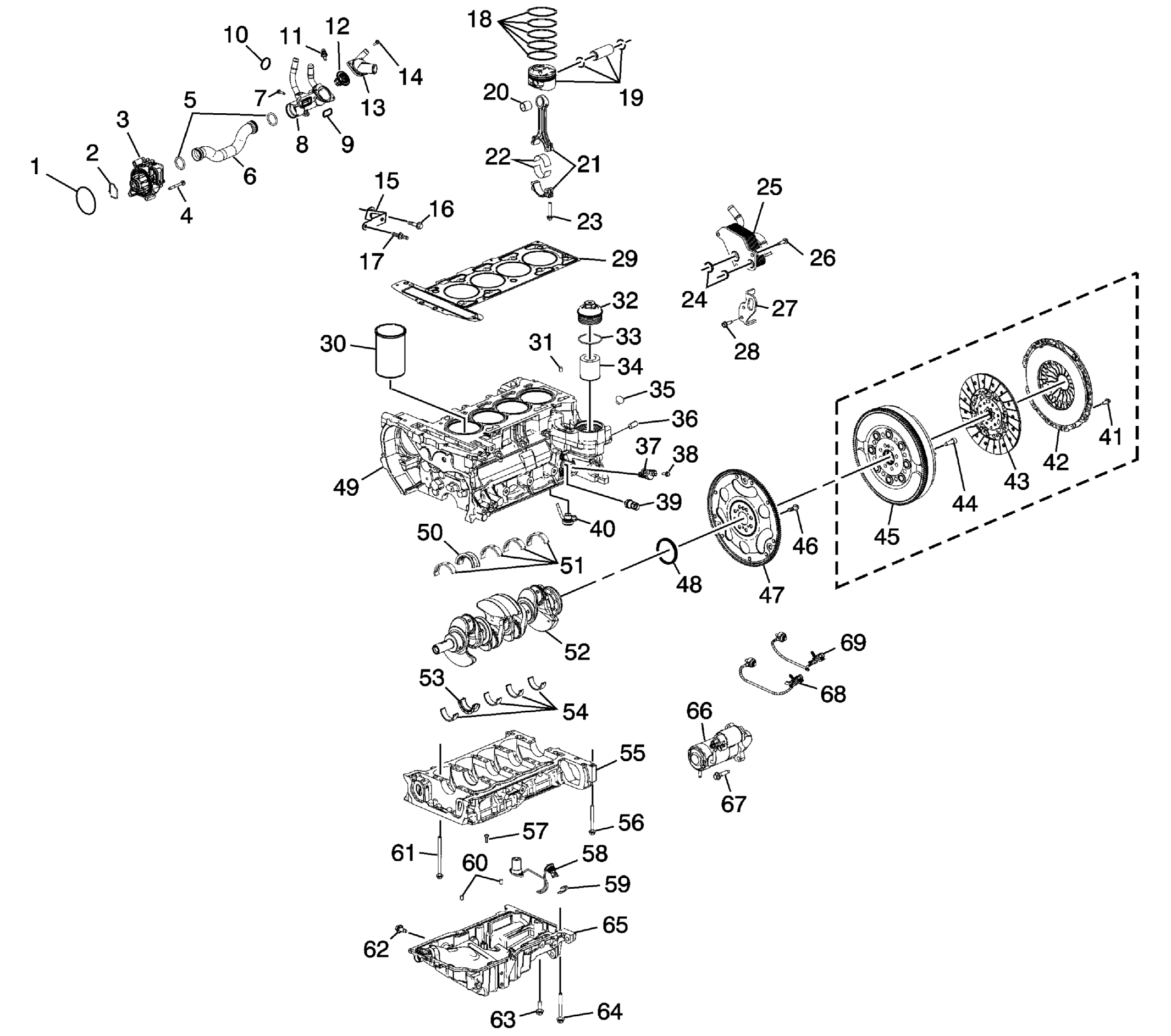

| 1 |
Water Pump to Engine Block Seal |
| 2 |
Water Pump Seal |
| 3 |
Water Pump |
| 4 |
Water Pump Bolt |
| 5 |
Outlet Pipe O-rings |
| 6 |
Outlet Pipe |
| 7 |
Coolant Thermostat Housing Bolt |
| 8 |
Coolant Thermostat Housing |
| 9 |
Thermostat Housing to Block Gasket |
| 10 |
Coolant Thermostat Housing Seal |
| 11 |
Coolant Temperature Sensor |
| 12 |
Thermostat |
| 13 |
Coolant Inlet |
| 14 |
Coolant Inlet Bolt |
| 15 |
Water Pipe Support Bracket |
| 16 |
Water Pipe Support Bracket Bolt |
| 17 |
Water Pipe Support Bracket Bolt Stud |
| 18 |
Piston Ring Assembly |
| 19 |
Piston Assembly |
| 20 |
Connecting Rod Bushing |
| 21 |
Connecting Rod |
| 22 |
Connecting Rod Bearing |
| 23 |
Connecting Rod Cap Bolt |
| 24 |
Oil Cooler O-ring |
| 25 |
Oil Cooler |
| 26 |
Oil Cooler Bolt |
| 27 |
Front Lift Bracket |
| 28 |
Front Lift Bracket Bolt |
| 29 |
Cylinder Head Gasket |
| 30 |
Cylinder Bore Liner |
| 31 |
Cylinder Head Alignment Pin |
| 32 |
Oil Filter Cap |
| 33 |
Oil Filter Cap O-ring |
| 34 |
Oil Filter |
| 35 |
Engine Block Gallery Plug |
| 36 |
Engine Block to Transaxle Alignment Pin |
| 37 |
Crankshaft Position Sensor |
| 38 |
Crankshaft Position Sensor Bolt |
| 39 |
Oil Pressure Switch |
| 40 |
Piston Oil Nozzle Assembly |
| 41 |
Clutch Pressure Plate Bolt |
| 42 |
Clutch Pressure Plate |
| 43 |
Clutch Driven Plate |
| 44 |
Manual Transaxle Flywheel to Crankshaft Bolt |
| 45 |
Flywheel - Manual Transaxle |
| 46 |
Automatic Transaxle Flywheel to Crankshaft Bolt |
| 47 |
Flywheel - Automatic Transaxle |
| 48 |
Crankshaft Rear Seal |
| 49 |
Engine Block |
| 50 |
Crankshaft Thrust Bearing - Upper |
| 51 |
Crankshaft Bearing - Upper |
| 52 |
Crankshaft |
| 53 |
Crankshaft Thrust Bearing - Lower |
| 54 |
Crankshaft Bearing - Lower |
| 55 |
Lower Crankcase |
| 56 |
Lower Crankcase Perimeter Bolt |
| 57 |
Oil Level Indicator Plate Bolt |
| 58 |
Engine Oil Level Sensor Assembly |
| 59 |
Engine Oil Level Sensor Retainer Ring |
| 60 |
Engine Oil Pan Alignment Pins |
| 61 |
Lower Crankcase Main Bearing Bolt |
| 62 |
Engine Oil Pan Drain Plug |
| 63 |
Engine Oil Pan Bolt |
| 64 |
Engine Oil Pan Long Bolt |
| 65 |
Engine Oil Pan |
| 66 |
Starter |
| 67 |
Starter Bolt |
| 68 |
Knock Sensor - Front |
| 69 |
Knock Sensor - Rear |
