Power, Ground, and Subsystem References (1 of 4)

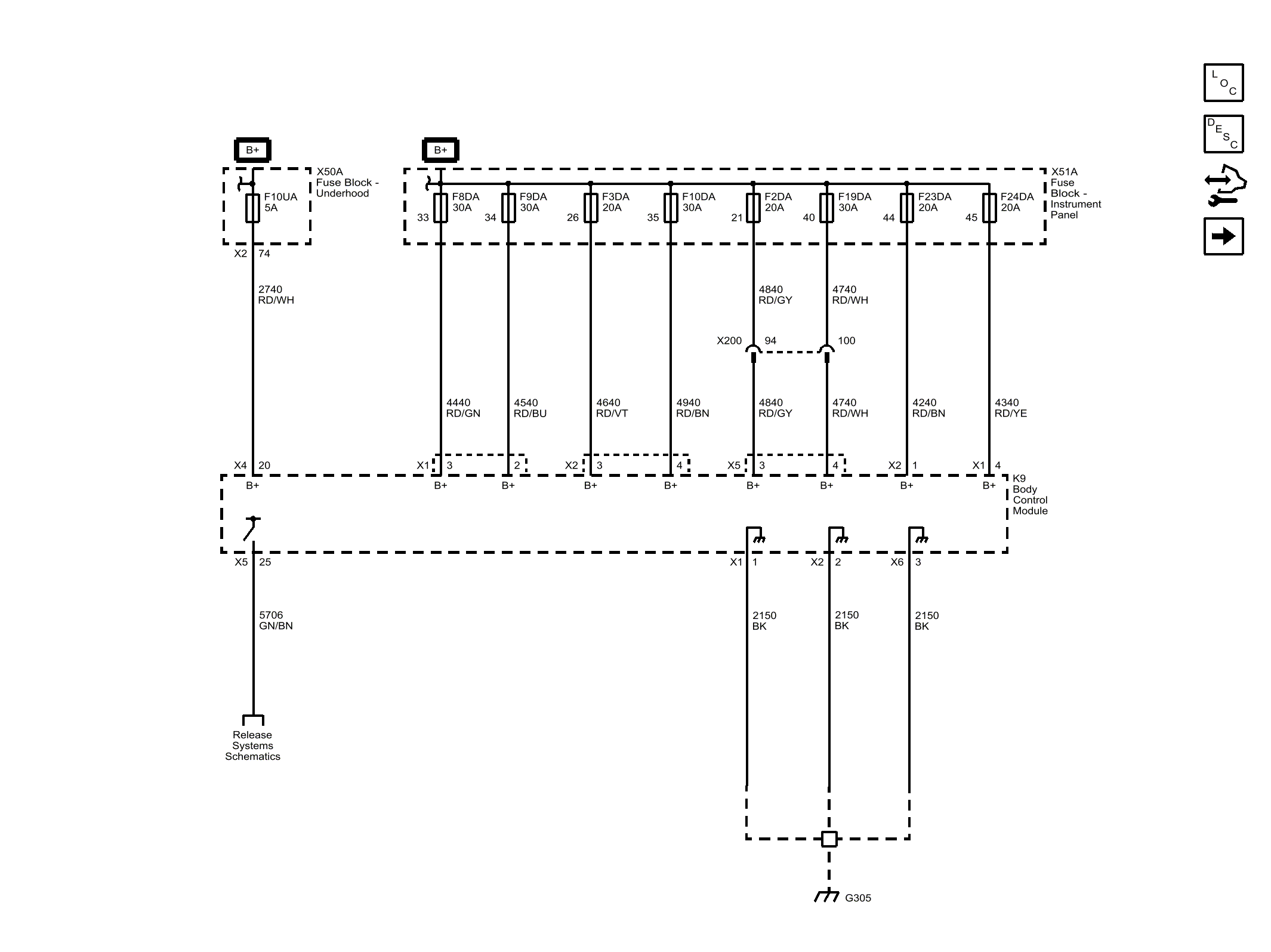

Fig 1: Power, Ground, and Subsystem References (1 of 4)

GM3802104

Courtesy of GENERAL MOTORS COMPANY
