Installation Procedure

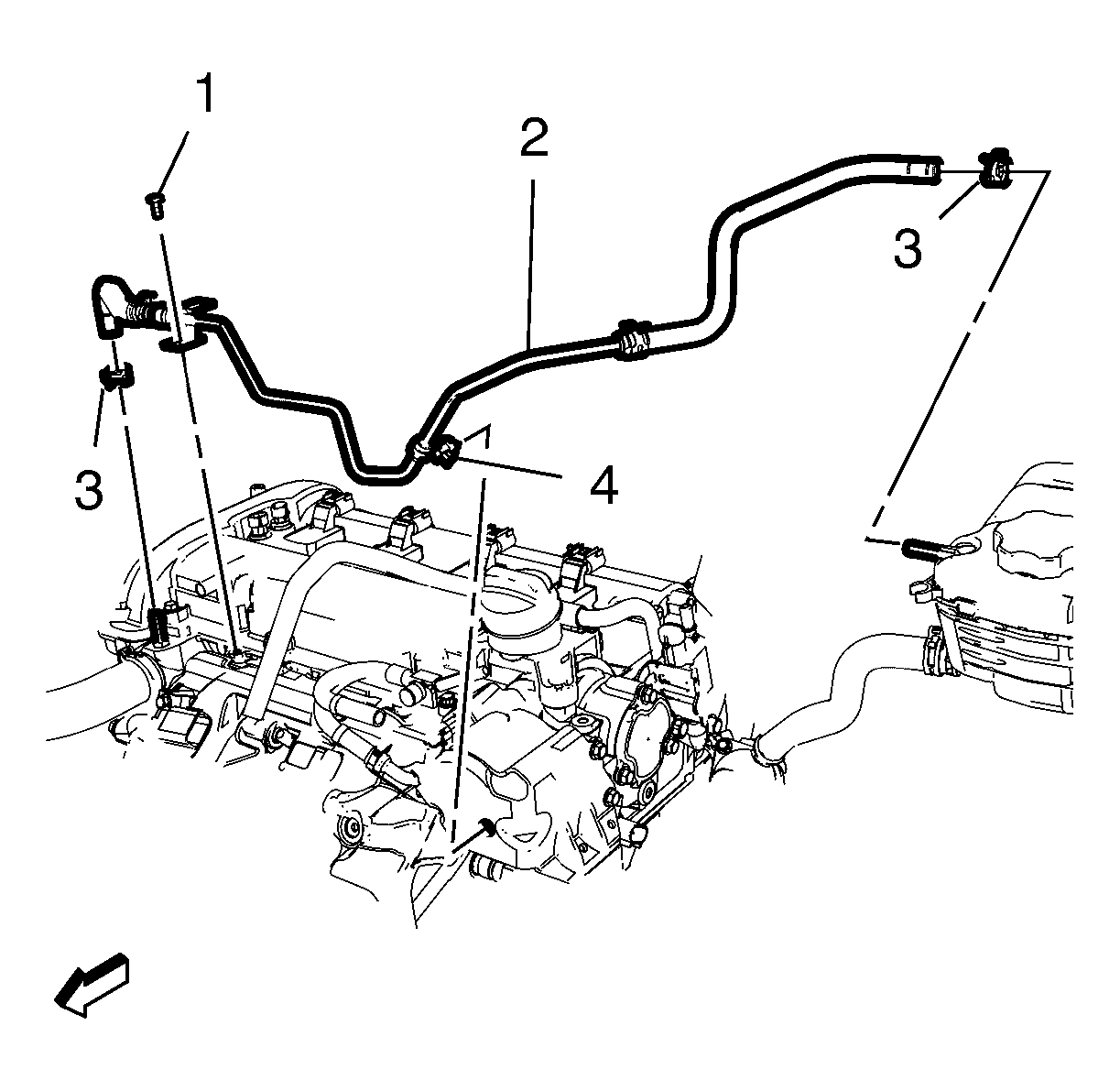

    Fig 1: Radiator Surge Tank Inlet Hose/Pipe & Components
    GM2594936Courtesy of GENERAL MOTORS COMPANY
  1. Install the radiator surge tank inlet hose/pipe (2) and the 2 clamps (3)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the radiator surge tank inlet hose/pipe bolt (1) and tighten to 10 N.m (89 lb in).
  3. Clip in the clip (4) to the fuel pump cover.
  4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
