Radiator Surge Tank Engine Hose Replacement

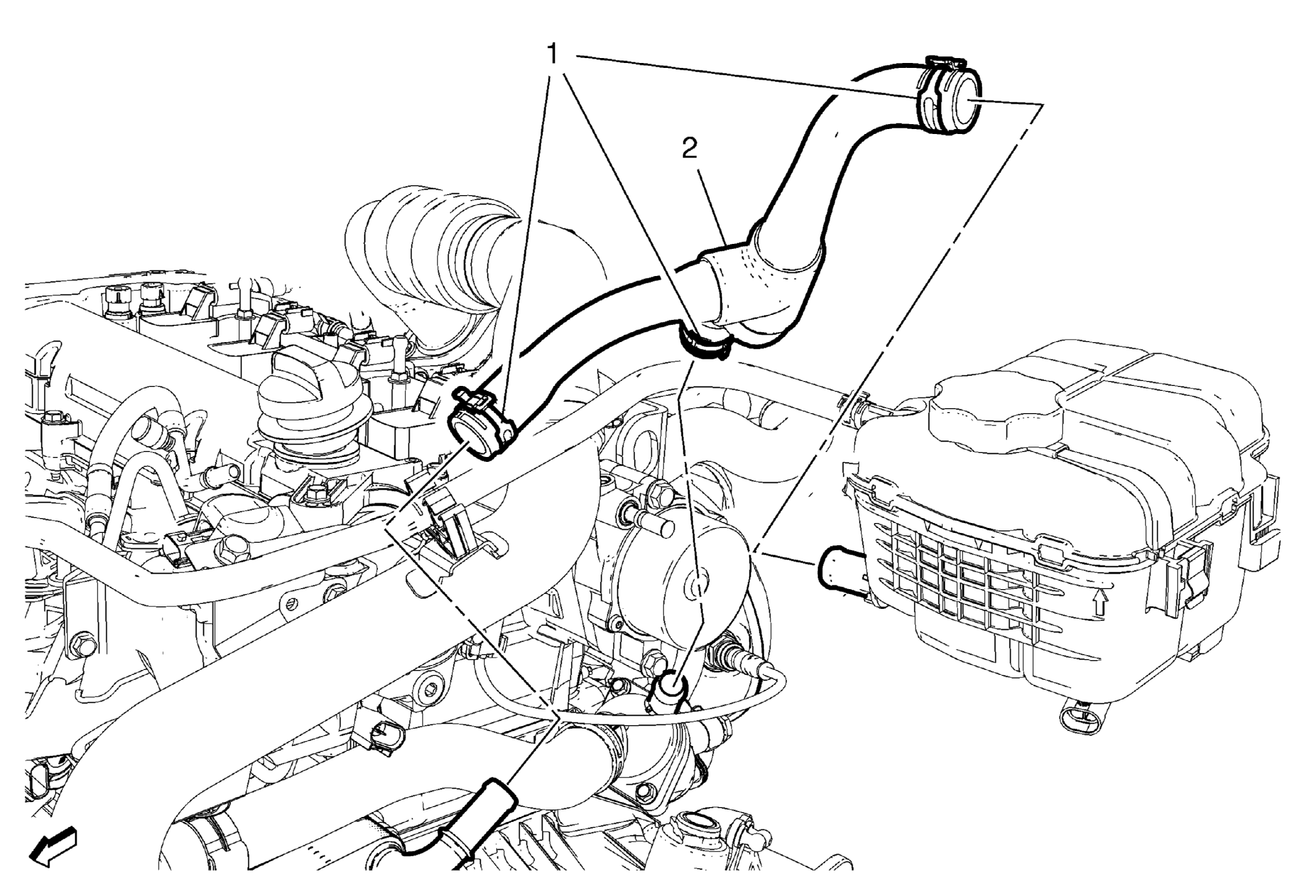

Fig 1: Radiator Surge Tank Engine Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (2.4L LEA) Cooling System Draining and Filling (2.0L LHU) . Remove the ECM from battery tray. Refer to Engine Control Module Replacement .
1	Radiator Surge Tank Engine Hose Clamp (Qty: 3)
2	Radiator Surge Tank Engine Hose

Callout

Component Name

Preliminary Procedures

Radiator Surge Tank Engine Hose Clamp (Qty: 3)

Radiator Surge Tank Engine Hose
