Horn Replacement

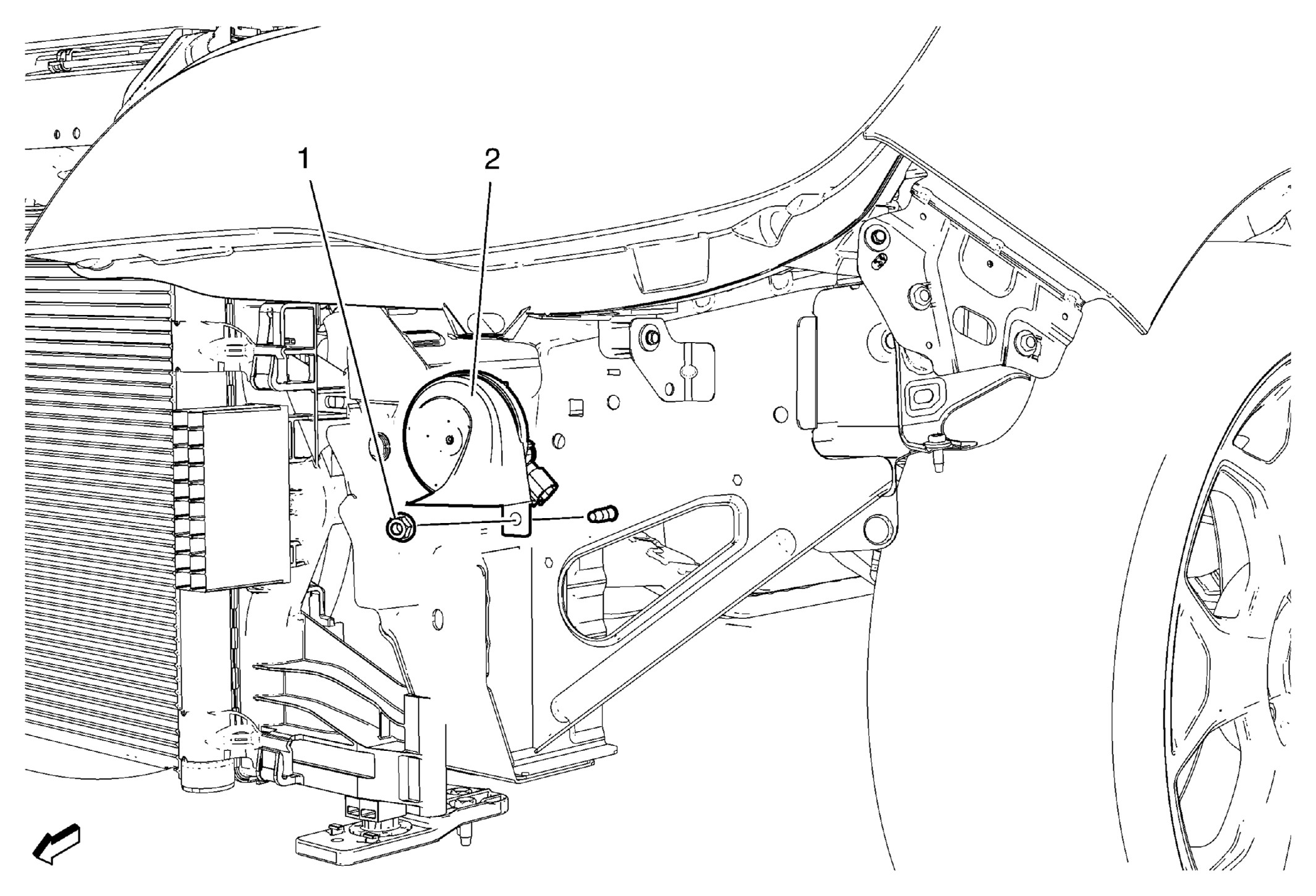

Fig 1: Horn

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Horn Nut CAUTION: Refer to Fastener Caution . Tighten 17 N.m (13 lb ft)
2	Horn Procedure Disconnect electrical connectors.
