Installation Procedure

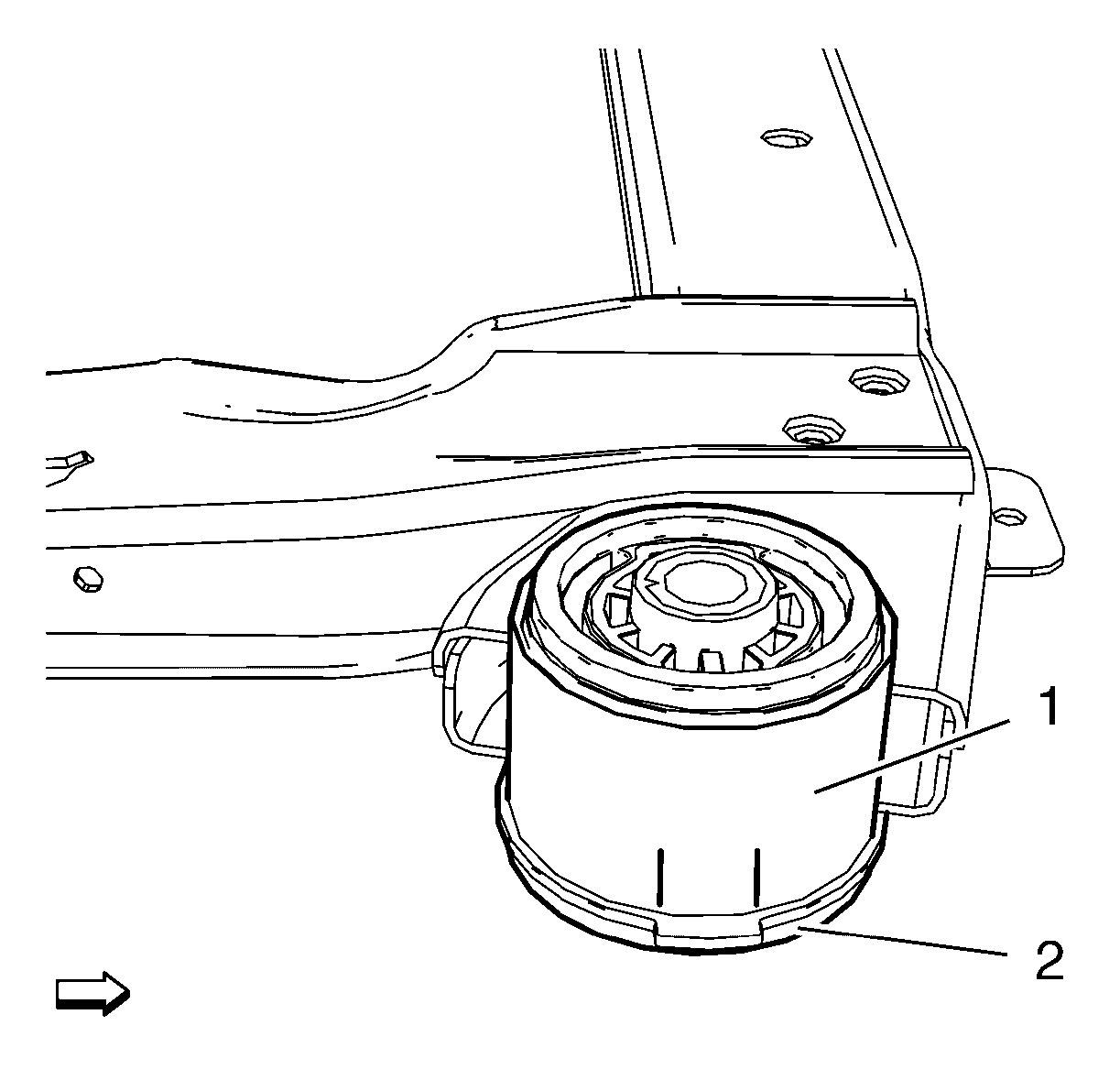

    Fig 1: View Of Frame And Insulator
    GM2190526Courtesy of GENERAL MOTORS COMPANY
  1. Install the following components on the drivetrain and front suspension frame:
    • CH-906-14  Adapter.
    • CH-906-42  Adapter.
    • CH-50342  Threaded Rod.
      • NOTE:

      Check marking of frame insulator.

    • Align the insulator tab with the alignment marks (1) on the frame.
  2. Carefully install the frame insulator in to the front suspension frame.
  3. Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement .
