Instrument Panel Compartment Replacement

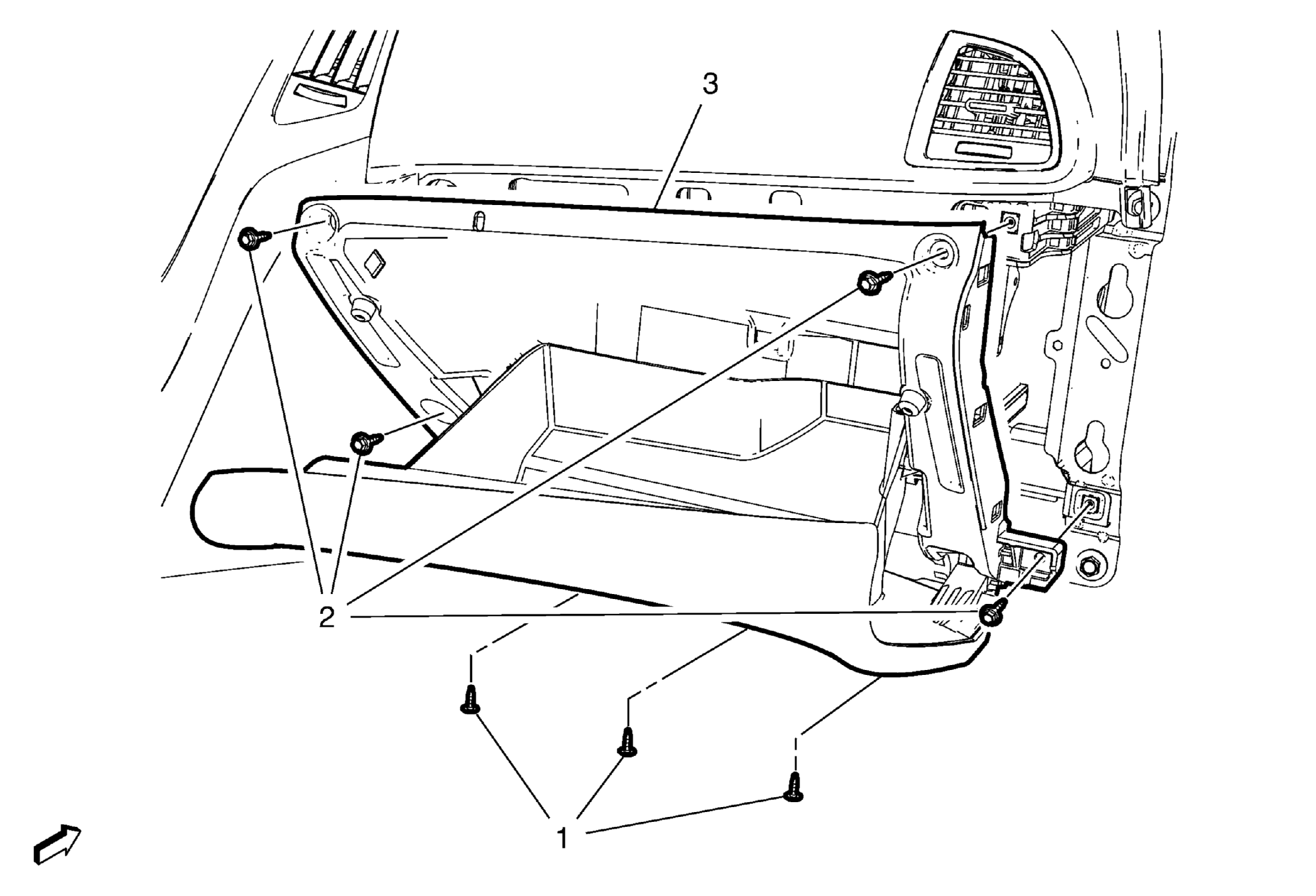

Fig 1: Instrument Panel Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint instrument panel lower module - passenger side. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side . Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side .
1	Instrument Panel Compartment Lower Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Compartment Fastener (Qty: 4)
3	Instrument Panel Compartment Procedure Disconnect the electrical connections.
