Q8 Control Solenoid Valve Assembly

GM3787896

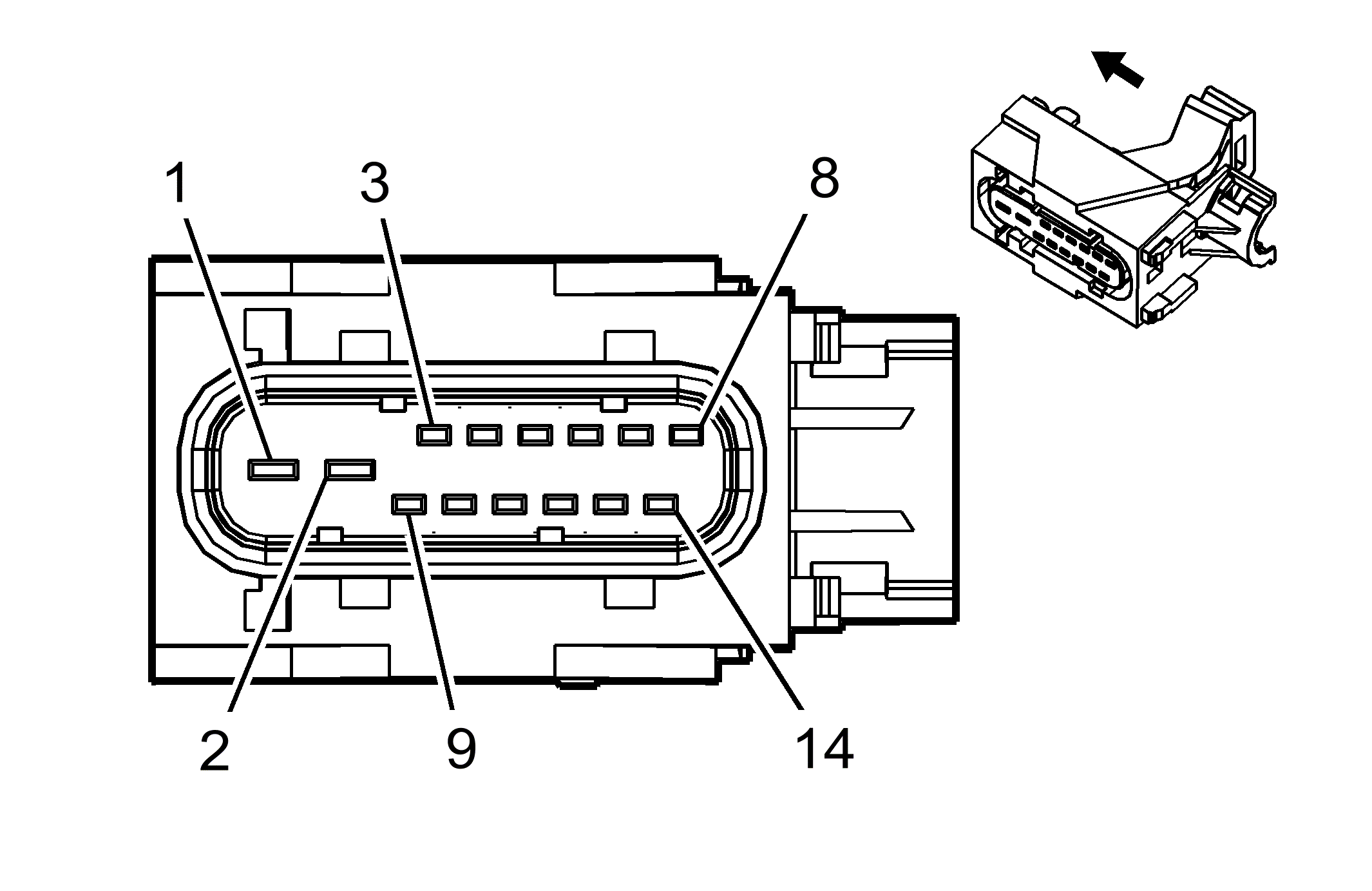

Connector Part Information

Harness Type: Engine
OEM Connector: 13522378
Service Connector: 13503939
Description: 14-Way F 150, 280 Series, Sealed (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575400	J-35616-14 (GN)	J-38125-553	Not Available	Not Available	Not Available	Not Available
II	13576356	J-35616-4A (PU)	J-38125-553	Not Available	Not Available	Not Available	Not Available
III	13576407	J-35616-4A (PU)	J-38125-553	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1.5 0.75	RD/VT RD/WH	340 140	Battery Positive Voltage	III II	MHK MH8
2	1.5 1	BK BK	150 450	Ground	III II	MHK MH8
3	0.75 0.5	WH/GY WH/GY	1786 1786	Transmission Park/Neutral Signal (1)	I	MHK MH8
4 - 5	-	-	-	Not Occupied	-	-
6	0.5 0.5	BU D-BU	2500 2500	High Speed GMLAN Serial Data (+) (1)	I	MHK MH8
7	0.5 0.5	BU D-BU	2500 2500	High Speed GMLAN Serial Data (+) (1)	I	MHK MH8
8	0.5 0.5	WH WH	2501 2501	High Speed GMLAN Serial Data (-) (1)	I	MHK MH8
9	-	-	-	Not Occupied	-	-
10	0.5	WH/D-BU	6311	Cruise/ETC/TCC Brake Signal	I	MH8
11	-	-	-	Not Occupied	-	-
12	0.5 0.75	VT/GY VT/BK	139 3	Run/Crank Ignition 1 Voltage	I	MHK MH8
13	0.5 0.5	VT/YE VT/YE	143 5985	Accessory Ignition Voltage Accessory Wakeup Serial Data	I	MHK MH8
14	0.5 0.5	WH WH	2501 2501	High Speed GMLAN Serial Data (-) (1)	I	MHK MH8

GM3787896

Connector Part Information

Harness Type: Engine
OEM Connector: 13522378
Service Connector: 13503939
Description: 14-Way F 150, 280 Series, Sealed (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575400	J-35616-14 (GN)	J-38125-553	15326267	Delphi 19	E	4
II	13575400	J-35616-14 (GN)	J-38125-553	Not Available	Not Available	Not Available	Not Available
III	13576407	J-35616-4A (PU)	J-38125-553	15304720	Delphi 19	4	5

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1.5	RD/VT	340	Battery Positive Voltage	III	MHK
2	1.5	BK	150	Ground	III	MHK
3	0.75	WH/GY	1786	Transmission Park/Neutral Signal (1)	II	MHK
4 - 5	-	-	-	Not Occupied	-	-
6	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	I	MHK
7	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	I	MHK
8	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	MHK
9 - 11	-	-	-	Not Occupied	-	-
12	0.5	VT/GY	139	Run/Crank Ignition 1 Voltage	I	MHK
13	0.5	VT/YE	143	Accessory Ignition Voltage	I	MHK
14	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	MHK
