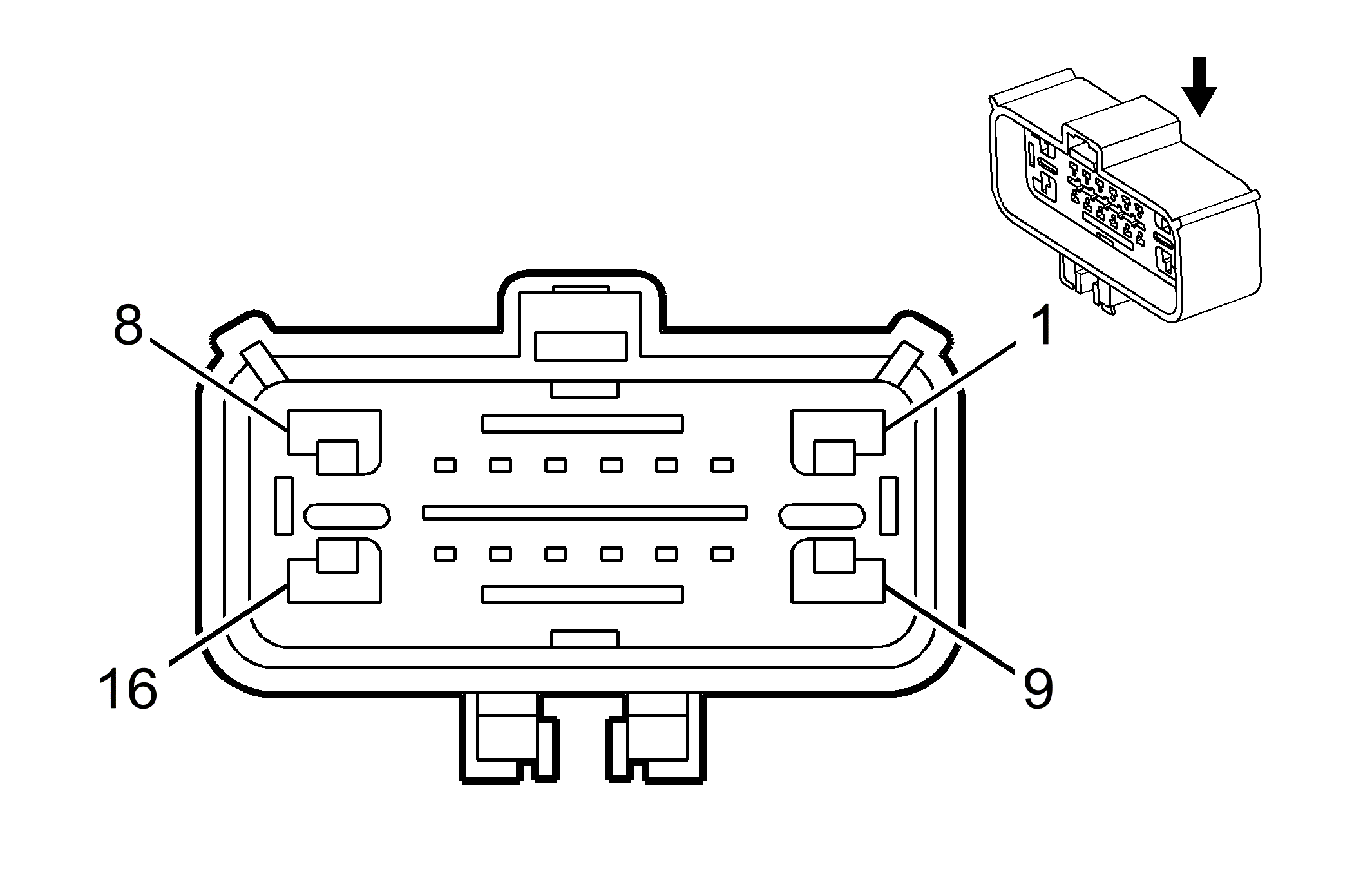

K111 Fuel Pump Driver Control Module
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13866748
- Service Connector: 19301192
- Description: 16-Way F 1.5, 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13505803 |
J-35616-35 (VT) |
J-38125-12A |
1326030-8 |
17 |
4 |
D |
| II |
13575808 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13575809 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD/GY |
1740 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
GY |
5660 |
Fuel Pump Controller Data Out Signal |
III |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
D-BU/BK |
7493 |
High Speed GMLAN Serial Data (+)(3) |
II |
- |
| 5 |
0.5 |
WH |
7494 |
High Speed GMLAN Serial Data (-)(3) |
II |
- |
| 6 |
0.75 |
PU/L-GN |
39 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 7 |
0.5 |
WH/D-BU |
5986 |
Serial Data Communication Enable |
II |
- |
| 8 |
2.5 |
GY |
120 |
Fuel Pump Supply Voltage |
I |
- |
| 9 |
2.5 |
BK |
2350 |
Ground |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
D-BU/BK |
7493 |
High Speed GMLAN Serial Data (+)(3) |
II |
- |
| 12 |
0.5 |
D-BU/BK |
7493 |
High Speed GMLAN Serial Data (+)(3) |
II |
- |
| 13 |
0.5 |
WH |
7494 |
High Speed GMLAN Serial Data (-)(3) |
II |
- |
| 14 |
0.5 |
WH |
7494 |
High Speed GMLAN Serial Data (-)(3) |
II |
- |
| 15 |
0.75 |
D-BU |
7444 |
Fuel System Control Module Shield |
II |
- |
| 16 |
2.5 |
BK/D-GN |
1580 |
Fuel Pump Low Reference |
I |
- |
