Passive Entry Power, Ground, Data Communications

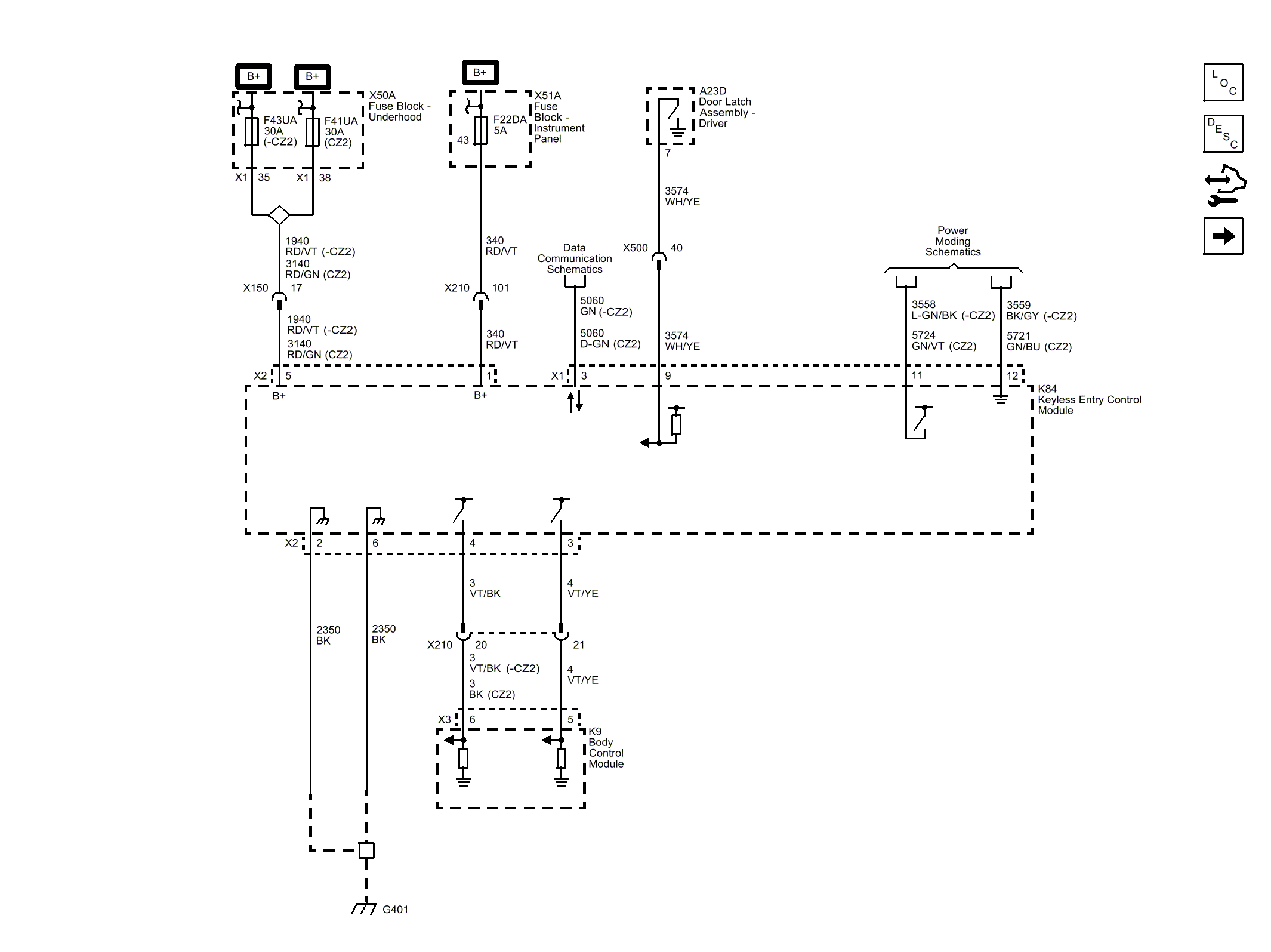

Fig 1: Passive Entry Power, Ground, Data Communications

GM3770199

Courtesy of GENERAL MOTORS COMPANY
