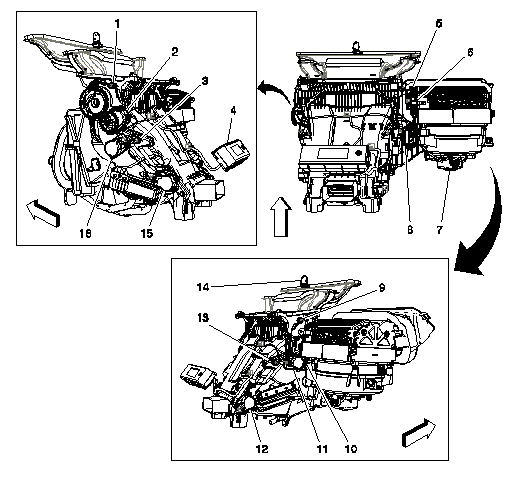

HVAC Module Components
HVAC Module Components
| Items |
|---|
| 1: B7H Air Temperature Sensor - Duct Left Upper B7H Air Temperature Sensor - Duct Left Upper |
| 2: M37 Mode Door Actuator M37 Mode Door Actuator |
| 3: B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower |
| 4: K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2 |
| 5: M4 Air Inlet Door Actuator M4 Air Inlet Door Actuator |
| 6: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 7: M8 Blower Motor M8 Blower Motor |
| 8: K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 9: B7J Air Temperature Sensor - Duct Right Upper B7J Air Temperature Sensor - Duct Right Upper |
| 10: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 11: M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 12: M37B Mode Door Actuator - Auxiliary (CJ4) M37B Mode Door Actuator - Auxiliary (CJ4) |
| 13: B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower |
| 14: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 15: M6B Air Temperature Door Actuator - Auxiliary (CJ4) |
| 16: M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left |
