Installation Procedure

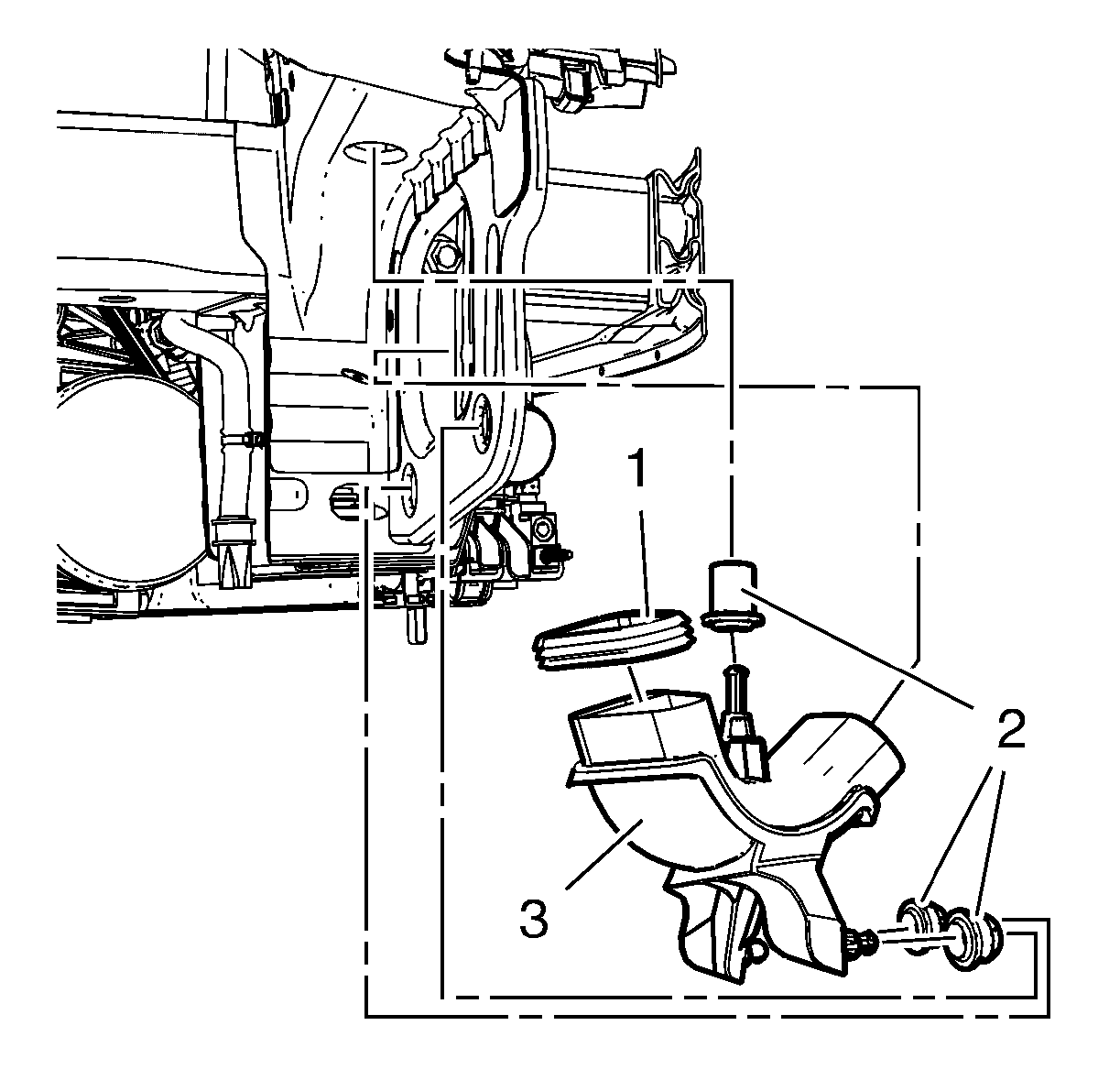

    Fig 1: Intake Air Duct Resonator & Components
    GM2028355Courtesy of GENERAL MOTORS COMPANY
  1. Install the air duct resonator sealant (1).
  2. Install the 3 air duct resonator insulator (2).
  3. Install the intake air duct resonator (3).
  4. Install the intake air duct. Refer to Intake Air Duct Replacement .

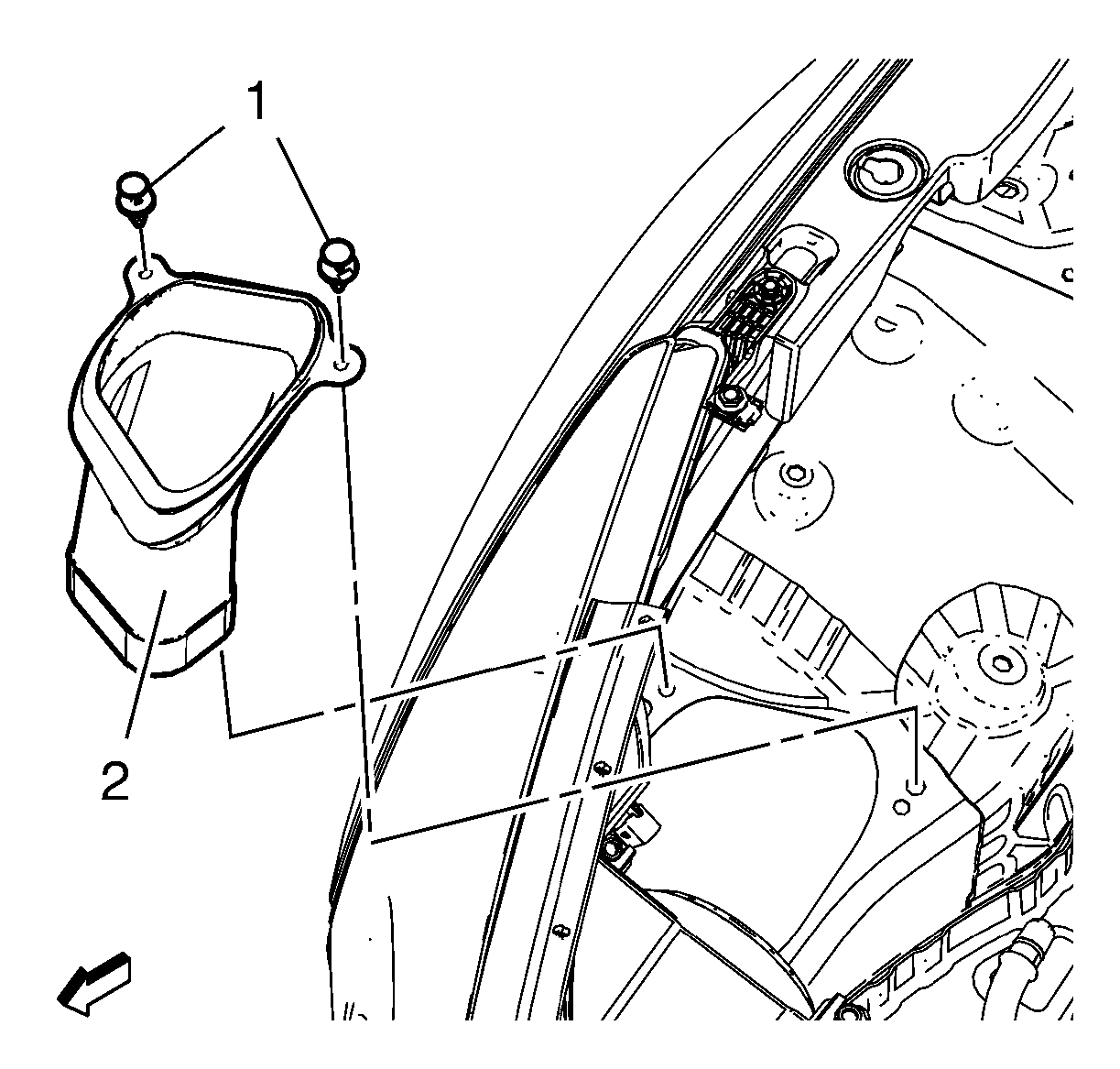

    5. Fig 2: Rear Intake Air Duct & Retainers
    GM2028354Courtesy of GENERAL MOTORS COMPANY
  5. Install the rear intake air duct retainer (1).
  6. Install the rear intake air duct (2).
  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
