Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

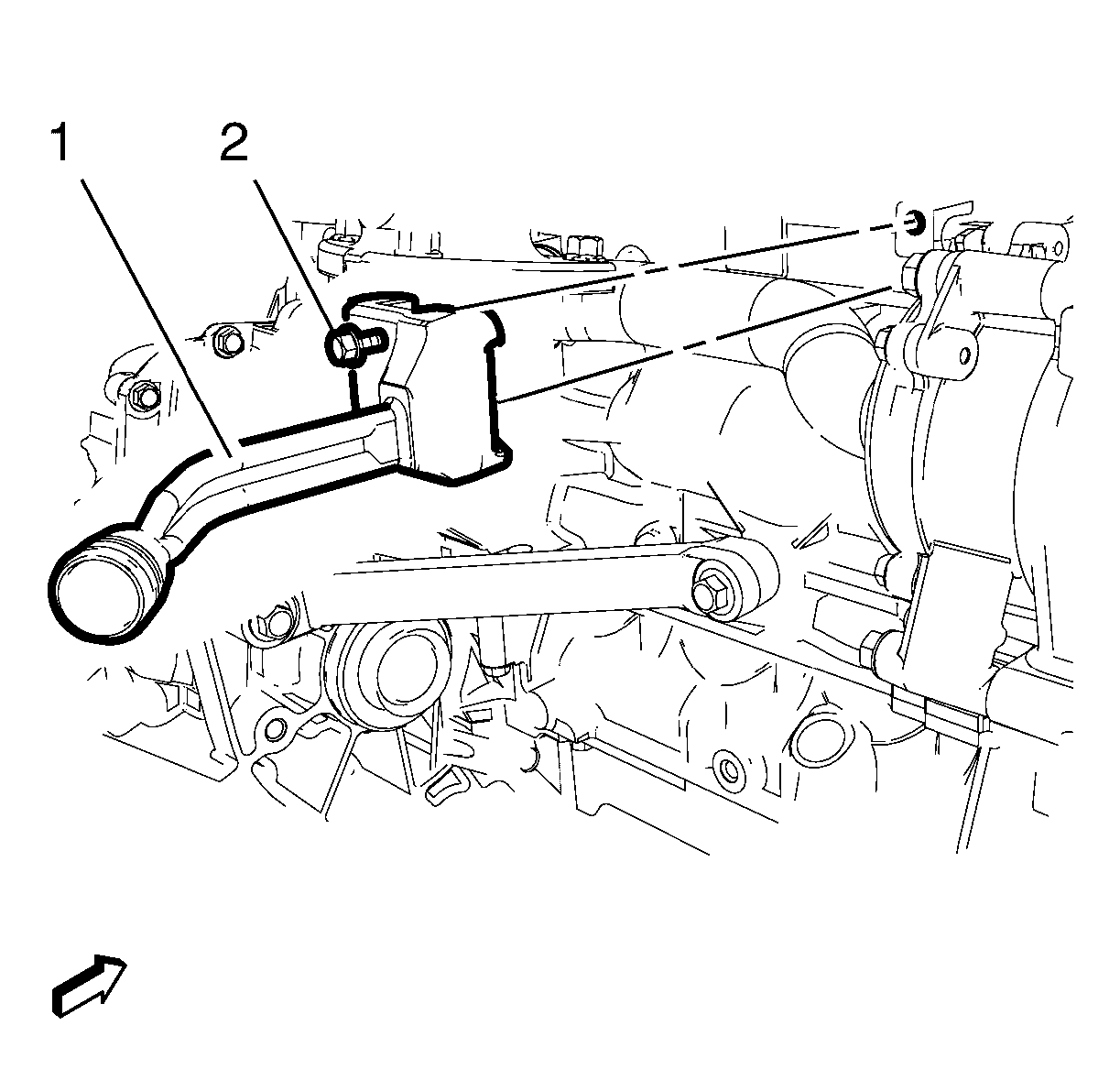

    Fig 1: Engine Coolant Heater & Bolt
    GM2577136Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the engine coolant heater (1) and the engine coolant heater bolt (2) and tighten to 10 N.m (89 lb in).
  2. Connect electrical connection.
  3. Lower the vehicle.
