Windshield Wiper and Washer Switch Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

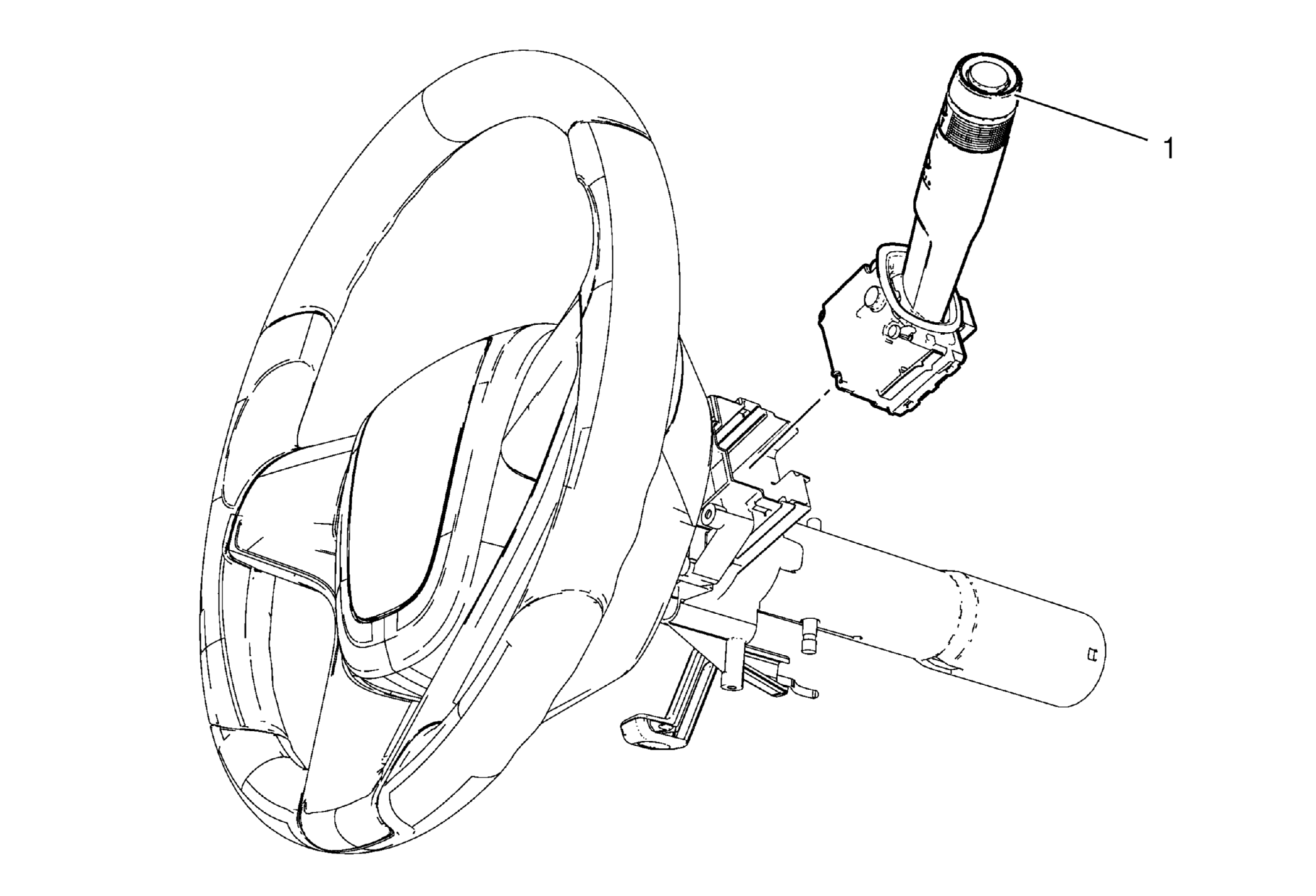

Fig 1: Windshield Wiper And Washer Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1	Windshield Wiper and Washer Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to remove the windshield wiper and washer switch.

Callout

Component Name

Preliminary Procedure
Remove steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .

Windshield Wiper and Washer Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to remove the windshield wiper and washer switch.
