Windshield Washer Solvent Container Hose Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

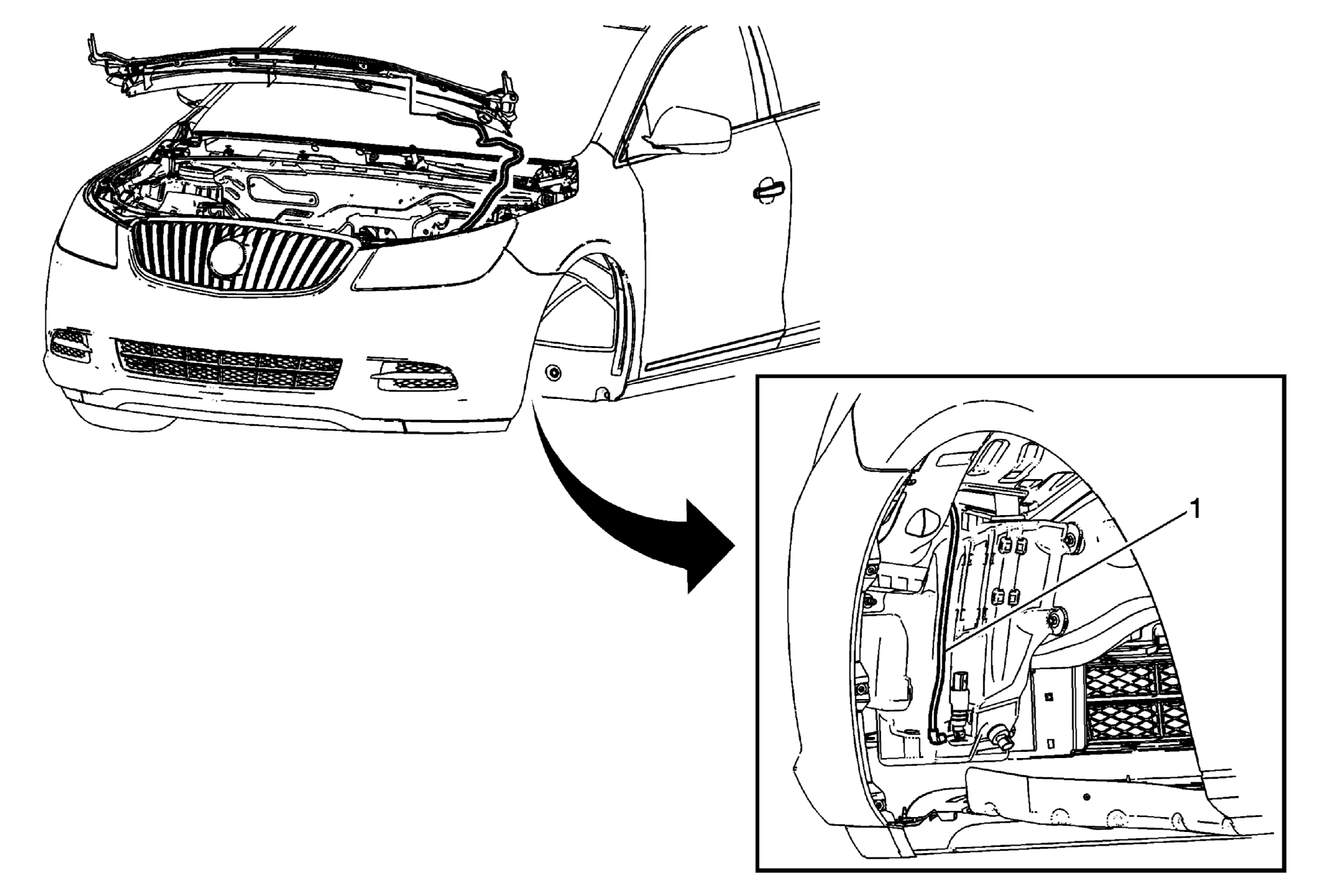

Fig 1: Windshield Washer Solvent Container Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Place a clean suitable container under the windshield washer solvent container to contain any loss windshield washer solvent. Disconnect the windshield washer solvent container hose from the windshield washer pump. Disengage the washer hose from the windshield washer solvent container. Pull the washer hose up through the front wheelhouse, front panel. Remove the washer hose from the electrical harness conduit. Disconnect the washer container hose from the "T" connection at the windshield washer nozzle hose assembly in the plenum. Remove the windshield washer solvent container hose from the vehicle.
1	Windshield Washer Solvent Container Hose Assembly

Callout

Component Name

Preliminary Procedures

Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Place a clean suitable container under the windshield washer solvent container to contain any loss windshield washer solvent.
Disconnect the windshield washer solvent container hose from the windshield washer pump.
Disengage the washer hose from the windshield washer solvent container.
Pull the washer hose up through the front wheelhouse, front panel.
Remove the washer hose from the electrical harness conduit.
Disconnect the washer container hose from the "T" connection at the windshield washer nozzle hose assembly in the plenum.
Remove the windshield washer solvent container hose from the vehicle.

Windshield Washer Solvent Container Hose Assembly
