Shift Shaft Components

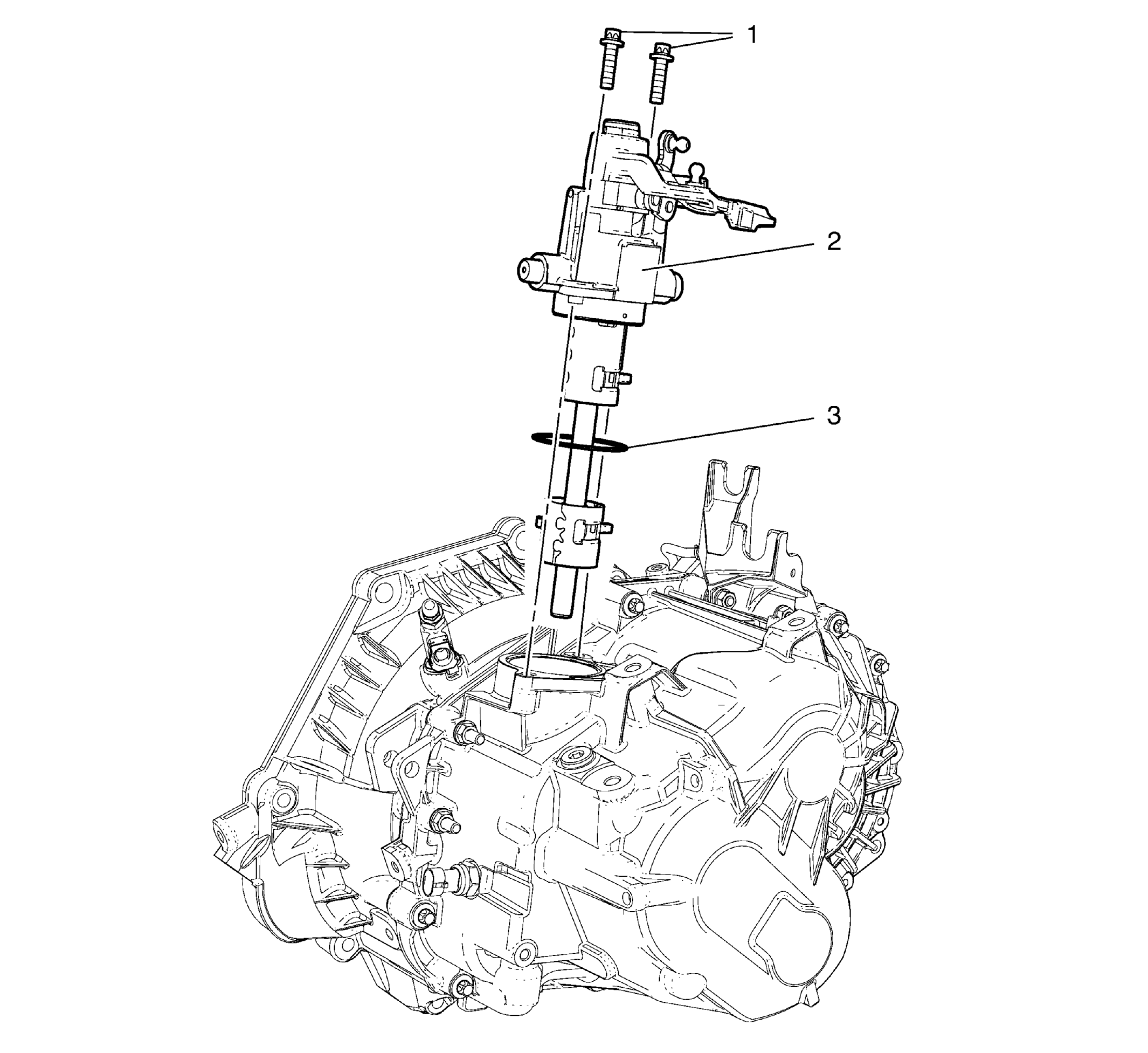

Fig 1: Shift Shaft Components

GM2190475

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Shift Shaft Bolts (Qty: 2)
2	Shift Shaft
3	Shift Shaft O-Ring
