B118B Windshield Washer Fluid Level Switch

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

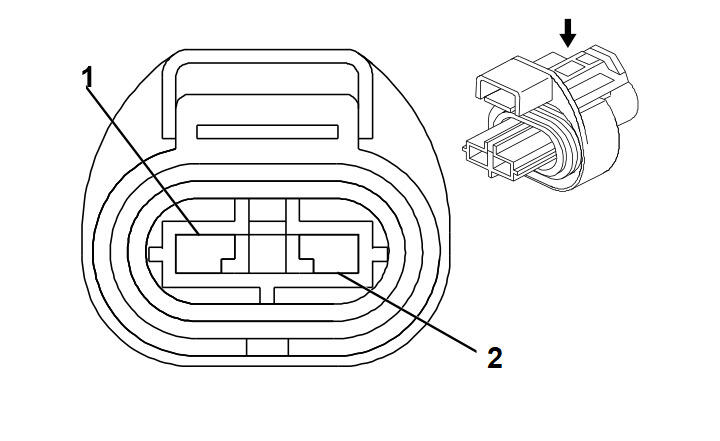

GM1898384
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 1452680-1
  • Service Connector: 13314083
  • Description: 2-Way F 1.2 Timer Series, Sealed (BK)
 Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13314083
  • Release Tool: J-38125-560
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 964274-2/16
  • Core/Insulation Crimp: E/1
B118B Windshield Washer Fluid Level Switch

Pin Size Color Circuit Function Option
1 0.5 VT 185 Low Washer Fluid Indicator Control -
2 0.5 BK 1350 Ground -
