Heater Core Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

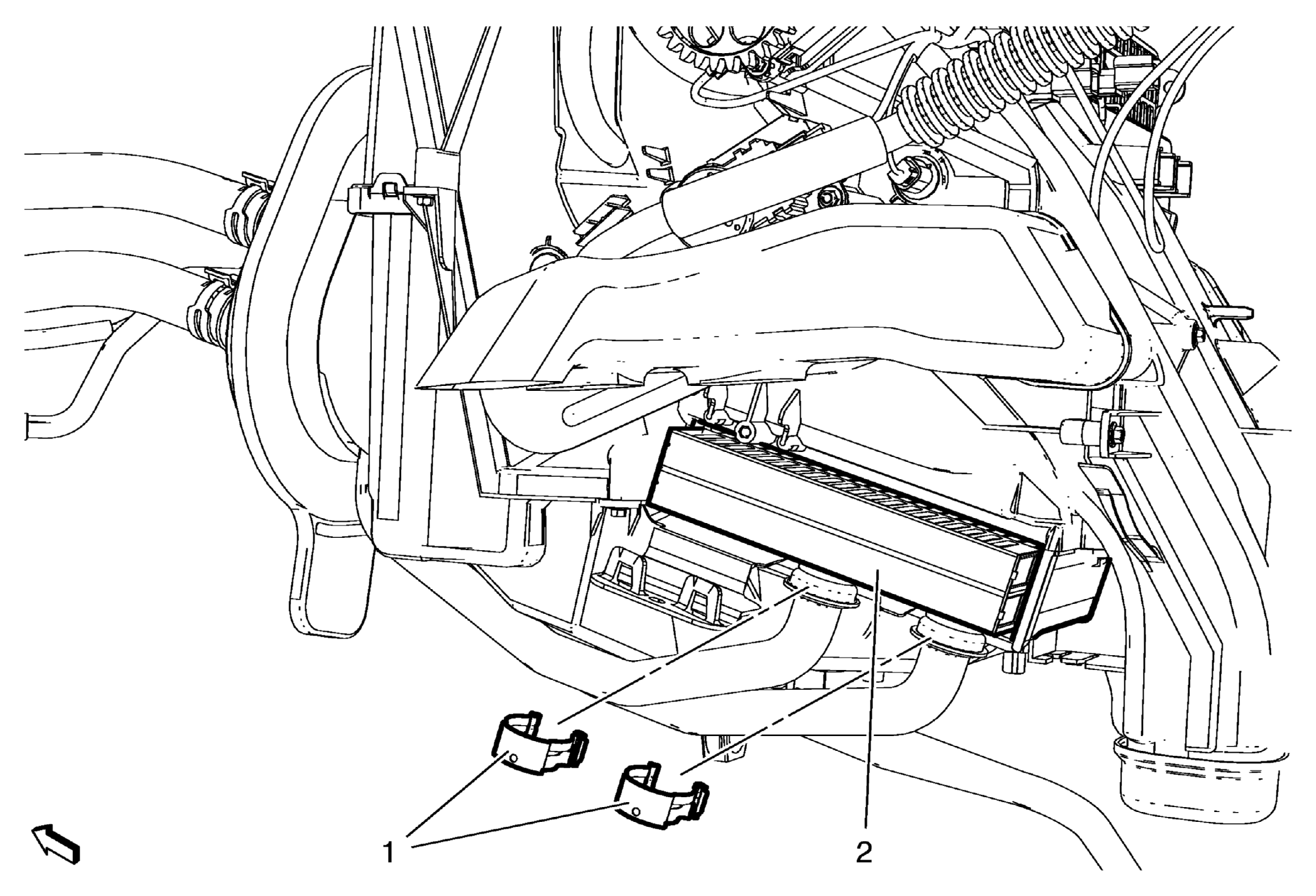

Fig 1: Heater Core & Clamps

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove heater core cover. Refer to Heater Core Cover Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) . Place protective coverings and appropriate drain pans below heater core to protect the carpeting.
1	Heater Core Clamp (Qty: 2)
2	Heater Core Procedure Remove the inlet and outlet pipes from the core and reposition enough to allow the heater core to clear. Change sealing washers.

Callout

Component Name

Preliminary Procedures

Remove heater core cover. Refer to Heater Core Cover Replacement .
Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Place protective coverings and appropriate drain pans below heater core to protect the carpeting.

Heater Core Clamp (Qty: 2)

Heater Core

Procedure

Remove the inlet and outlet pipes from the core and reposition enough to allow the heater core to clear.
Change sealing washers.
